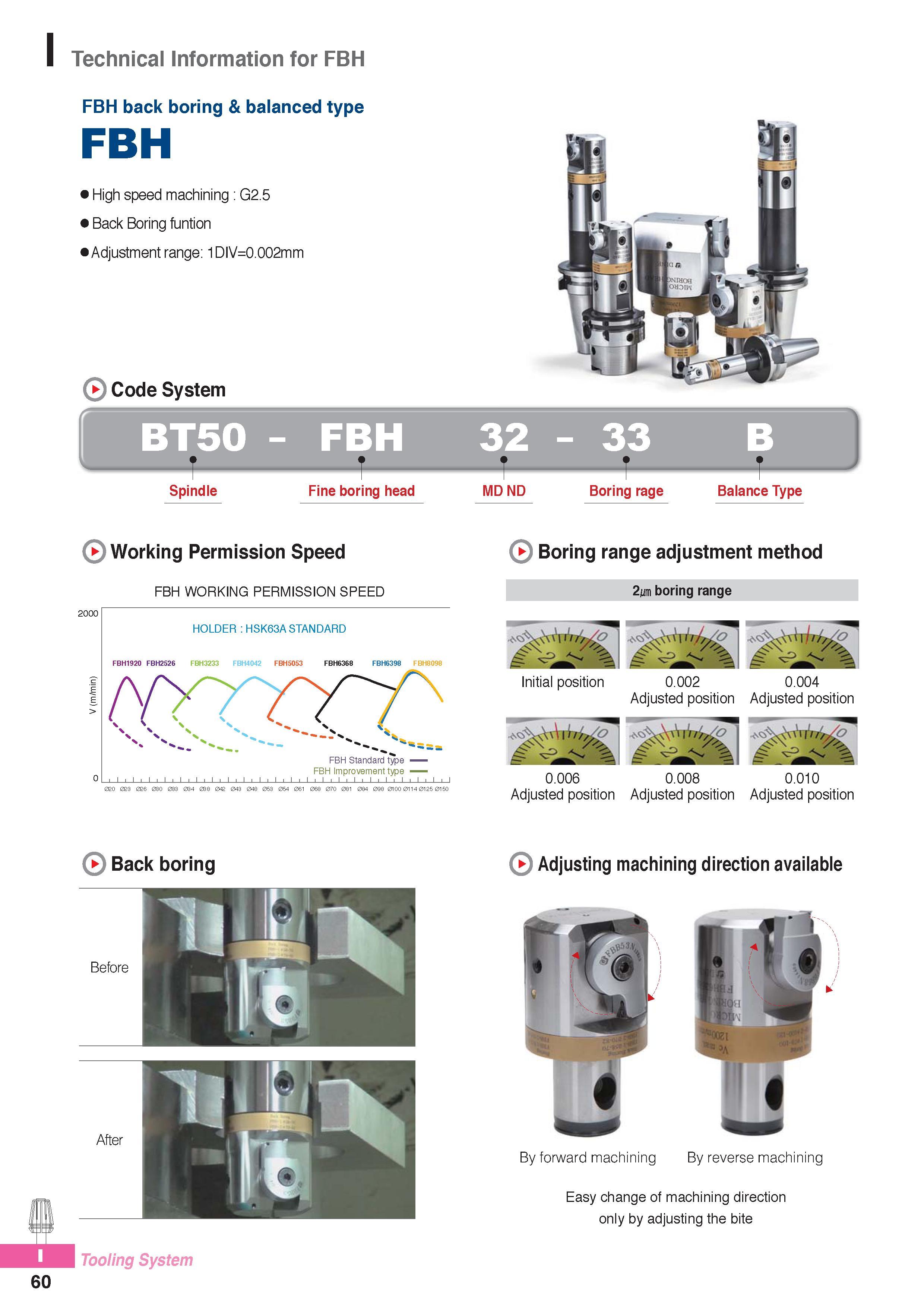

Technical Information for FBH FBH back boring & balanced type FBH High speed machining G2.5 Back Boring funtion Adjustment range: 1DIV=0.002mm Code System BT50 - FBH 32 - 33 Spindle Fine boring head MD ND Boring rage Balance Type Working Permission Speed FBH WORKING PERMISSION SPEED Boring range adjustment method 2ym boring range Initial position 0.002 0.004 Adjusted position Adjusted position 0.006 0.008 0.010 Adjusted position Adjusted position Adjusted position Back boring Adjusting machining direction available Tooling System By forward machining By reverse machining Easy change of machining direction only by adjusting the bite 60
