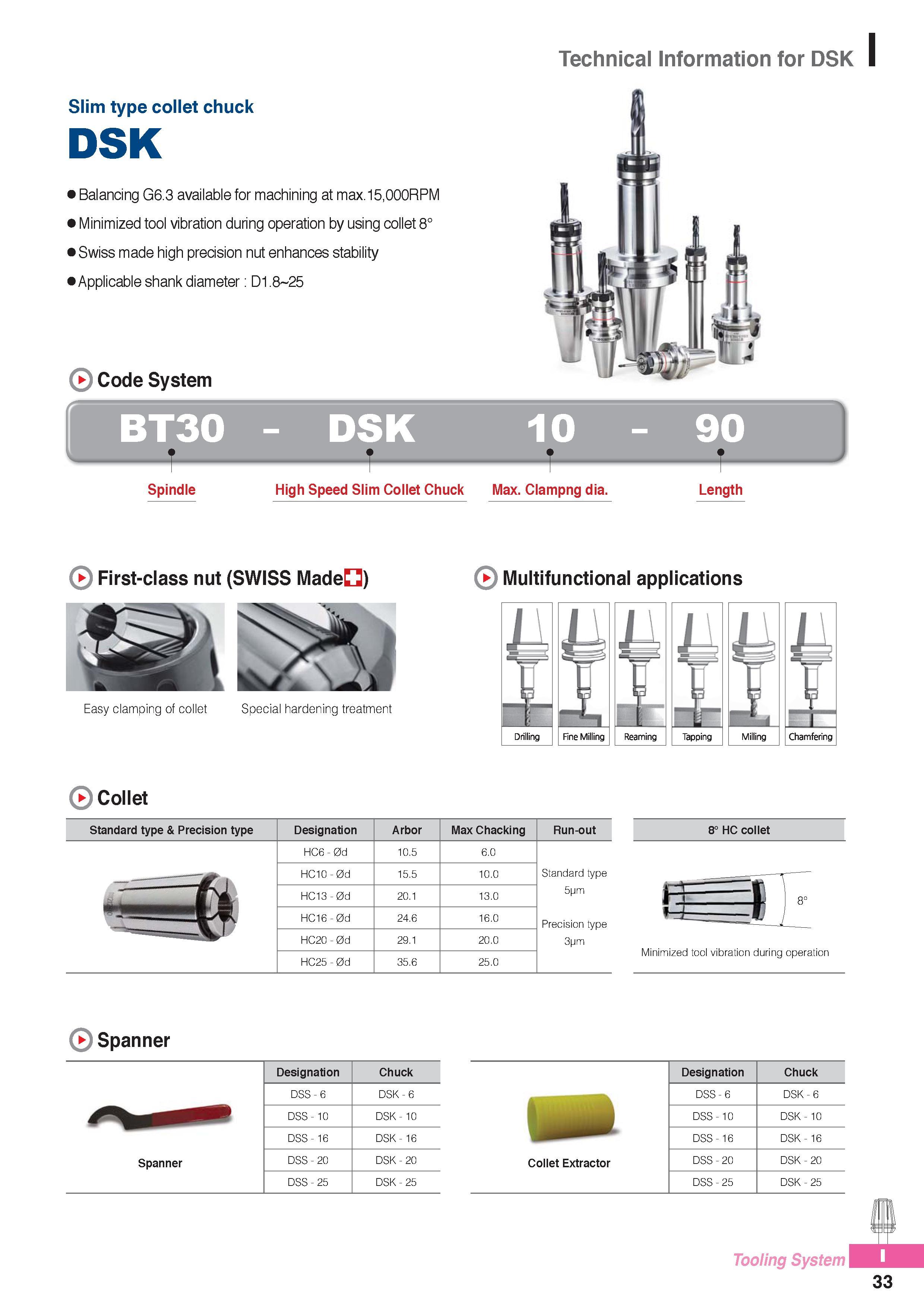

Technical Information for DSK Slim type collet chuck DSK Balancing G6.3 available for machining at max.15,000RPM Minimized tool vibration during operation by using collet 8° Swiss made high precision nut enhances stability Applicable shank diameter D1.8 25 Code System BT30 - DSK 10 - 90 Spindle High Speed Slim Collet Chuck Max. Clampng dia. Length First-class nut (SWISS Made ) Multifunctional applications Collet Standard type & Precision type Designation Arbor Max Chacking Run-out HC6-0d 10.5 6.0 HC10 - 0d 15.5 10.0 Standard type Jmrn HC13 - 0d 20.1 13.0 5pm 11 j” ity HC16 - 0d 24.6 16.0 Precision type HC20 - 0d 29.1 20.0 3pm HC25 - 0d 35.6 25.0 8° HC collet Minimized tool vibration during operation Spanner Designation Chuck Designation Chuck DSS - 6 DSK-6 DSS - 6 DSK - 6 DSS- 10 DSK 10 MB DSS - 10 DSK - 10 Spanner DSS- 16 DSK-16 DSS - 16 DSK - 16 DSS - 20 DSK 20 Collet Extractor DSS - 20 DSK - 20 DSS - 25 DSK - 25 DSS - 25 DSK - 25 Tooling System 33
