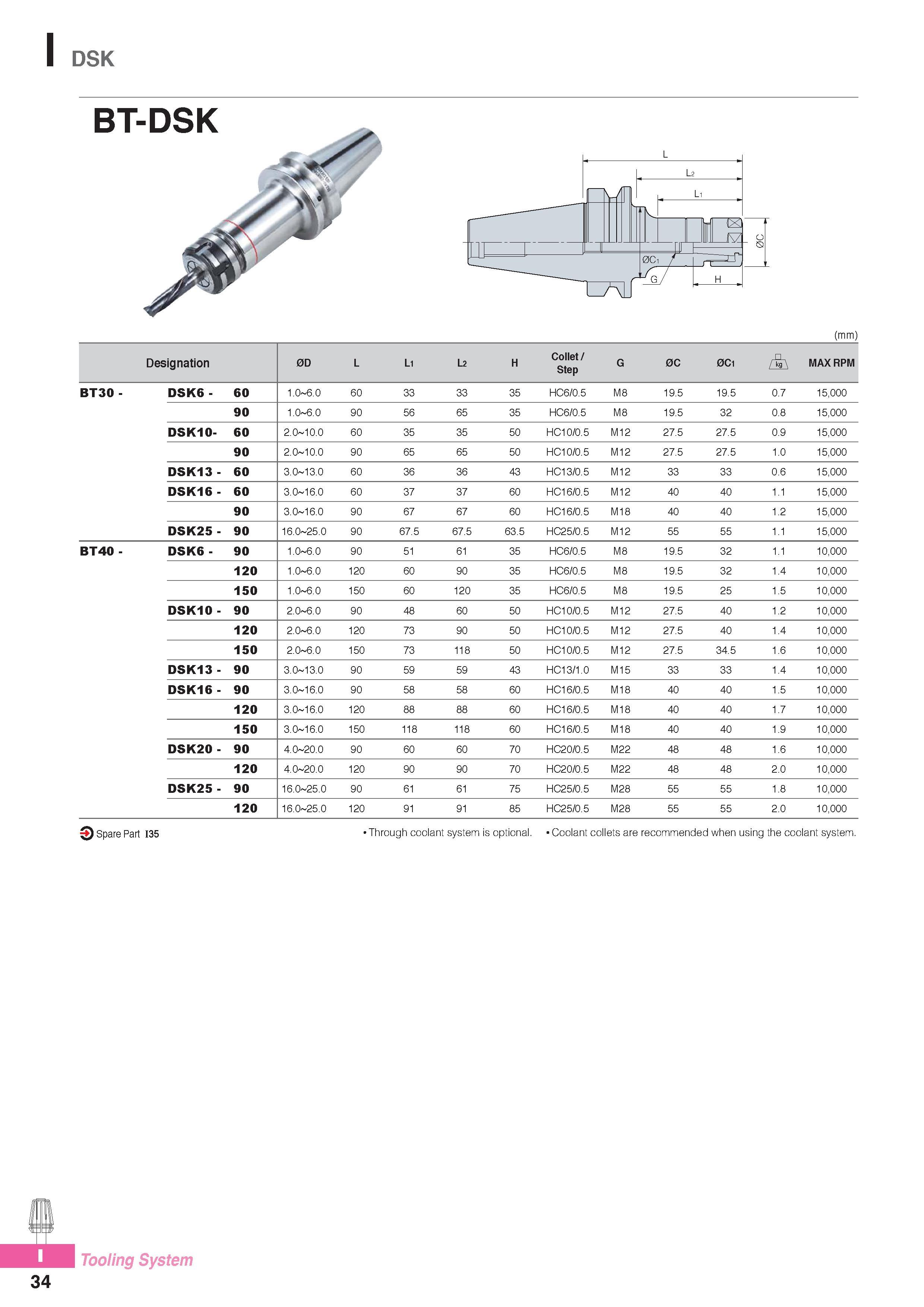

I DSK BT-DSK (mm) Designation 0D L Li L2 H Collet / Step G 0C 0Ci L MAX RPM BT30 - DSK6 - 60 1.0 6.0 60 33 33 35 HC6/0.5 M8 19.5 19.5 0.7 15,000 90 1.0 6.0 90 56 65 35 HC6/0.5 M8 19.5 32 0.8 15,000 DSK10- 60 2.0 10.0 60 35 35 50 HC10/0.5 M12 27.5 27.5 0.9 15,000 90 2.0 10.0 90 65 65 50 HC10/0.5 M12 27.5 27.5 1.0 15,000 DSK13- 60 3.0 13.0 60 36 36 43 HC13/0.5 M12 33 33 0.6 15,000 DSK16- 60 3.0 16.0 60 37 37 60 HC16/0.5 M12 40 40 1.1 15,000 90 3.0 16.0 90 67 67 60 HC16/0.5 M18 40 40 1.2 15,000 DSK25- 90 16.0 25.0 90 67.5 67.5 63.5 HC25/0.5 M12 55 55 1.1 15,000 BT40 - DSK6 - 90 1.0 6.0 90 51 61 35 HC6/0.5 M8 19.5 32 1.1 10,000 120 1.0 6.0 120 60 90 35 HC6/0.5 M8 19.5 32 1.4 10,000 150 1.0 6.0 150 60 120 35 HC6/0.5 M8 19.5 25 1.5 10,000 DSK10- 90 2.0 6.0 90 48 60 50 HC10/0.5 M12 27.5 40 1.2 10,000 120 2.0 6.0 120 73 90 50 HC10/0.5 M12 27.5 40 1.4 10,000 150 2.0 6.0 150 73 118 50 HC10/0.5 M12 27.5 34.5 1.6 10,000 DSK13- 90 3.0 13.0 90 59 59 43 HC13/1.0 M15 33 33 1.4 10,000 DSK16- 90 3.0 16.0 90 58 58 60 HC16/0.5 M18 40 40 1.5 10,000 120 3.0 16.0 120 88 88 60 HC16/0.5 M18 40 40 1.7 10,000 150 3.0 16.0 150 118 118 60 HC16/0.5 M18 40 40 1.9 10,000 DSK20- 90 4.0 20.0 90 60 60 70 HC20/0.5 M22 48 48 1.6 10,000 120 4.0 20.0 120 90 90 70 HC20/0.5 M22 48 48 2.0 10,000 DSK25- 90 16.0 25.0 90 61 61 75 HC25/0.5 M28 55 55 1.8 10,000 120 16.0 25.0 120 91 91 85 HC25/0.5 M28 55 55 2.0 10,000 3 Spare Part I35 Through coolant system is optional. Coolant collets are recommended when using the coolant system. Tooling System 34
