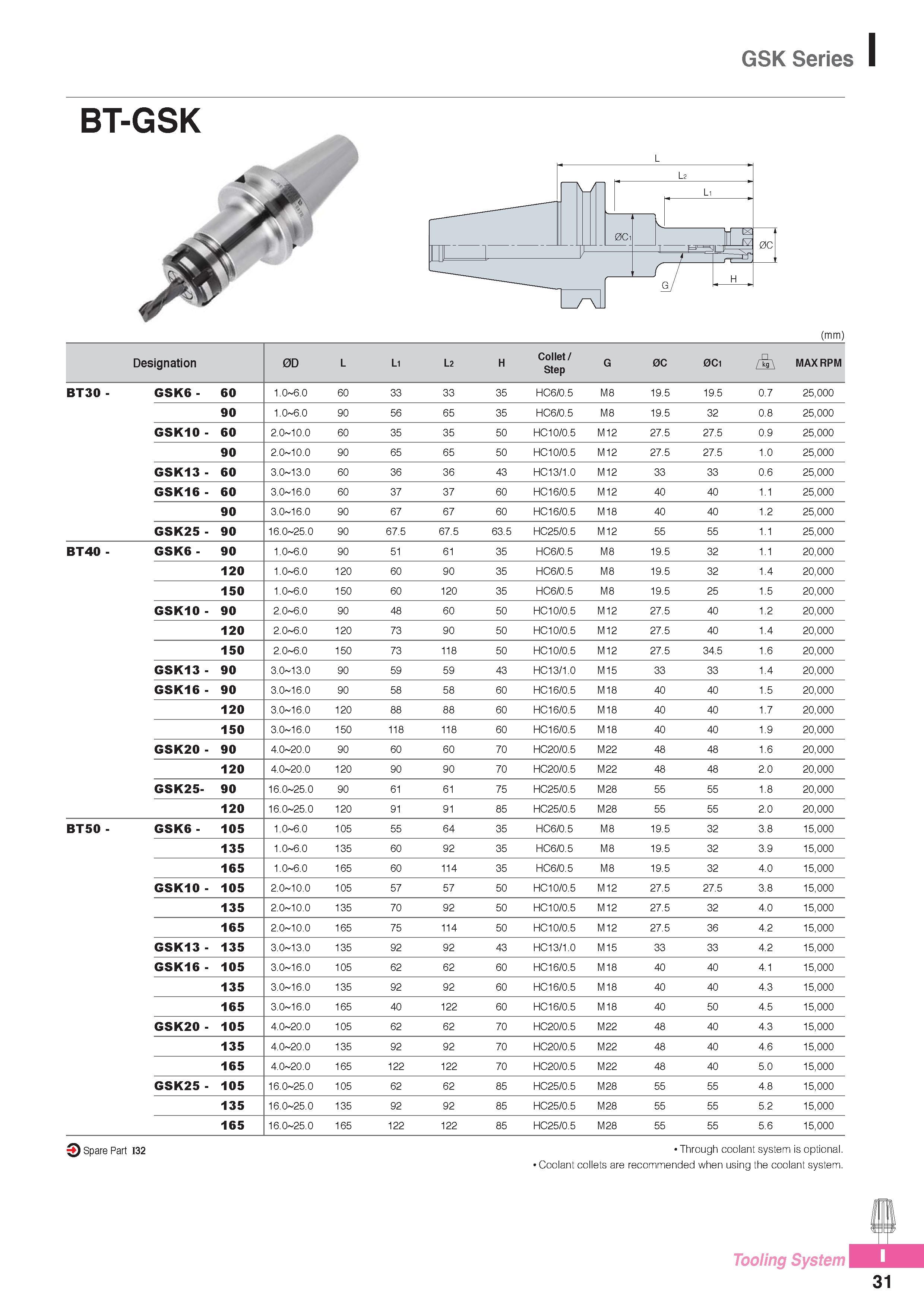

GSK Series BT-GSK (mm) Designation 0D L Li l_2 H Collet / Step G 0C 0C1 MAX RPM BT30 - GSK6 - 60 1.0-6.0 60 33 33 35 HC6/0.5 M8 19.5 19.5 0.7 25,000 90 1.0 6.0 90 56 65 35 HC6/0.5 M8 19.5 32 0.8 25,000 GSK10- 60 2.0 10.0 60 35 35 50 HC10/0.5 M12 27.5 27.5 0.9 25,000 90 2.0 10.0 90 65 65 50 HC10/0.5 M12 27.5 27.5 1.0 25,000 GSK13- 60 3.0 13.0 60 36 36 43 HC13/1.0 M12 33 33 0.6 25,000 GSK16- 60 3.0 16.0 60 37 37 60 HC16/0.5 M12 40 40 1.1 25,000 90 3.0 16.0 90 67 67 60 HC16/0.5 M18 40 40 1.2 25,000 GSK25- 90 16.0 25.0 90 67.5 67.5 63.5 HC25/0.5 M12 55 55 1.1 25,000 BT40 - GSK6 - 90 1.0 6.0 90 51 61 35 HC6/0.5 M8 19.5 32 1.1 20,000 120 1.0 6.0 120 60 90 35 HC6/0.5 M8 19.5 32 1.4 20,000 150 1.0 6.0 150 60 120 35 HC6/0.5 M8 19.5 25 1.5 20,000 GSK10- 90 2.0 6.0 90 48 60 50 HC10/0.5 M12 27.5 40 1.2 20,000 120 2.0 6.0 120 73 90 50 HC10/0.5 M12 27.5 40 1.4 20,000 150 2.0 6.0 150 73 118 50 HC10/0.5 M12 27.5 34.5 1.6 20,000 GSK13- 90 3.0 13.0 90 59 59 43 HC13/1.0 M15 33 33 1.4 20,000 GSK16- 90 3.0 16.0 90 58 58 60 HC16/0.5 M18 40 40 1.5 20,000 120 3.0 16.0 120 88 88 60 HC16/0.5 M18 40 40 1.7 20,000 150 3.0 16.0 150 118 118 60 HC16/0.5 M18 40 40 1.9 20,000 GSK20- 90 4.0 20.0 90 60 60 70 HC20/0.5 M22 48 48 1.6 20,000 120 4.0 20.0 120 90 90 70 HC20/0.5 M22 48 48 2.0 20,000 GSK25- 90 16.0 25.0 90 61 61 75 HC25/0.5 M28 55 55 1.8 20,000 120 16.0 25.0 120 91 91 85 HC25/0.5 M28 55 55 2.0 20,000 BT50 - GSK6 - 105 1.0 6.0 105 55 64 35 HC6/0.5 M8 19.5 32 3.8 15,000 135 1.0 6.0 135 60 92 35 HC6/0.5 M8 19.5 32 3.9 15,000 165 1.0 6.0 165 60 114 35 HC6/0.5 M8 19.5 32 4.0 15,000 GSK10- 105 2.0 10.0 105 57 57 50 HC10/0.5 M12 27.5 27.5 3.8 15,000 135 2.0 10.0 135 70 92 50 HC10/0.5 M12 27.5 32 4.0 15,000 165 2.0 10.0 165 75 114 50 HC10/0.5 M12 27.5 36 4.2 15,000 GSK13- 135 3.0 13.0 135 92 92 43 HC13/1.0 M15 33 33 4.2 15,000 GSK16- 105 3.0 16.0 105 62 62 60 HC16/0.5 M18 40 40 4.1 15,000 135 3.0 16.0 135 92 92 60 HC16/0.5 M18 40 40 4.3 15,000 165 3.0 16.0 165 40 122 60 HC16/0.5 M18 40 50 4.5 15,000 GSK20- 105 4.0 20.0 105 62 62 70 HC20/0.5 M22 48 40 4.3 15,000 135 4.0 20.0 135 92 92 70 HC20/0.5 M22 48 40 4.6 15,000 165 4.0 20.0 165 122 122 70 HC20/0.5 M22 48 40 5.0 15,000 GSK25- 105 16.0 25.0 105 62 62 85 HC25/0.5 M28 55 55 4.8 15,000 135 16.0 25.0 135 92 92 85 HC25/0.5 M28 55 55 5.2 15,000 165 16.0 25.0 165 122 122 85 HC25/0.5 M28 55 55 5.6 15,000 Spare Part I32 Through coolant system is optional. Coolant collets are recommended when using the coolant system. Tooling System 31
