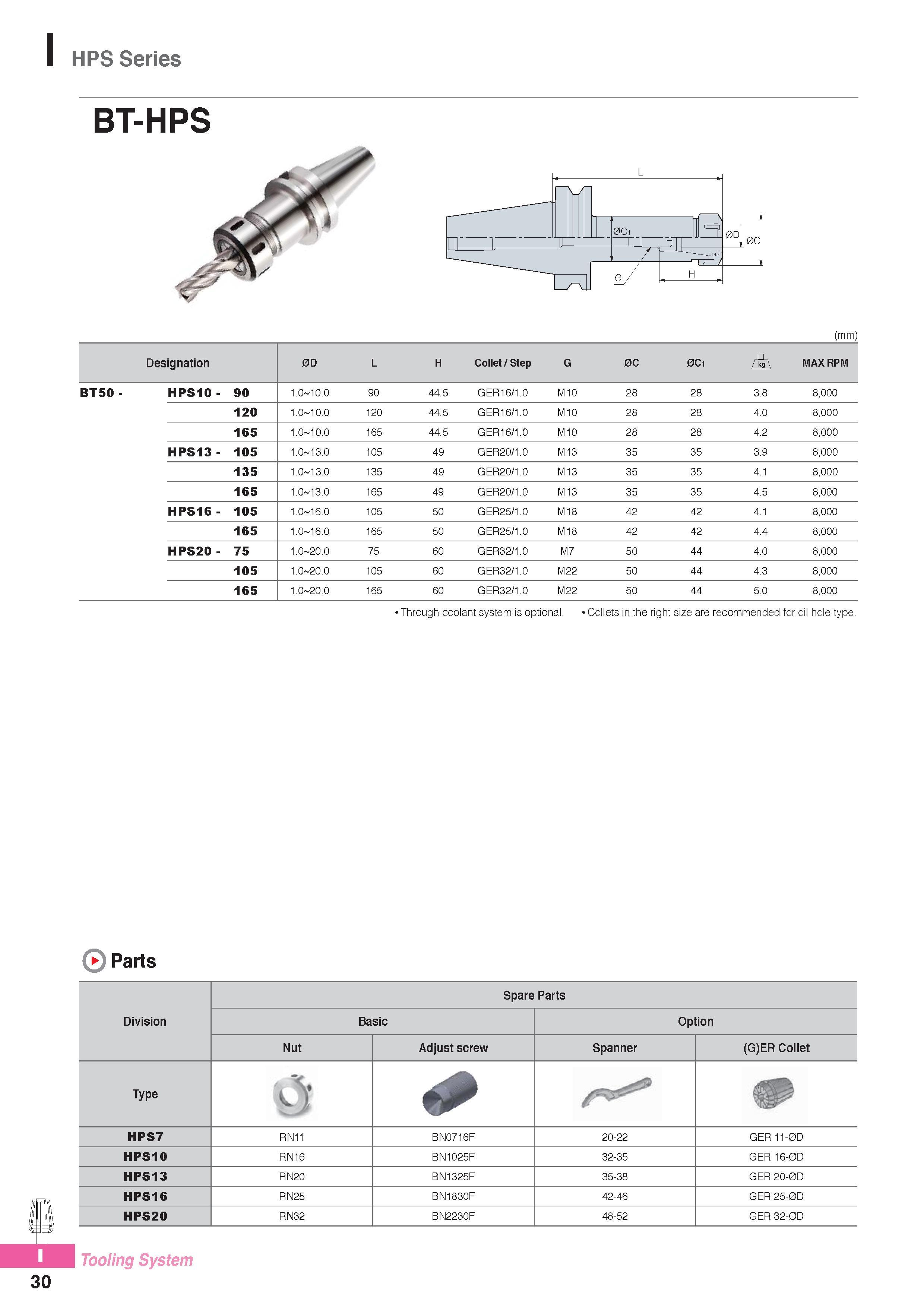

HPS Series BT-HPS (mm) Designation 0D L H Collet / Step G 0C 0C1 MAX RPM BT50- HPS10- 90 1.0 10.0 90 44.5 GER16/1.0 M10 28 28 3.8 8,000 120 1.0 10.0 120 44.5 GER16/1.0 M10 28 28 4.0 8,000 165 1.0 10.0 165 44.5 GER16/1.0 M10 28 28 4.2 8,000 HPS13- 105 1.0 13.0 105 49 GER20/1.0 M13 35 35 3.9 8,000 135 1.0 13.0 135 49 GER20/1.0 M13 35 35 4.1 8,000 165 1.0 13.0 165 49 GER20/1.0 M13 35 35 4.5 8,000 HPS16- 105 1.0 16.0 105 50 GER25/1.0 M18 42 42 4.1 8,000 165 1.0 16.0 165 50 GER25/1.0 M18 42 42 4.4 8,000 HPS20 - 75 1.0 20.0 75 60 GER32/1.0 M7 50 44 4.0 8,000 105 1.0 20.0 105 60 GER32/1.0 M22 50 44 4.3 8,000 165 1.0 20.0 165 60 GER32/1.0 M22 50 44 5.0 8,000 Through coolant system is optional. Collets in the right size are recommended for oil hole type. Parts Division Spare Parts Basic Option Nut Adjust screw Spanner (G)ER Collet Type IP HPS7 RN11 BN0716F 20-22 GER 11-0D HPS10 RN16 BN1025F 32-35 GER 16-0D HPS13 RN20 BN1325F 35-38 GER 20-0D HPS16 RN25 BN1830F 42-46 GER 25-0D HPS20 RN32 BN2230F 48-52 GER 32-0D I Tooling System 30
