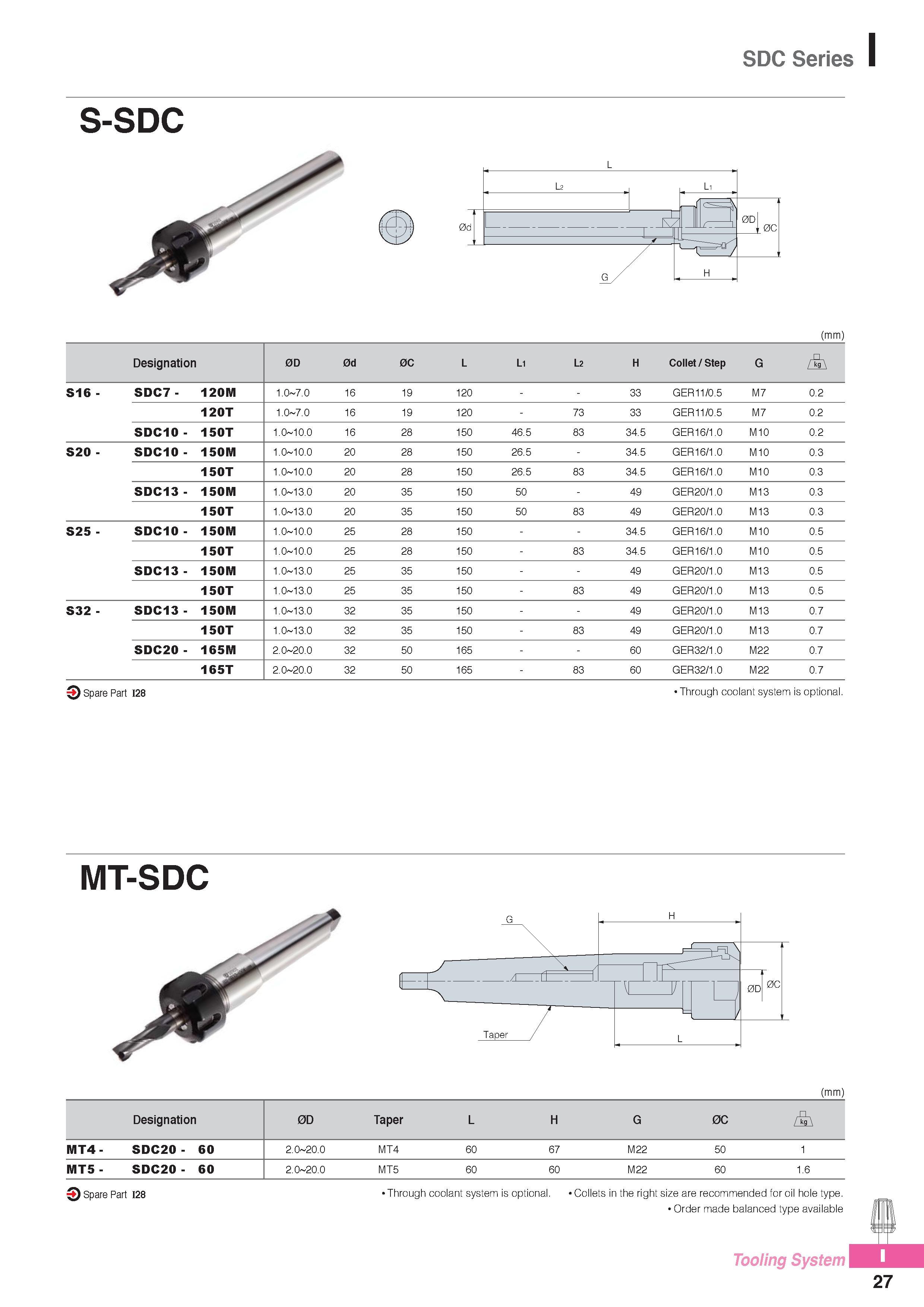

SDC Series (mm) Designation 0D 0d 0C L L1 L2 H Collet / Step G S16 - SDC7 - 120M 1.0 7.0 16 19 120 33 GER11/0.5 M7 0.2 120T 1.0 7.0 16 19 120 73 33 GER11/0.5 M7 0.2 SDC10 - 150T 1.0 10.0 16 28 150 46.5 83 34.5 GER16/1.0 M10 0.2 S20 - SDC10 - 150M 1.0 10.0 20 28 150 26.5 34.5 GER16/1.0 M10 0.3 150T 1.0 10.0 20 28 150 26.5 83 34.5 GER16/1.0 M10 0.3 SDC13 - 150M 1.0 13.0 20 35 150 50 49 GER20/1.0 M13 0.3 150T 1.0 13.0 20 35 150 50 83 49 GER20/1.0 M13 0.3 S25 - SDC10 - 150M 1.0 10.0 25 28 150 34.5 GER16/1.0 M10 0.5 150T 1.0 10.0 25 28 150 83 34.5 GER16/1.0 M10 0.5 SDC13 - 150M 1.0 13.0 25 35 150 49 GER20/1.0 M13 0.5 150T 1.0 13.0 25 35 150 83 49 GER20/1.0 M13 0.5 S32 - SDC13 - 150M 1.0 13.0 32 35 150 49 GER20/1.0 M13 0.7 150T 1.0 13.0 32 35 150 83 49 GER20/1.0 M13 0.7 SDC20 - 165M 2.0 20.0 32 50 165 60 GER32/1.0 M22 0.7 165T 2.0 20.0 32 50 165 83 60 GER32/1.0 M22 0.7 Spare Part I28 Through coolant system is optional. (mm) Designation 0D Taper L H G 0C A MT4 - SDC20 - 60 2.0 20.0 MT4 60 67 M22 50 1 MT5 - SDC20 - 60 2.0 20.0 MT5 60 60 M22 60 1.6 3 Spare Part I28 Through coolant system is optional. Collets in the right size are recommended for oil hole type. Order made balanced type available Tooling System 27
