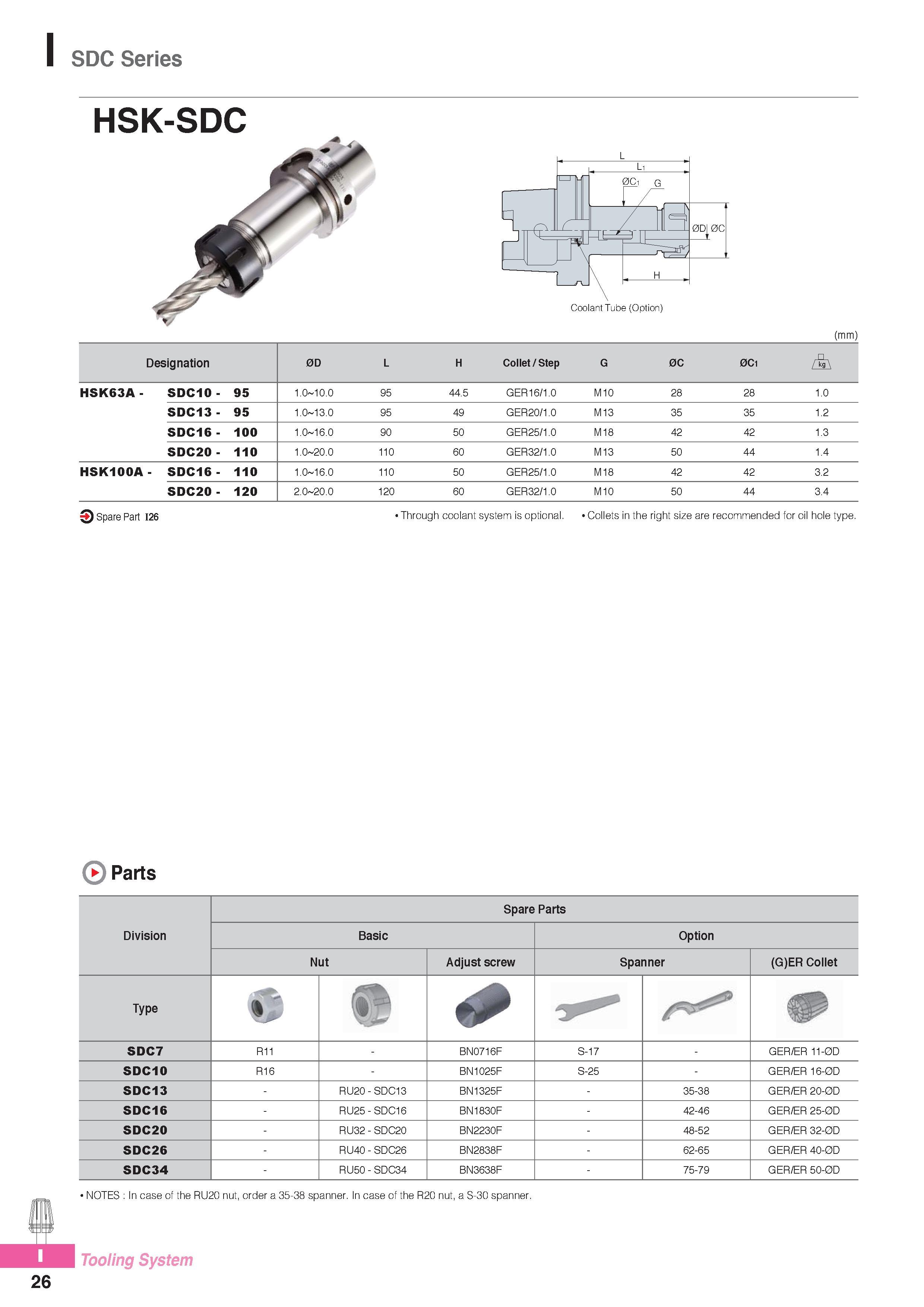

SDC Series HSK-SDC (mm) Designation 0D L H Collet / Step G 0C 0Ci HSK63A - SDC10- 95 1.0 10.0 95 44.5 GER16/1.0 M10 28 28 1.0 SDC13- 95 1.0 13.0 95 49 GER20/1.0 M13 35 35 1.2 SDC16- 100 1.0 16.0 90 50 GER25/1.0 M18 42 42 1.3 SDC20- 110 1.0 20.0 110 60 GER32/1.0 M13 50 44 1.4 HSK100A - SDC16- 110 1.0 16.0 110 50 GER25/1.0 M18 42 42 3.2 SDC20- 120 2.0 20.0 120 60 GER32/1.0 M10 50 44 3.4 3 Spare Part I26 Through coolant system is optional. Collets in the right size are recommended for oil hole type. Parts Division Spare Parts Basic Option Nut Adjust screw Spanner (G)ER Collet Type IP SDC7 R11 - BN0716F S-17 GER/ER 11-0D SDC10 R16 - BN1025F S-25 GER/ER 16-0D SDC13 - RU20 - SDC13 BN1325F - 35-38 GER/ER 20-0D SDC16 - RU25 - SDC16 BN1830F - 42-46 GER/ER 25-0D SDC20 - RU32 - SDC20 BN2230F - 48-52 GER/ER 32-0D SDC26 - RU40 - SDC26 BN2838F - 62-65 GER/ER 40-0D SDC34 - RU50 - SDC34 BN3638F - 75-79 GER/ER 50-0D NOTES In case of the RU20 nut, order a 35-38 spanner. In case of the R20 nut, a S-30 spanner. 1 Tooling System 26
