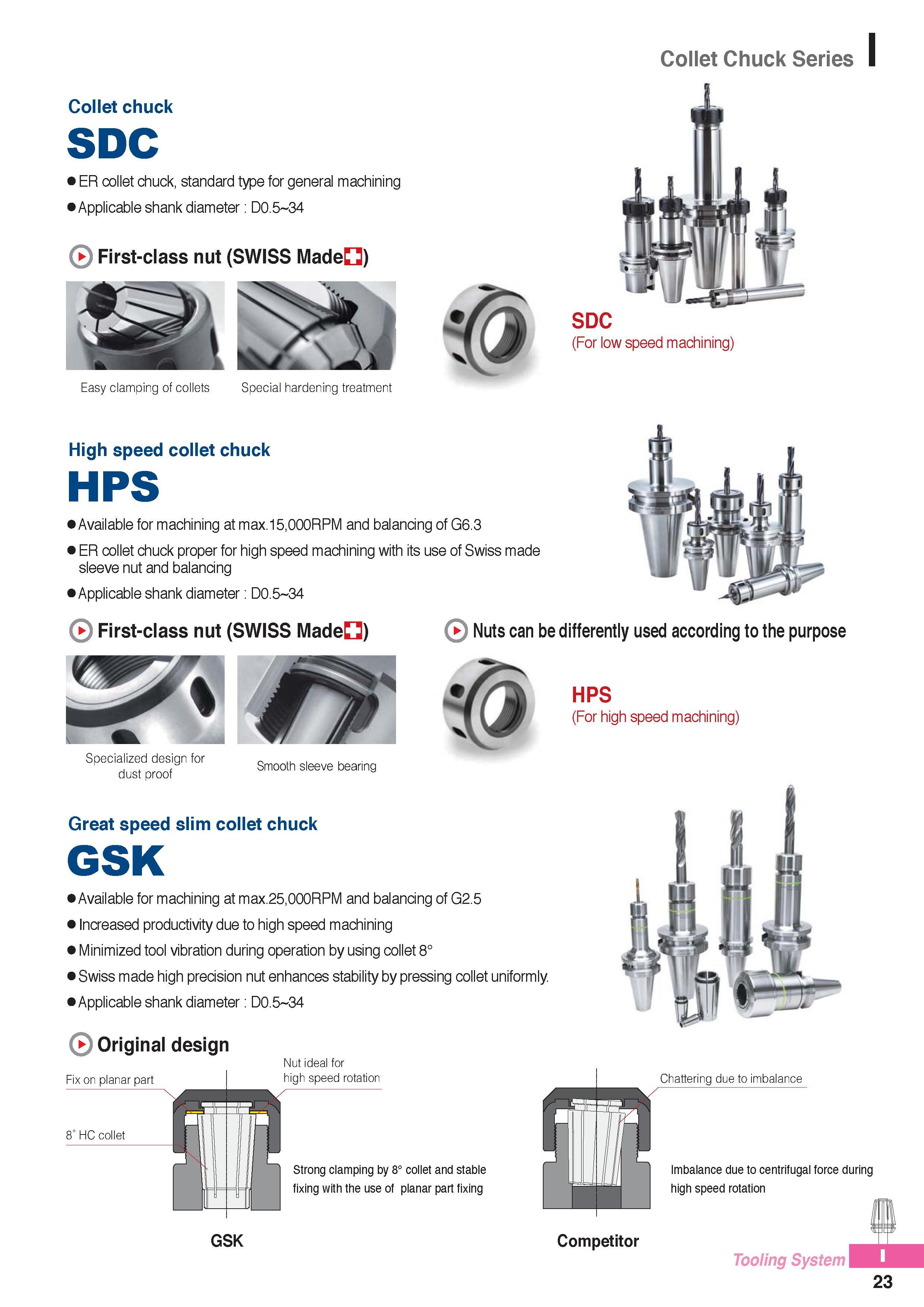

Collet Chuck Series Collet chuck SDC ER collet chuck, standard type for general machining Applicable shank diameter D0.5 34 First-class nut (SWISS Made ) SDC (For low speed machining) Easy clamping of collets Special hardening treatment High speed collet chuck HPS Available for machining at max.15,000RPM and balancing of G6.3 ER collet chuck proper for high speed machining with its use of Swiss made sleeve nut and balancing Applicable shank diameter D0.5 34 First-class nut (SWISS Made ) Nuts can be differently used according to the purpose Specialized design for dust proof HPS (For high speed machining) Smooth sleeve bearing Great speed slim collet chuck GSK Available for machining at max.25,000RPM and balancing of G2.5 Increased productivity due to high speed machining Minimized tool vibration during operation by using collet 8° Swiss made high precision nut enhances stability by pressing collet uniformly. Applicable shank diameter D0.5 34 Original design Fix on planar part 8° HC collet Nut ideal for high speed rotatior Strong clamping by 8° collet and stable fixing with the use of planar part fixing Chattering due to imbalance Imbalance due to centrifugal force during high speed rotation GSK Competitor Tooling System 23
