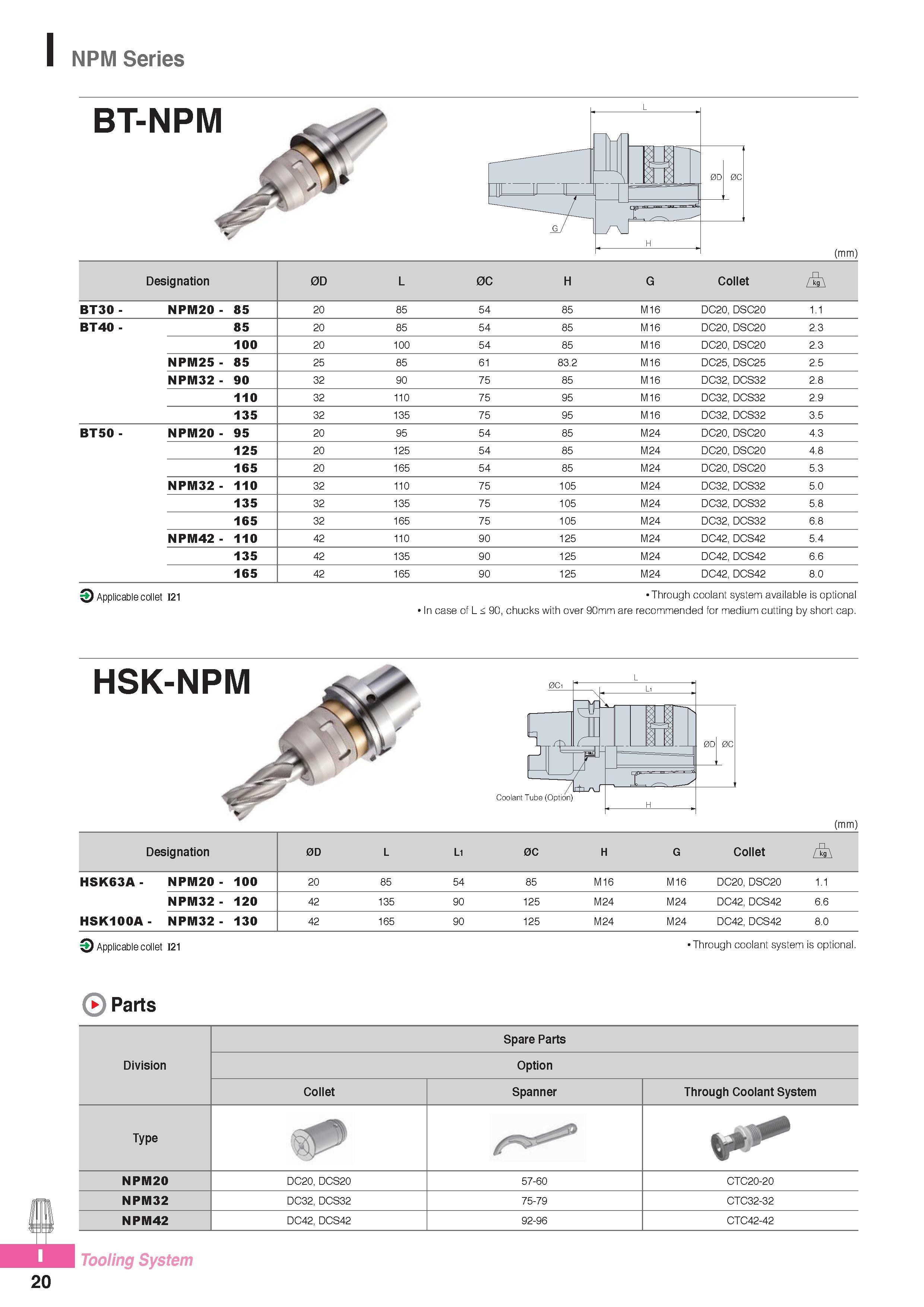

NPM Series BT-NPM (mm) Designation 0D L 0C H G Collet BT30 - NPM20- 85 20 85 54 85 M16 DC20, DSC20 1.1 BT40 - 85 20 85 54 85 M16 DC20, DSC20 2.3 100 20 100 54 85 M16 DC20, DSC20 2.3 NPM25- 85 25 85 61 83.2 M16 DC25, DSC25 2.5 NPM32- 90 32 90 75 85 M16 DC32, DCS32 2.8 110 32 110 75 95 M16 DC32, DCS32 2.9 135 32 135 75 95 M16 DC32, DCS32 3.5 BT50 - NPM20- 95 20 95 54 85 M24 DC20, DSC20 4.3 125 20 125 54 85 M24 DC20, DSC20 4.8 165 20 165 54 85 M24 DC20, DSC20 5.3 NPM32- 110 32 110 75 105 M24 DC32, DCS32 5.0 135 32 135 75 105 M24 DC32, DCS32 5.8 165 32 165 75 105 M24 DC32, DCS32 6.8 NPM42- 110 42 110 90 125 M24 DC42, DCS42 5.4 135 42 135 90 125 M24 DC42, DCS42 6.6 165 42 165 90 125 M24 DC42, DCS42 8.0 3 Applicable collet I2i Through coolant system available is optional In case of L 90, chucks with over 90mm are recommended for medium cutting by short cap. HSK-NPM /Irh nj Coolant Tube (Option) (mm) Designation 0D L Li 0C H G Collet /jig\ HSK63A - NPM20- 100 20 85 54 85 M16 M16 DC20, DSC20 1.1 NPM32 - 120 42 135 90 125 M24 M24 DC42, DCS42 6.6 HSK100A - NPM32 - 130 42 165 90 125 M24 M24 DC42, DCS42 8.0 O Applicable collet I2i Through coolant system is optional. Parts Spare Parts Division Option Collet Spanner Through Coolant System Type NPM20 DC20, DCS20 57-60 CTC20-20 NPM32 DC32, DCS32 75-79 CTC32-32 NPM42 DC42, DCS42 92-96 CTC42-42 Tooling System 20
