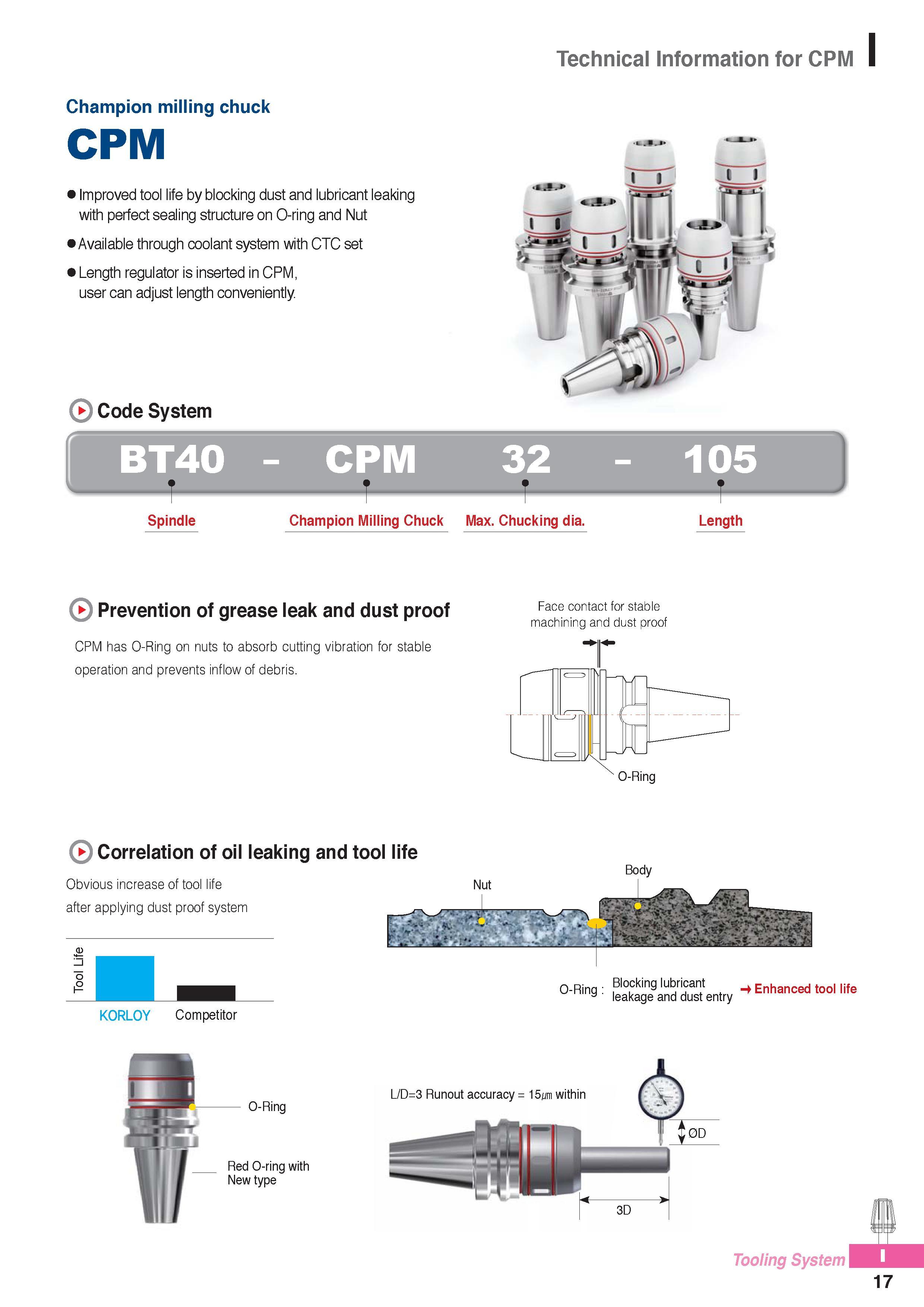

Technical Information for CPM Champion milling chuck CPM Improved tool life by blocking dust and lubricant leaking with perfect sealing structure on O-ring and Nut Available through coolant system with CTC set Length regulator is inserted in CPM, user can adjust length conveniently. Code System BT40 - CPM 32 105 Spindle Champion Milling Chuck Max. Chucking dia. Length Prevention of grease leak and dust proof CPM has O-Ring on nuts to absorb cutting vibration for stable operation and prevents inflow of debris. Face contact for stable machining and dust proof Correlation of oil leaking and tool life Obvious increase of tool life after applying dust proof system KORLOY Competitor Body O-Ring Blocking lubricant leakage and dust entry > Enhanced tool life O-Ring Red O-ring with New type L/D=3 Runout accuracy = 15ym within 3D Tooling System 17
