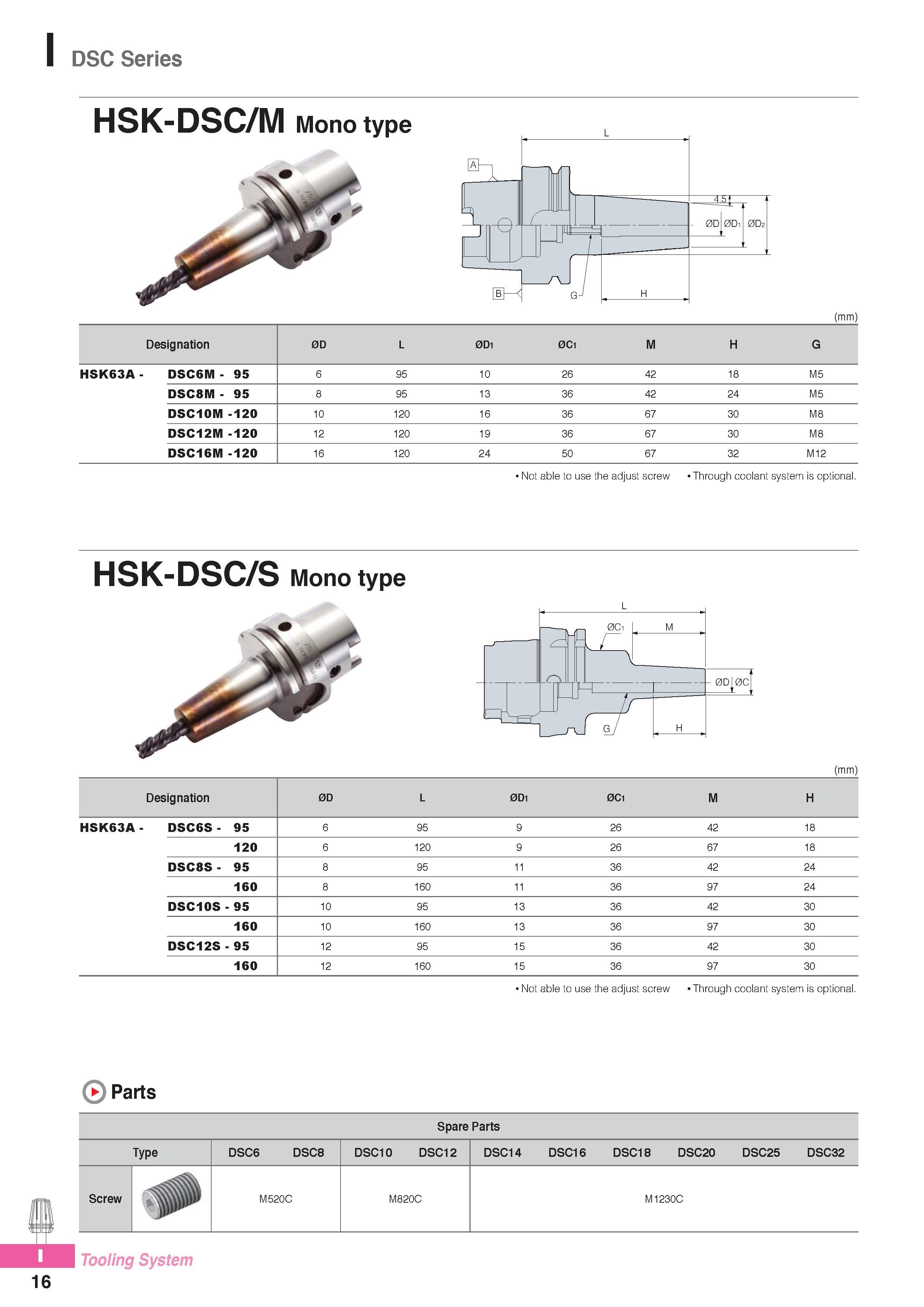

DSC Series HSK-DSC/M Mono type (mm) Designation 0D L 0Di 0Ci M H G HSK63A - DSC6M - 95 6 95 10 26 42 18 M5 DSC8M - 95 8 95 13 36 42 24 M5 DSC10M -120 10 120 16 36 67 30 M8 DSC12M -120 12 120 19 36 67 30 M8 DSC16M -120 16 120 24 50 67 32 M12 Not able to use the adjust screw Through coolant system is optional. HSK-DSC/S Mono type (mm) Designation 0D L 0Di 0Ci M H HSK63A- DSC6S- 95 6 95 9 26 42 18 120 6 120 9 26 67 18 DSC8S- 95 8 95 11 36 42 24 160 8 160 11 36 97 24 DSC10S- 95 10 95 13 36 42 30 160 10 160 13 36 97 30 DSC12S- 95 12 95 15 36 42 30 160 12 160 15 36 97 30 Not able to use the adjust screw Through coolant system is optional. Parts Spare Parts Type DSC6 DSC8 DSCiO DSCi2 DSCi4 DSCi6 DSCi8 DSC20 DSC25 DSC32 Screw M520C M820C M1230C Tooling System 16
