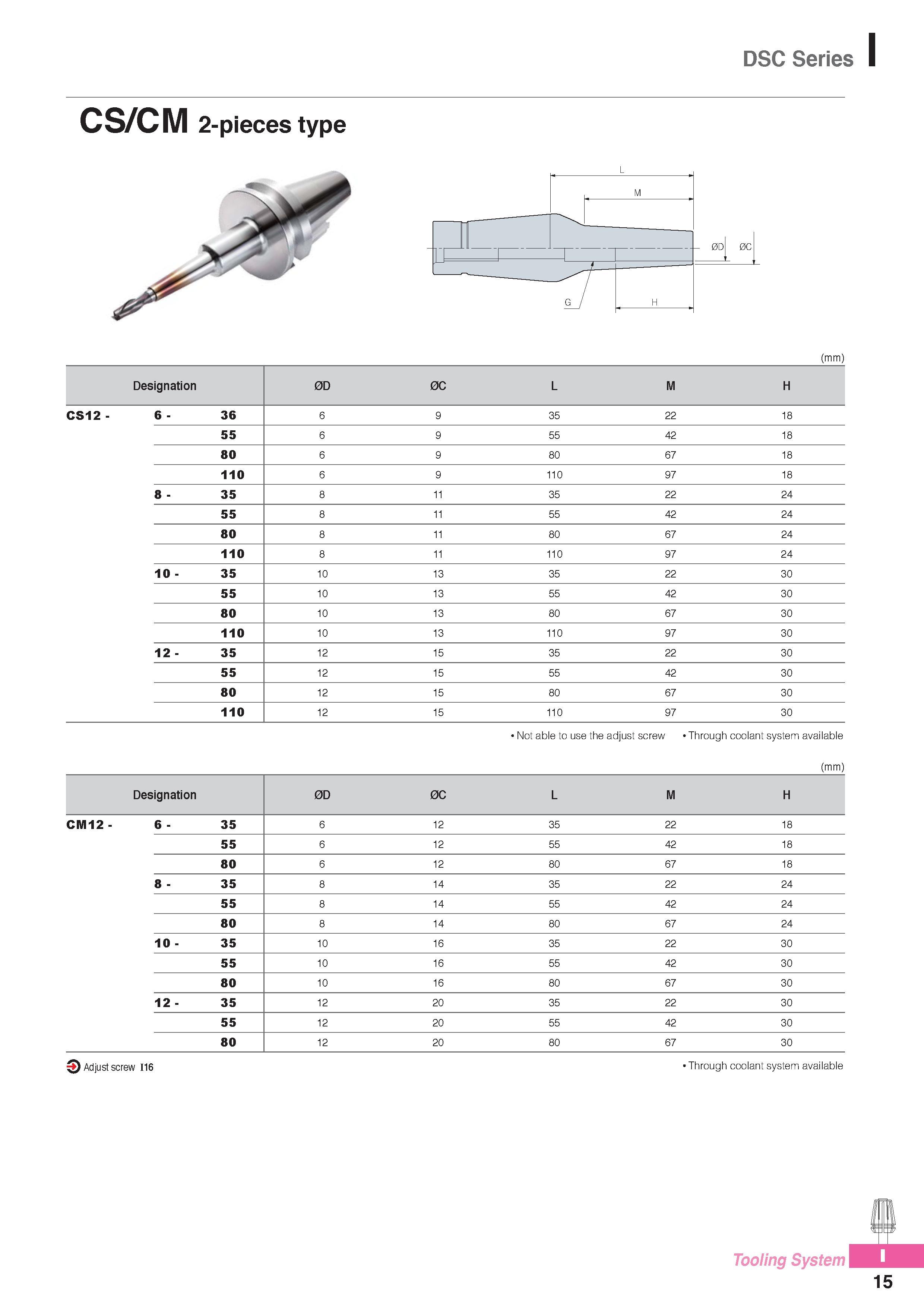

DSC Series CS/CM 2-pieces type (mm) Designation 0D 0C L M H CS12- 6 - 36 6 9 35 22 18 55 6 9 55 42 18 80 6 9 80 67 18 110 6 9 110 97 18 8 - 35 8 11 35 22 24 55 8 11 55 42 24 80 8 11 80 67 24 110 8 11 110 97 24 10 - 35 10 13 35 22 30 55 10 13 55 42 30 80 10 13 80 67 30 110 10 13 110 97 30 12 - 35 12 15 35 22 30 55 12 15 55 42 30 80 12 15 80 67 30 110 12 15 110 97 30 Not able to use the adjust screw Through coolant system available (mm) Designation 0D 0C L M H CM12 - 6 - 35 6 12 35 22 18 55 6 12 55 42 18 80 6 12 80 67 18 8 - 35 8 14 35 22 24 55 8 14 55 42 24 80 8 14 80 67 24 10 - 35 10 16 35 22 30 55 10 16 55 42 30 80 10 16 80 67 30 12 - 35 12 20 35 22 30 55 12 20 55 42 30 80 12 20 80 67 30 3 Adjust screw I16 Through coolant system available Tooling System 15
