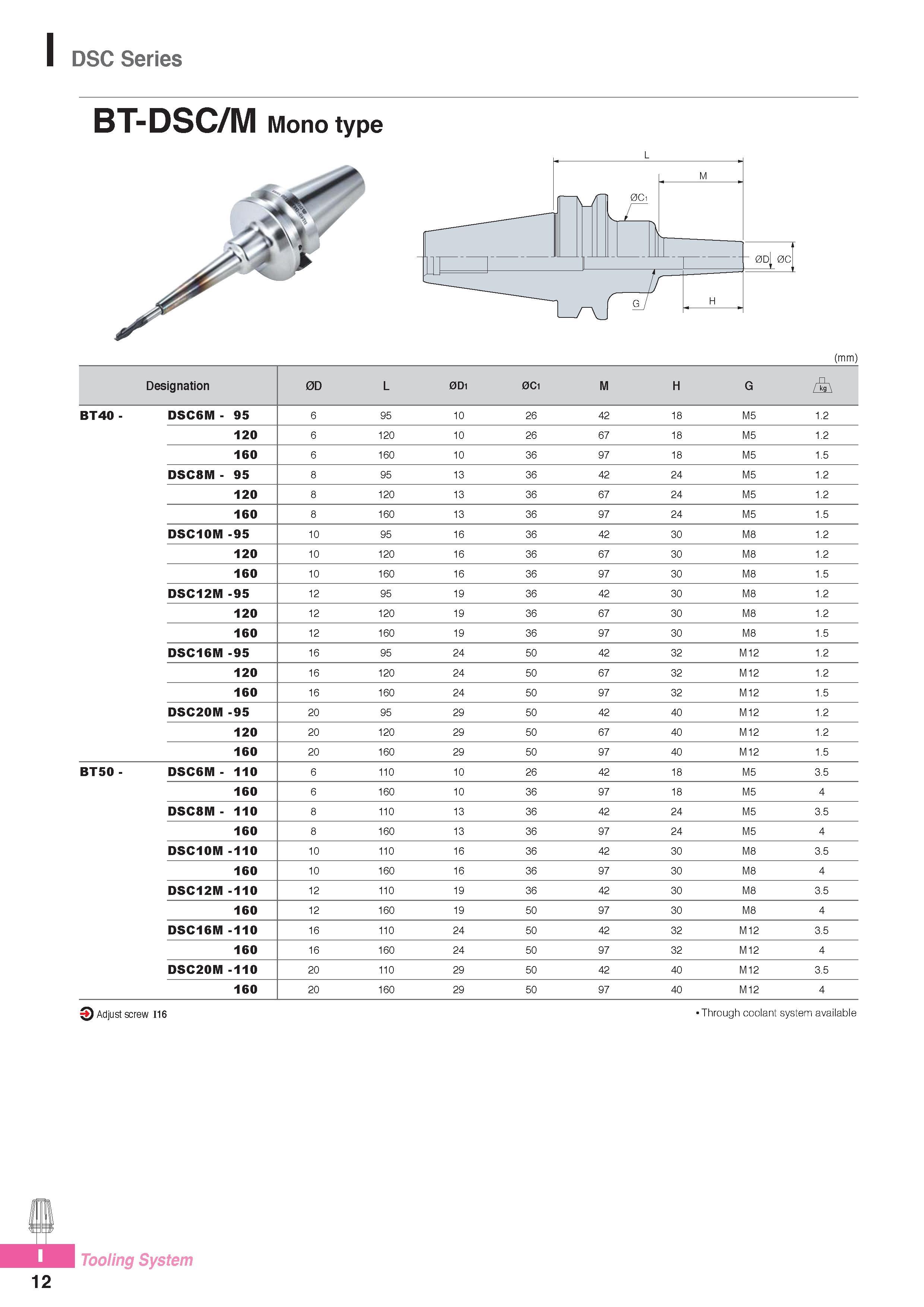

DSC Series BT-DSC/M Mono type (mm) Designation 0D L 0Di 0Ci M H G BT40 - DSC6M - 95 6 95 10 26 42 18 M5 1.2 120 6 120 10 26 67 18 M5 1.2 160 6 160 10 36 97 18 M5 1.5 DSC8M - 95 8 95 13 36 42 24 M5 1.2 120 8 120 13 36 67 24 M5 1.2 160 8 160 13 36 97 24 M5 1.5 DSC10M -95 10 95 16 36 42 30 M8 1.2 120 10 120 16 36 67 30 M8 1.2 160 10 160 16 36 97 30 M8 1.5 DSC12M -95 12 95 19 36 42 30 M8 1.2 120 12 120 19 36 67 30 M8 1.2 160 12 160 19 36 97 30 M8 1.5 DSC16M -95 16 95 24 50 42 32 M12 1.2 120 16 120 24 50 67 32 M12 1.2 160 16 160 24 50 97 32 M12 1.5 DSC20M -95 20 95 29 50 42 40 M12 1.2 120 20 120 29 50 67 40 M12 1.2 160 20 160 29 50 97 40 M12 1.5 BT50 - DSC6M - 110 6 110 10 26 42 18 M5 3.5 160 6 160 10 36 97 18 M5 4 DSC8M - 110 8 110 13 36 42 24 M5 3.5 160 8 160 13 36 97 24 M5 4 DSC10M -110 10 110 16 36 42 30 M8 3.5 160 10 160 16 36 97 30 M8 4 DSC12M -110 12 110 19 36 42 30 M8 3.5 160 12 160 19 50 97 30 M8 4 DSC16M -110 16 110 24 50 42 32 M12 3.5 160 16 160 24 50 97 32 M12 4 DSC20M -110 20 110 29 50 42 40 M12 3.5 160 20 160 29 50 97 40 M12 4 3 Adjust screw Ii6 Through coolant system available Tooling System 12
