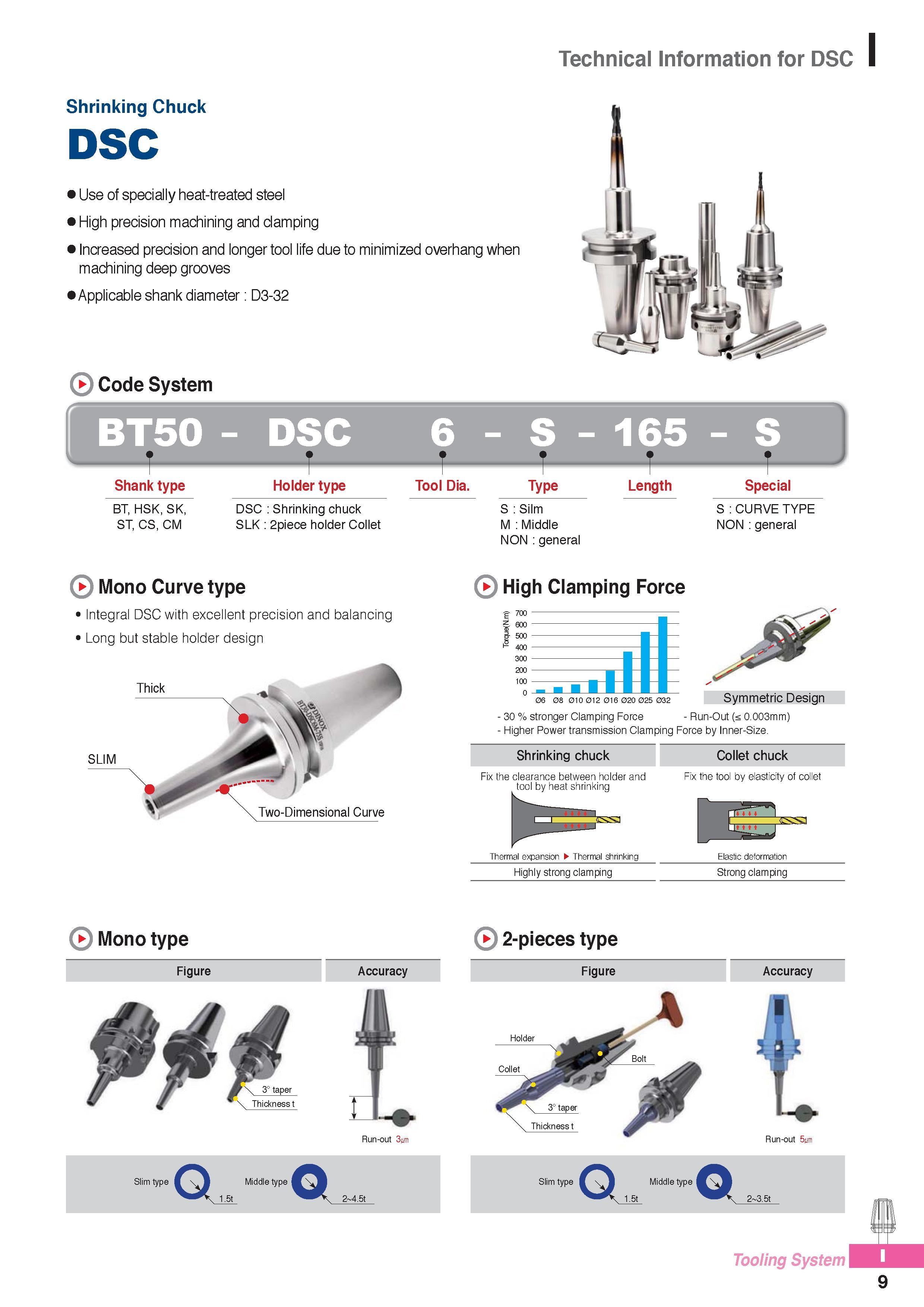

Technical Information for DSC Shrinking Chuck DSC Use of specially heat-treated steel High precision machining and clamping Increased precision and longer tool life due to minimized overhang when machining deep grooves Applicable shank diameter D3-32 Code System BT50- DSC 6 - S - 165 - Shank type BT, HSK, SK, ST, CS, CM Holder type DSC Shrinking chuck SLK 2piece holder Collet Tool Dia. Type S Silm M Middle NON general Length Special S CURVE TYPE NON general Mono Curve type Integral DSC with excellent precision and balancing Long but stable holder design Thick SLIM ft ) Two-Dimensional Curve High Clamping Force 700 600 500 400 300 200 100 0 -ill 06 08 010 012 016 020 025 032 Symmetric Design - 30 stronger Clamping Force - Run-Out (< 0.003mm) - Higher Power transmission Clamping Force by Inner-Size. Shrinking chuck Fix the clearance between holder and tool by heat shrinking Collet chuck Fix the tool by elasticity of collet ES Thermal expansion Thermal shrinking Elastic deformation Highly strong clamping Strong clamping
