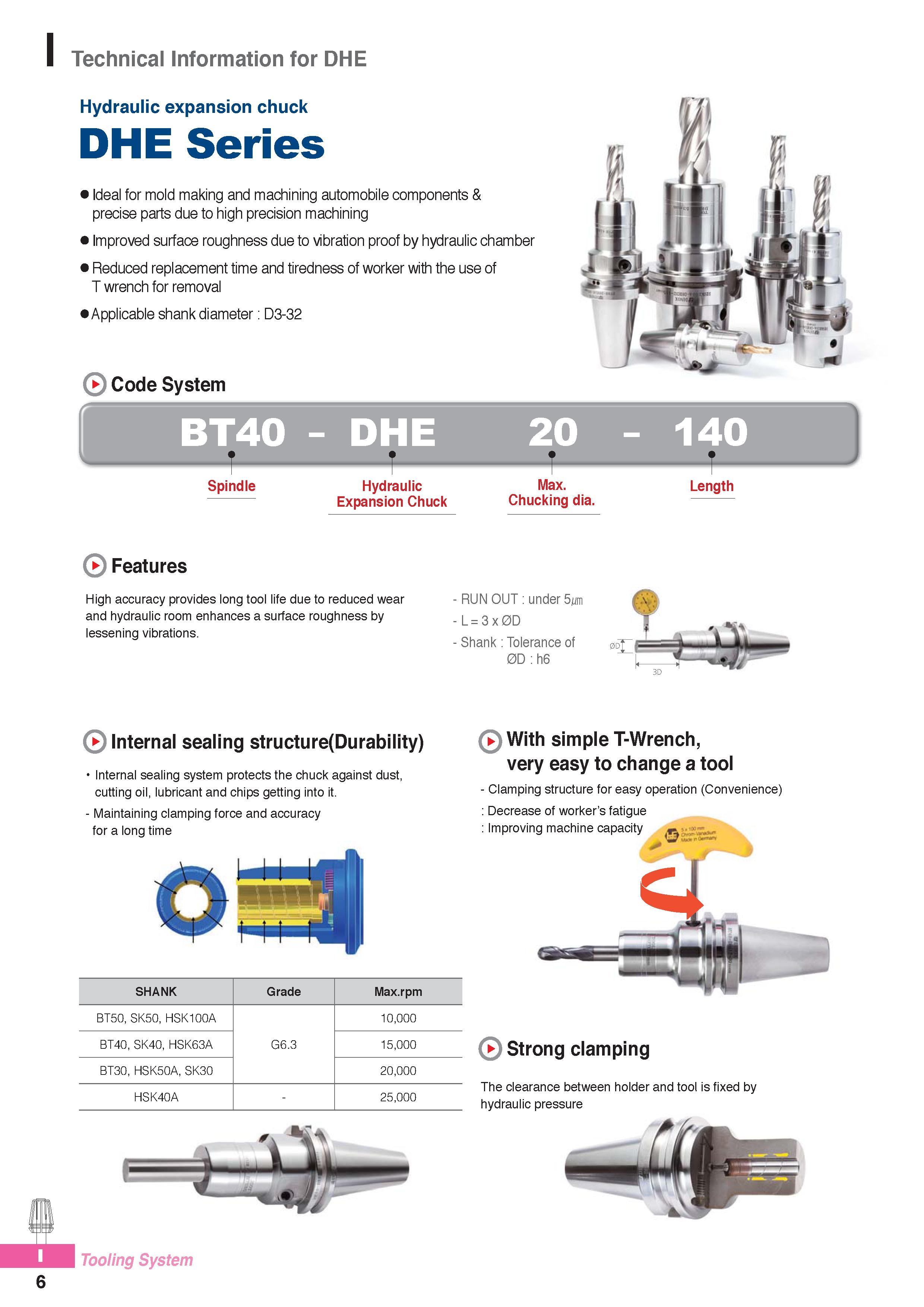

Описание основных технических характеристик вспомогательного станочного инструмента Korloy DHE серии с системой гидрозажима Идеальное технологическое решение для высокопроизводительной механической обработки штампов Ideal for mold making and machining automobile components & precise parts due to high precision machining Improved surface roughness due to vibration proof by hydraulic chamber Reduced replacement time and tiredness of worker with the use of T wrench for removal Applicable shank diameter D3-32 Code System BT40 - 20 - 140 Spindle Hydraulic Expansion Chuck Max. Chucking dia. Length Features High accuracy provides long tool life due to reduced wear and hydraulic room enhances a surface roughness by lessening vibrations. RUN OUT under 5ym L=3x 0D Shank Tolerance of 0D 0D :h6 Internal sealing structure(Durability) Internal sealing system protects the chuck against dust, cutting oil, lubricant and chips getting into it. - Maintaining clamping force and accuracy for a long time Tooling System With simple T-Wrench, very easy to change a tool - Clamping structure for easy operation (Convenience) Decrease of worker’s fatigue Improving machine capacity SHANK Grade Max.rpm BT50, SK50, HSK100A G6.3 10,000 BT40, SK40, HSK63A 15,000 BT30, HSK50A, SK30 20,000 HSK40A - 25,000 Strong clamping The clearance between holder and tool is fixed by hydraulic pressure 6 Technical Information for DHE Hydraulic expansion chuck DHE Series
