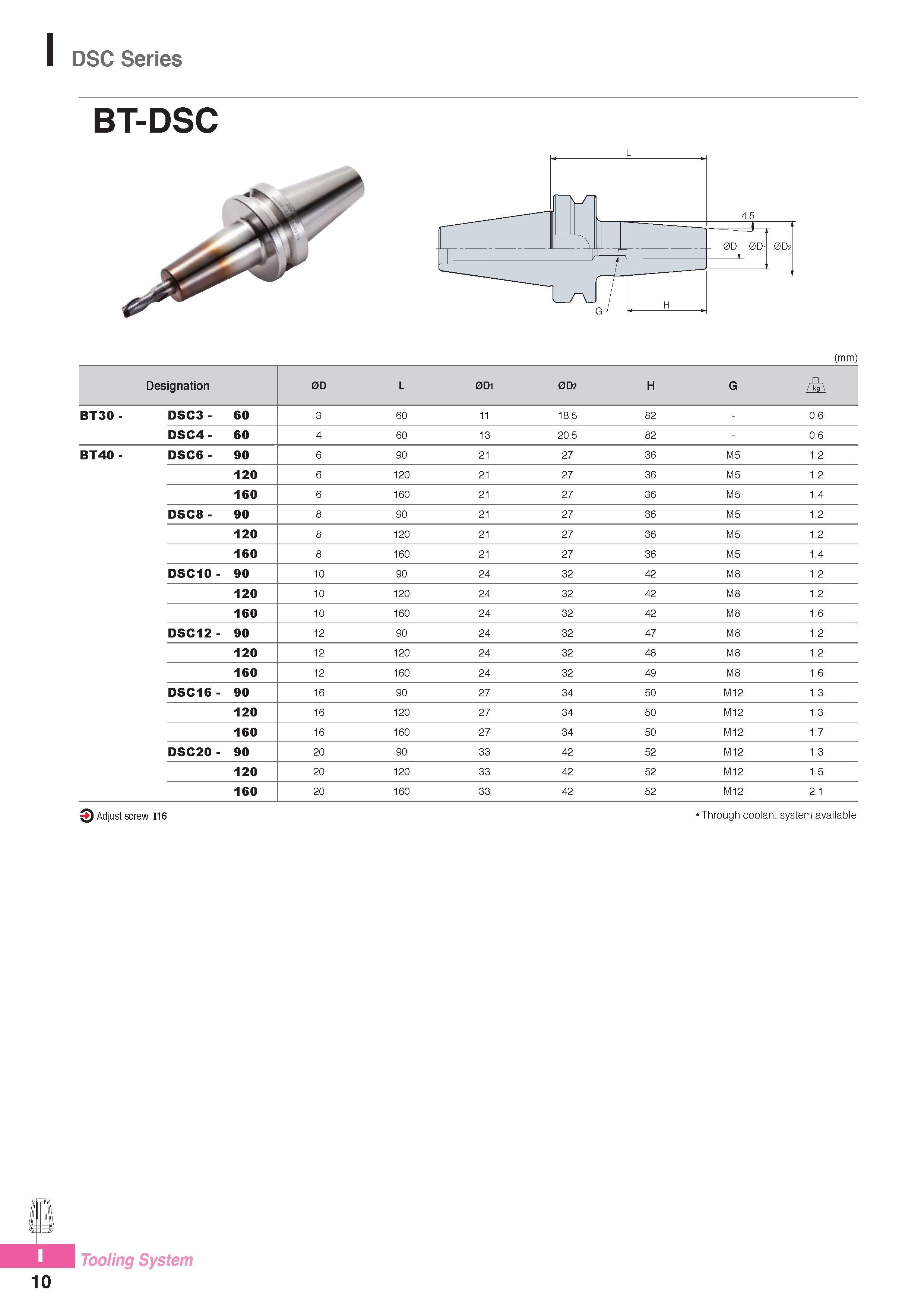

DSC Series BT-DSC (mm) Designation 0D L 0Di 0D2 H G A BT30 - DSC3 - 60 3 60 11 18.5 82 - 0.6 DSC4 - 60 4 60 13 20.5 82 - 0.6 BT40 - DSC6 - 90 6 90 21 27 36 M5 1.2 120 6 120 21 27 36 M5 1.2 160 6 160 21 27 36 M5 1.4 DSC8 - 90 8 90 21 27 36 M5 1.2 120 8 120 21 27 36 M5 1.2 160 8 160 21 27 36 M5 1.4 DSC10- 90 10 90 24 32 42 M8 1.2 120 10 120 24 32 42 M8 1.2 160 10 160 24 32 42 M8 1.6 DSC12- 90 12 90 24 32 47 M8 1.2 120 12 120 24 32 48 M8 1.2 160 12 160 24 32 49 M8 1.6 DSC16- 90 16 90 27 34 50 M12 1.3 120 16 120 27 34 50 M12 1.3 160 16 160 27 34 50 M12 1.7 DSC20- 90 20 90 33 42 52 M12 1.3 120 20 120 33 42 52 M12 1.5 160 20 160 33 42 52 M12 2.1 3 Adjust screw I16 Through coolant system available Tooling System 10
