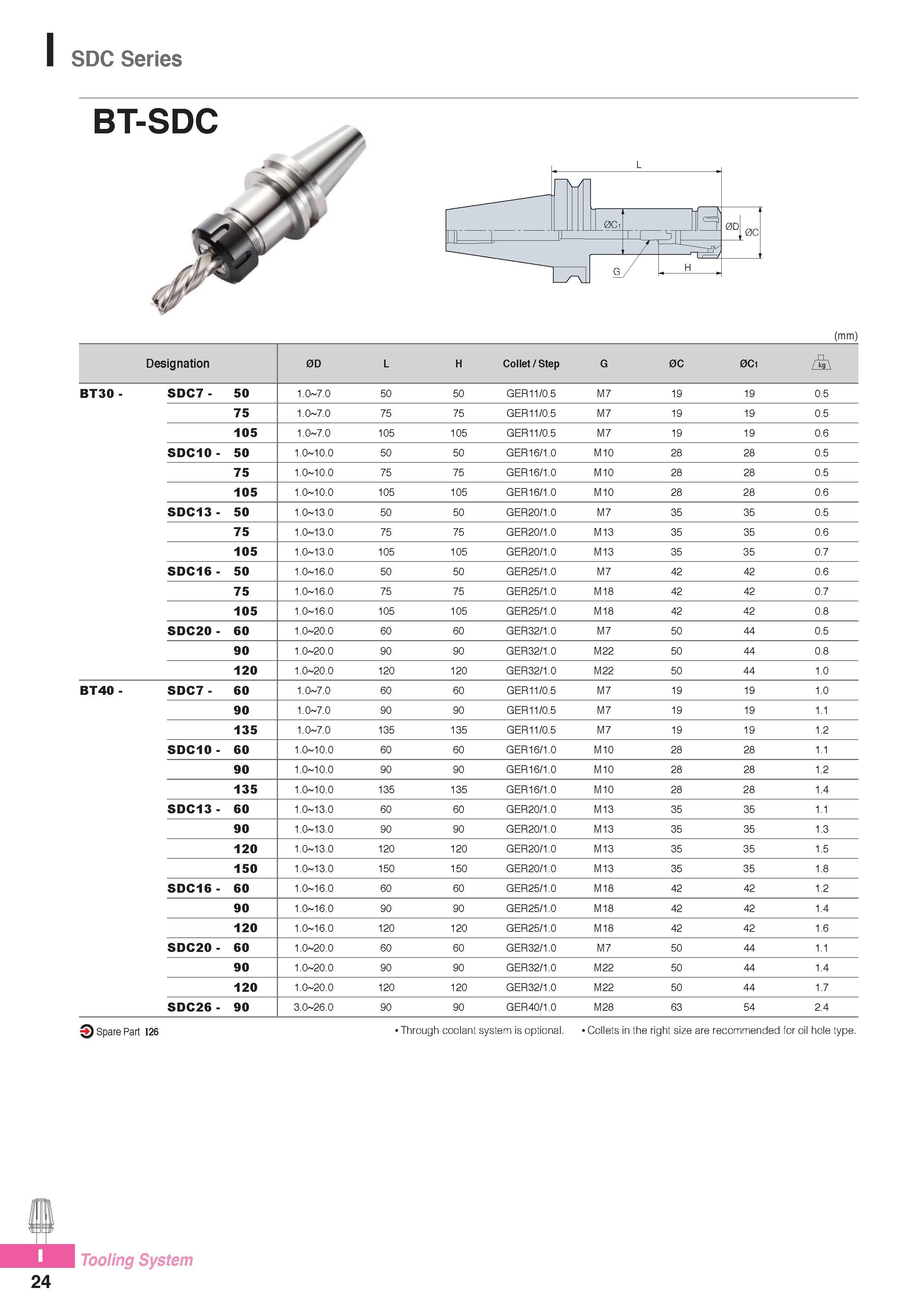

SDC Series (mm) Designation 0D L H Collet / Step G 0C 0Ci BT30 - SDC7 - 50 1.0 7.0 50 50 GER11/0.5 M7 19 19 0.5 75 1.0 7.0 75 75 GER11/0.5 M7 19 19 0.5 105 1.0 7.0 105 105 GER11/0.5 M7 19 19 0.6 SDC10- 50 1.0 10.0 50 50 GER16/1.0 M10 28 28 0.5 75 1.0 10.0 75 75 GER16/1.0 M10 28 28 0.5 105 1.0 10.0 105 105 GER16/1.0 M10 28 28 0.6 SDC13- 50 1.0 13.0 50 50 GER20/1.0 M7 35 35 0.5 75 1.0 13.0 75 75 GER20/1.0 M13 35 35 0.6 105 1.0 13.0 105 105 GER20/1.0 M13 35 35 0.7 SDC16- 50 1.0 16.0 50 50 GER25/1.0 M7 42 42 0.6 75 1.0 16.0 75 75 GER25/1.0 M18 42 42 0.7 105 1.0 16.0 105 105 GER25/1.0 M18 42 42 0.8 SDC20- 60 1.0 20.0 60 60 GER32/1.0 M7 50 44 0.5 90 1.0 20.0 90 90 GER32/1.0 M22 50 44 0.8 120 1.0 20.0 120 120 GER32/1.0 M22 50 44 1.0 BT40 - SDC7 - 60 1.0 7.0 60 60 GER11/0.5 M7 19 19 1.0 90 1.0 7.0 90 90 GER11/0.5 M7 19 19 1.1 135 1.0 7.0 135 135 GER11/0.5 M7 19 19 1.2 SDC10- 60 1.0 10.0 60 60 GER16/1.0 M10 28 28 1.1 90 1.0 10.0 90 90 GER16/1.0 M10 28 28 1.2 135 1.0 10.0 135 135 GER16/1.0 M10 28 28 1.4 SDC13- 60 1.0 13.0 60 60 GER20/1.0 M13 35 35 1.1 90 1.0 13.0 90 90 GER20/1.0 M13 35 35 1.3 120 1.0 13.0 120 120 GER20/1.0 M13 35 35 1.5 150 1.0 13.0 150 150 GER20/1.0 M13 35 35 1.8 SDC16- 60 1.0 16.0 60 60 GER25/1.0 M18 42 42 1.2 90 1.0 16.0 90 90 GER25/1.0 M18 42 42 1.4 120 1.0 16.0 120 120 GER25/1.0 M18 42 42 1.6 SDC20- 60 1.0 20.0 60 60 GER32/1.0 M7 50 44 1.1 90 1.0 20.0 90 90 GER32/1.0 M22 50 44 1.4 120 1.0 20.0 120 120 GER32/1.0 M22 50 44 1.7 SDC26- 90 3.0 26.0 90 90 GER40/1.0 M28 63 54 2.4 3 Spare Part I26 Through coolant system is optional. Collets in the right size are recommended for oil hole type. Tooling System 24
