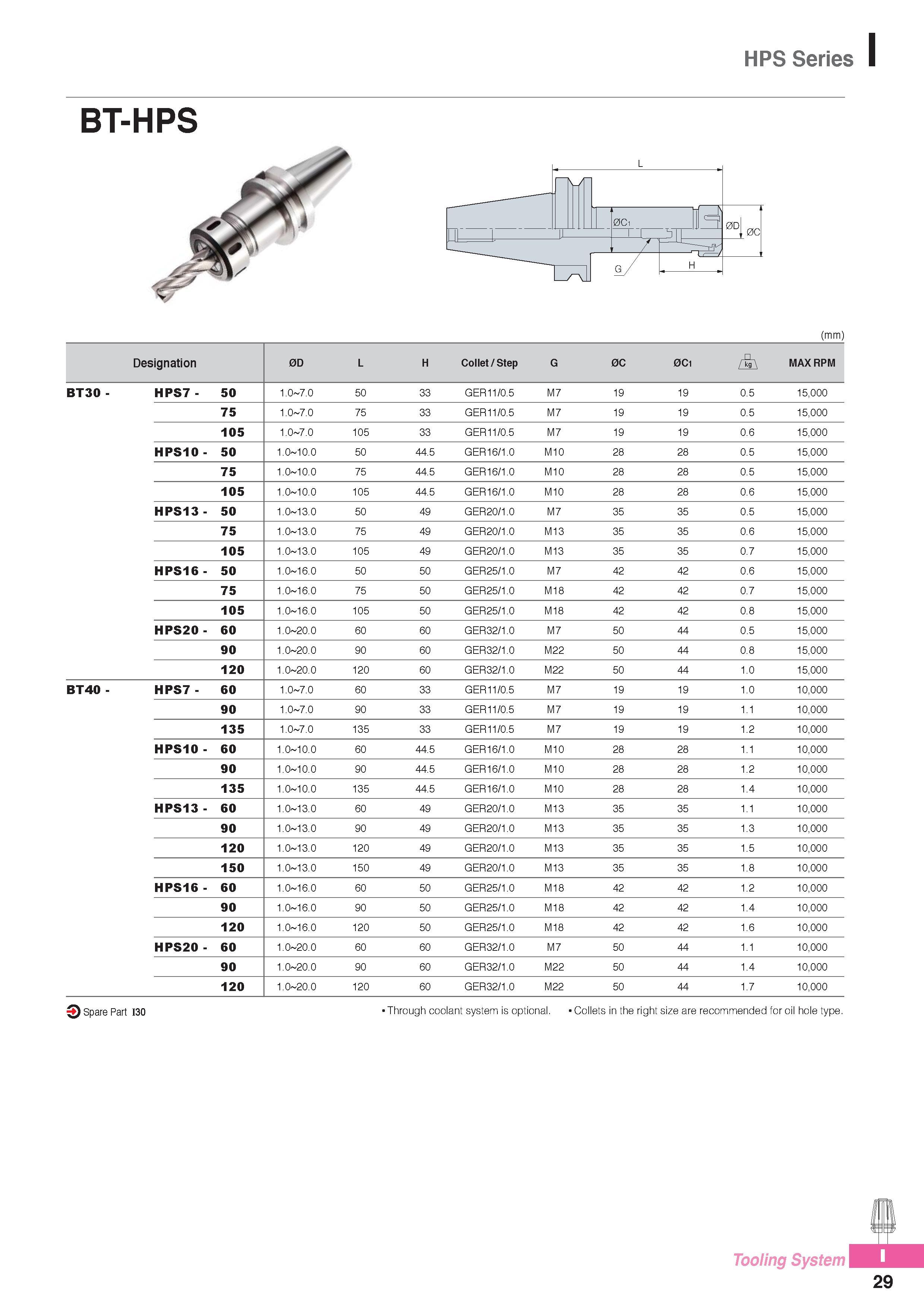

HPS Series BT-HPS (mm) Designation 0D L H Collet / Step G 0C 0C1 MAX RPM BT30 - HPS7 - 50 1.0 7.0 50 33 GER11/0.5 M7 19 19 0.5 15,000 75 1.0 7.0 75 33 GER11/0.5 M7 19 19 0.5 15,000 105 1.0 7.0 105 33 GER11/0.5 M7 19 19 0.6 15,000 HPS10- 50 1.0 10.0 50 44.5 GER16/1.0 M10 28 28 0.5 15,000 75 1.0 10.0 75 44.5 GER16/1.0 M10 28 28 0.5 15,000 105 1.0 10.0 105 44.5 GER16/1.0 M10 28 28 0.6 15,000 HPS13- 50 1.0 13.0 50 49 GER20/1.0 M7 35 35 0.5 15,000 75 1.0 13.0 75 49 GER20/1.0 M13 35 35 0.6 15,000 105 1.0 13.0 105 49 GER20/1.0 M13 35 35 0.7 15,000 HPS16- 50 1.0 16.0 50 50 GER25/1.0 M7 42 42 0.6 15,000 75 1.0 16.0 75 50 GER25/1.0 M18 42 42 0.7 15,000 105 1.0 16.0 105 50 GER25/1.0 M18 42 42 0.8 15,000 HPS20- 60 1.0 20.0 60 60 GER32/1.0 M7 50 44 0.5 15,000 90 1.0 20.0 90 60 GER32/1.0 M22 50 44 0.8 15,000 120 1.0 20.0 120 60 GER32/1.0 M22 50 44 1.0 15,000 BT40 - HPS7 - 60 1.0 7.0 60 33 GER11/0.5 M7 19 19 1.0 10,000 90 1.0 7.0 90 33 GER11/0.5 M7 19 19 1.1 10,000 135 1.0 7.0 135 33 GER11/0.5 M7 19 19 1.2 10,000 HPS10- 60 1.0 10.0 60 44.5 GER16/1.0 M10 28 28 1.1 10,000 90 1.0 10.0 90 44.5 GER16/1.0 M10 28 28 1.2 10,000 135 1.0 10.0 135 44.5 GER16/1.0 M10 28 28 1.4 10,000 HPS13- 60 1.0 13.0 60 49 GER20/1.0 M13 35 35 1.1 10,000 90 1.0 13.0 90 49 GER20/1.0 M13 35 35 1.3 10,000 120 1.0 13.0 120 49 GER20/1.0 M13 35 35 1.5 10,000 150 1.0 13.0 150 49 GER20/1.0 M13 35 35 1.8 10,000 HPS16- 60 1.0 16.0 60 50 GER25/1.0 M18 42 42 1.2 10,000 90 1.0 16.0 90 50 GER25/1.0 M18 42 42 1.4 10,000 120 1.0 16.0 120 50 GER25/1.0 M18 42 42 1.6 10,000 HPS20- 60 1.0 20.0 60 60 GER32/1.0 M7 50 44 1.1 10,000 90 1.0 20.0 90 60 GER32/1.0 M22 50 44 1.4 10,000 120 1.0 20.0 120 60 GER32/1.0 M22 50 44 1.7 10,000 Spare Part I30 Through coolant system is optional. Collets in the right size are recommended for oil hole type. Tooling System 29
