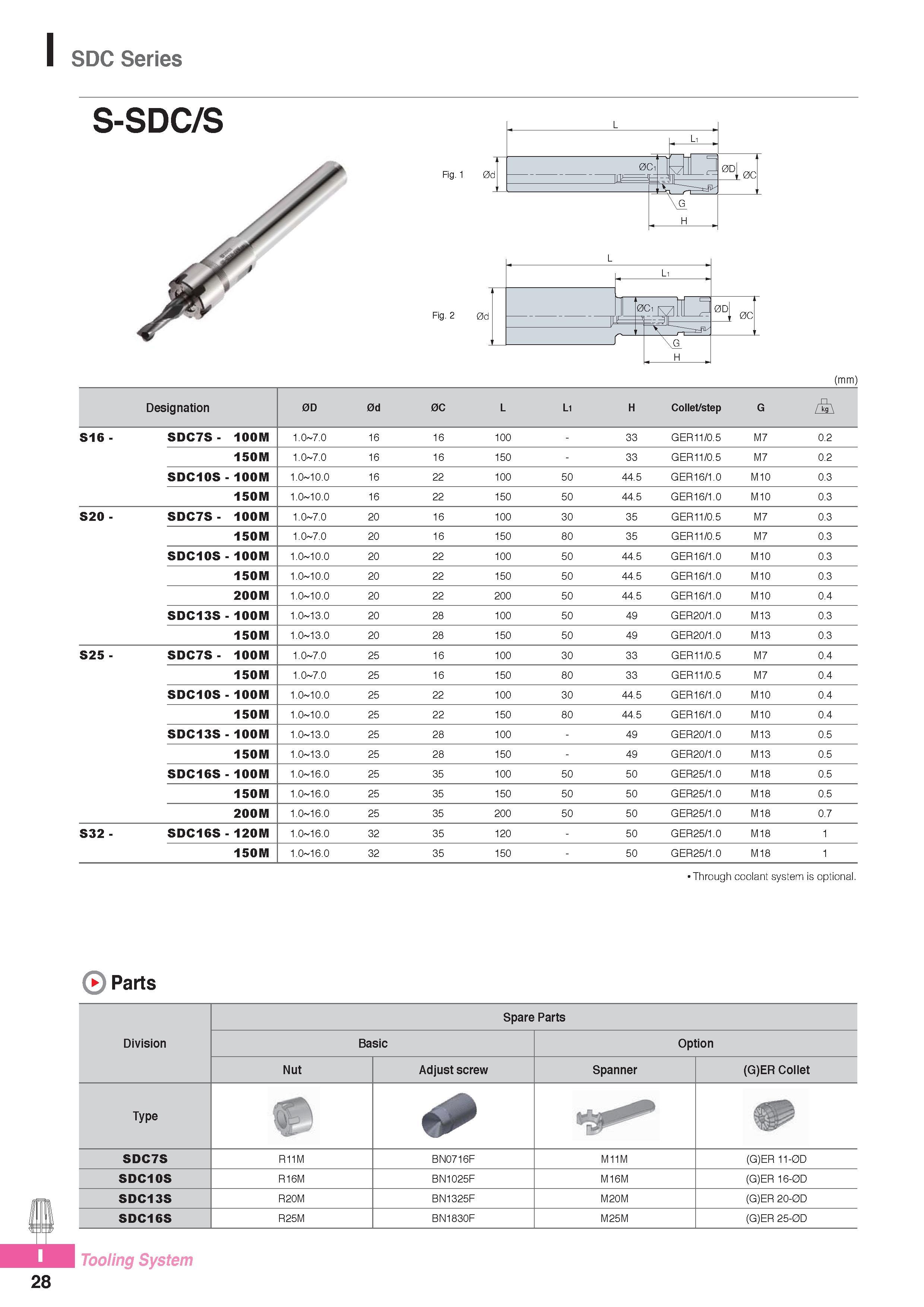

SDC Series S-SDC/S Fig. 1 Fig. 2 (mm) Designation 0D 0d 0C L Li H Collet/step G S16 - SDC7S- 100M 1.0 7.0 16 16 100 - 33 GER11/0.5 M7 0.2 150M 1.0 7.0 16 16 150 - 33 GER11/0.5 M7 0.2 SDC10S-100M 1.0 10.0 16 22 100 50 44.5 GER16/1.0 M10 0.3 150M 1.0 10.0 16 22 150 50 44.5 GER16/1.0 M10 0.3 S20 - SDC7S- 100M 1.0 7.0 20 16 100 30 35 GER11/0.5 M7 0.3 150M 1.0 7.0 20 16 150 80 35 GER11/0.5 M7 0.3 SDC10S-100M 1.0 10.0 20 22 100 50 44.5 GER16/1.0 M10 0.3 150M 1.0 10.0 20 22 150 50 44.5 GER16/1.0 M10 0.3 200M 1.0 10.0 20 22 200 50 44.5 GER16/1.0 M10 0.4 SDC13S-100M 1.0 13.0 20 28 100 50 49 GER20/1.0 M13 0.3 150M 1.0 13.0 20 28 150 50 49 GER20/1.0 M13 0.3 S25 - SDC7S- 100M 1.0 7.0 25 16 100 30 33 GER11/0.5 M7 0.4 150M 1.0 7.0 25 16 150 80 33 GER11/0.5 M7 0.4 SDC10S-100M 1.0 10.0 25 22 100 30 44.5 GER16/1.0 M10 0.4 150M 1.0 10.0 25 22 150 80 44.5 GER16/1.0 M10 0.4 SDC13S-100M 1.0 13.0 25 28 100 - 49 GER20/1.0 M13 0.5 150M 1.0 13.0 25 28 150 - 49 GER20/1.0 M13 0.5 SDC16S-100M 1.0 16.0 25 35 100 50 50 GER25/1.0 M18 0.5 150M 1.0 16.0 25 35 150 50 50 GER25/1.0 M18 0.5 200M 1.0 16.0 25 35 200 50 50 GER25/1.0 M18 0.7 S32 - SDC16S-120M 1.0 16.0 32 35 120 - 50 GER25/1.0 M18 1 150M 1.0 16.0 32 35 150 - 50 GER25/1.0 M18 1 Through coolant system is optional. Parts Division Spare Parts Basic Option Nut Adjust screw Spanner (G)ER Collet Type 9 SDC7S R11M BN0716F M11M (G)ER 11-0D SDC10S R16M BN1025F M16M (G)ER 16-0D SDC13S R20M BN1325F M20M (G)ER 2O-0D SDC16S R25M BN1830F M25M (G)ER 25-0D 1 Tooling System 28
