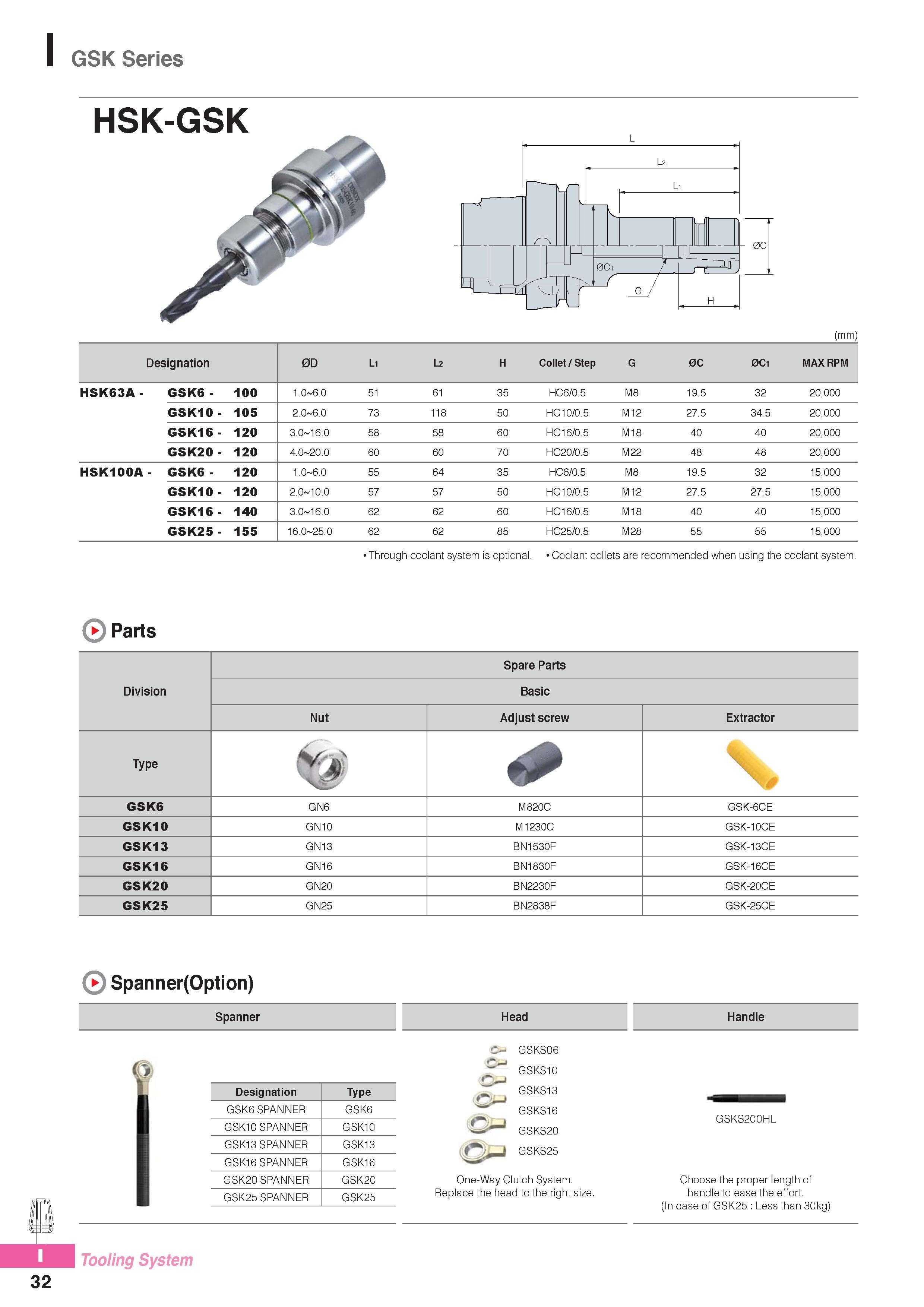

GSK Series HSK-GSK (mm) Designation 0D Li l_2 H Collet / Step G 0C 0Ci MAX RPM HSK63A - GSK6 - 100 1.0-6.0 51 61 35 HC6/0.5 M8 19.5 32 20,000 GSK10 - 105 2.0-6.0 73 118 50 HC10/0.5 M12 27.5 34.5 20,000 GSK16- 120 3.0 16.0 58 58 60 HC16/0.5 M18 40 40 20,000 GSK20- 120 4.0 20.0 60 60 70 HC20/0.5 M22 48 48 20,000 HSK100A - GSK6 - 120 1.0 6.0 55 64 35 HC6/0.5 M8 19.5 32 15,000 GSK10- 120 2.0 10.0 57 57 50 HC10/0.5 M12 27.5 27.5 15,000 GSK16- 140 3.0 16.0 62 62 60 HC16/0.5 M18 40 40 15,000 GSK25- 155 16.0 25.0 62 62 85 HC25/0.5 M28 55 55 15,000 Through coolant system is optional. Coolant collets are recommended when using the coolant system. Parts Spare Parts Division Basic Nut Adjust screw Extractor Type GSK6 GN6 M820C GSK-6CE GSK10 GN10 M1230C GSK-10CE GSK13 GN13 BN1530F GSK-13CE GSK16 GN16 BN1830F GSK-16CE GSK20 GN20 BN2230F GSK-20CE GSK25 GN25 BN2838F GSK-25CE Spanner(Option) Spanner Head Handle Designation Type GSK6 SPANNER GSK6 GSK10 SPANNER GSK10 GSK13 SPANNER GSK13 GSK16 SPANNER GSK16 GSK20 SPANNER GSK20 GSK25 SPANNER GSK25 One-Way Clutch System. Replace the head to the right size. GSKS200HL Choose the proper length of handle to ease the effort. (In case of GSK25 Less than 30kg) Tooling System 32
