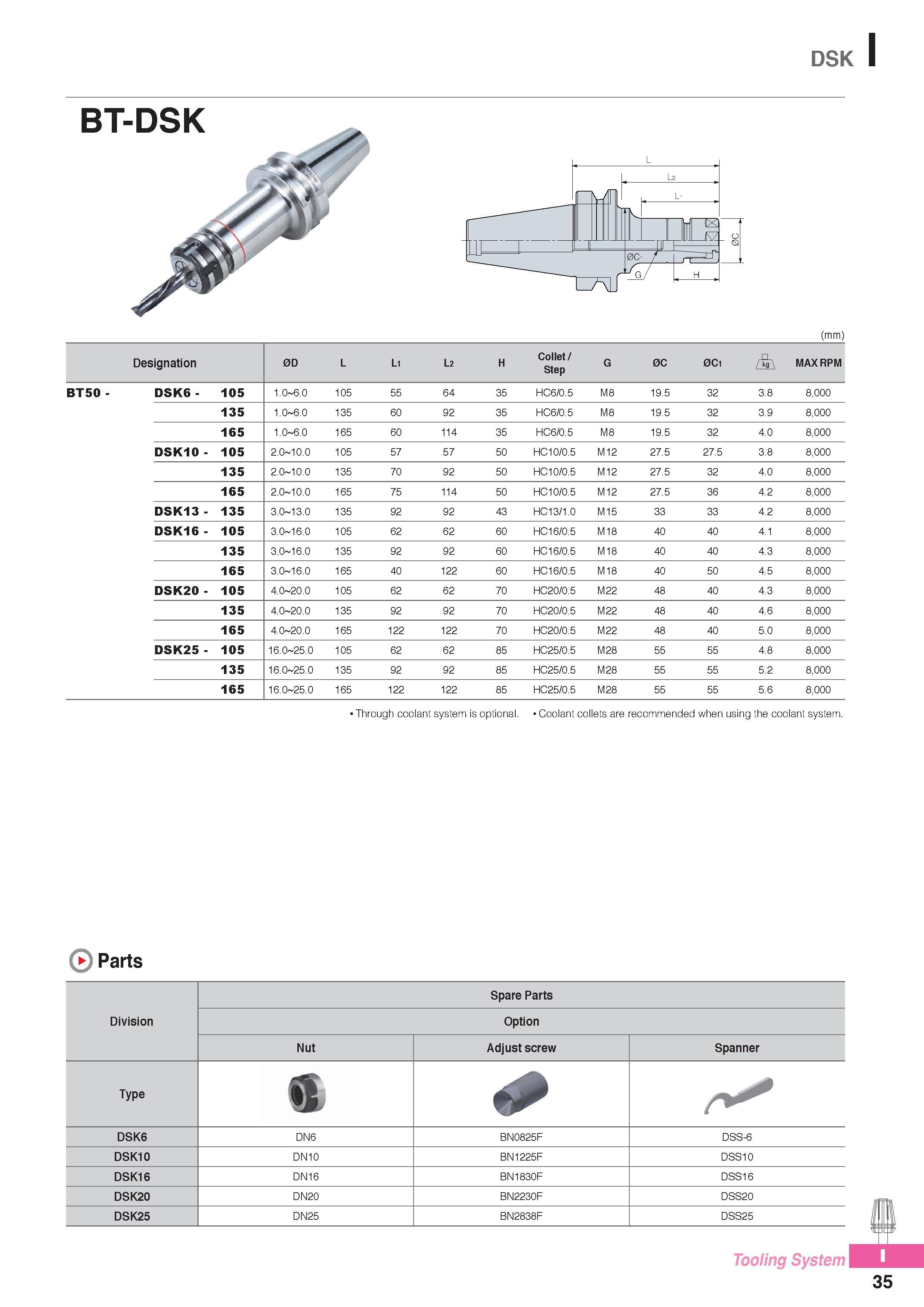

DSK I (mm) Designation 0D L L1 L2 H Collet / Step G 0C 0C1 MAX RPM BT50 - DSK6 - 105 1.0 6.0 105 55 64 35 HC6/0.5 M8 19.5 32 3.8 8,000 135 1.0 6.0 135 60 92 35 HC6/0.5 M8 19.5 32 3.9 8,000 165 1.0 6.0 165 60 114 35 HC6/0.5 M8 19.5 32 4.0 8,000 DSK10- 105 2.0 10.0 105 57 57 50 HC10/0.5 M12 27.5 27.5 3.8 8,000 135 2.0 10.0 135 70 92 50 HC10/0.5 M12 27.5 32 4.0 8,000 165 2.0 10.0 165 75 114 50 HC10/0.5 M12 27.5 36 4.2 8,000 DSK13- 135 3.0 13.0 135 92 92 43 HC13/1.0 M15 33 33 4.2 8,000 DSK16- 105 3.0 16.0 105 62 62 60 HC16/0.5 M18 40 40 4.1 8,000 135 3.0 16.0 135 92 92 60 HC16/0.5 M18 40 40 4.3 8,000 165 3.0 16.0 165 40 122 60 HC16/0.5 M18 40 50 4.5 8,000 DSK20- 105 4.0 20.0 105 62 62 70 HC20/0.5 M22 48 40 4.3 8,000 135 4.0 20.0 135 92 92 70 HC20/0.5 M22 48 40 4.6 8,000 165 4.0 20.0 165 122 122 70 HC20/0.5 M22 48 40 5.0 8,000 DSK25- 105 16.0 25.0 105 62 62 85 HC25/0.5 M28 55 55 4.8 8,000 135 16.0 25.0 135 92 92 85 HC25/0.5 M28 55 55 5.2 8,000 165 16.0 25.0 165 122 122 85 HC25/0.5 M28 55 55 5.6 8,000 Through coolant system is optional. Coolant collets are recommended when using the coolant system. Parts Division Spare Parts Option Nut Adjust screw Spanner Type n DSK6 DN6 BN0825F DSS-6 DSK10 DN10 BN1225F DSS10 DSK16 DN16 BN1830F DSS16 DSK20 DN20 BN2230F DSS20 DSK25 DN25 BN2838F DSS25 Tooling Syste l 35
