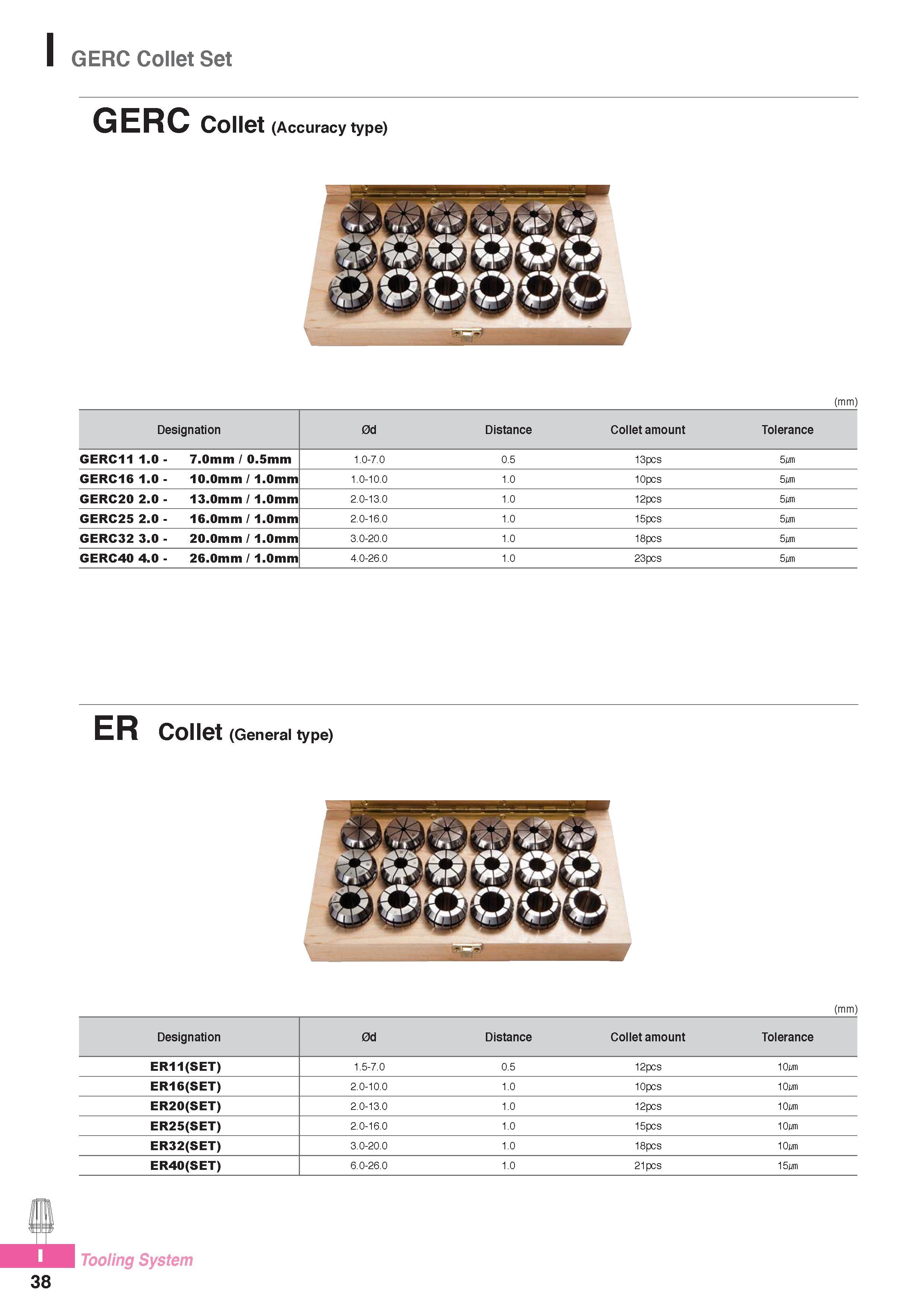

I GERC Collet Set GERC Collet (Accuracy type) (mm) Designation 0d Distance Collet amount Tolerance GERC11 1.0 - 7.0mm / 0.5mm 1.0-7.0 0.5 13pcs 5wm GERC16 1.0 - 10.0mm / 1.0mm 1.0-10.0 1.0 10pcs 5wm GERC20 2.0 - 13.0mm / 1.0mm 2.0-13.0 1.0 12pcs 5wm GERC25 2.0 - 16.0mm / 1.0mm 2.0-16.0 1.0 15pcs 5jjm GERC32 3.0 - 20.0mm / 1.0mm 3.0-20.0 1.0 18pcs 5jjm GERC40 4.0 - 26.0mm / 1.0mm 4.0-26.0 1.0 23pcs 5jjm ER Collet (General type) Tooling System 38 (mm) Designation 0d Distance Collet amount Tolerance ER11(SET) 1.5-7.0 0.5 12pcs 10j ER16(SET) 2.0-10.0 1.0 10pcs 10j ER20(SET) 2.0-13.0 1.0 12pcs 10j ER25(SET) 2.0-16.0 1.0 15pcs 10j ER32(SET) 3.0-20.0 1.0 18pcs 10ym ER40(SET) 6.0-26.0 1.0 21pcs 15jjm
