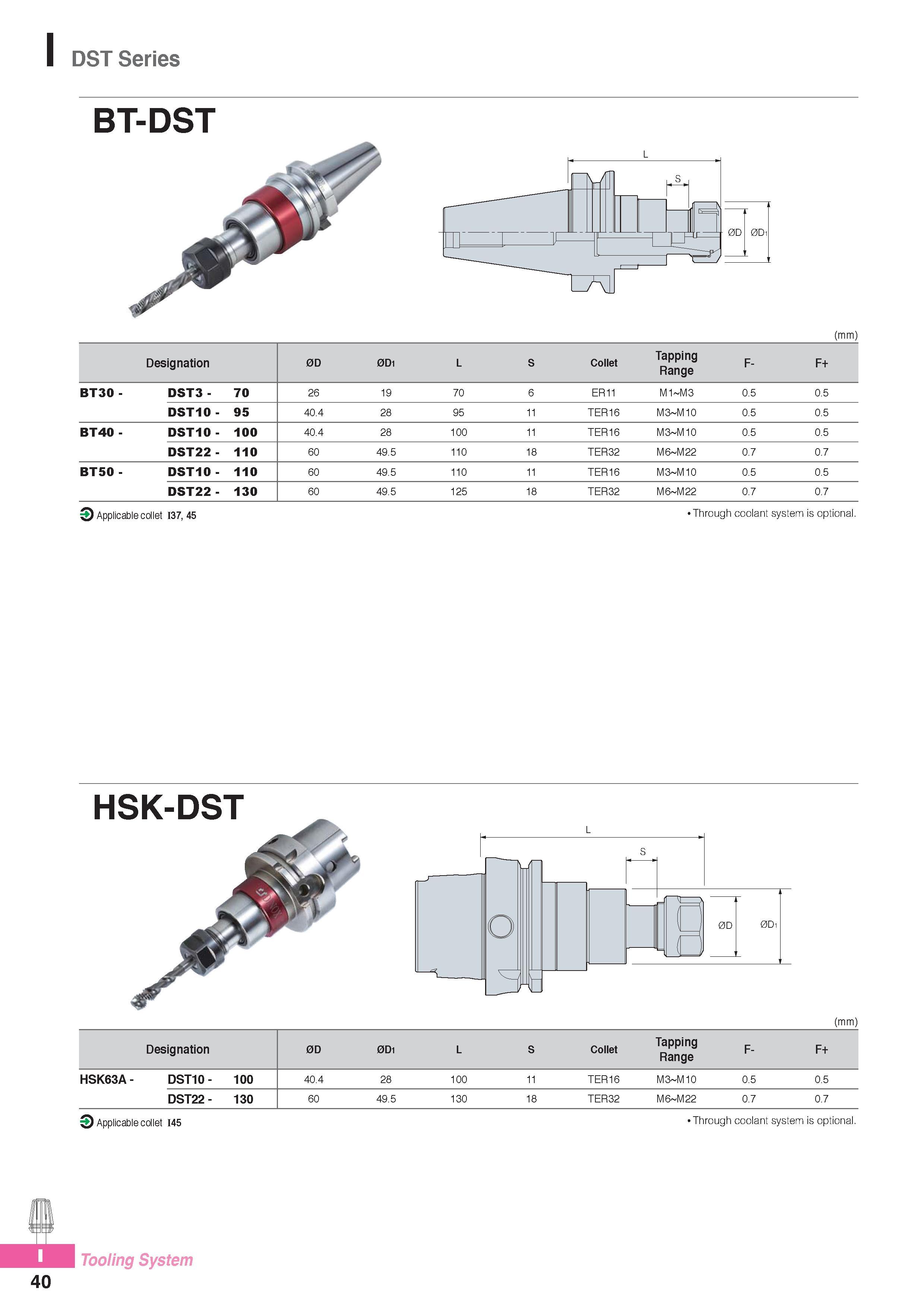

DST Series BT-DST (mm) Designation 0D 0D1 L S Collet Tapping Range F- F+ BT30 - DST3 - 70 26 19 70 6 ER11 M1 M3 0.5 0.5 DST10- 95 40.4 28 95 11 TER16 M3 M10 0.5 0.5 BT40 - DST10 - 100 40.4 28 100 11 TER16 M3 M10 0.5 0.5 DST22 - 110 60 49.5 110 18 TER32 M6 M22 0.7 0.7 BT50 - DST10 - 110 60 49.5 110 11 TER16 M3 M10 0.5 0.5 DST22 - 130 60 49.5 125 18 TER32 M6 M22 0.7 0.7 O Applicable collet I37, 45 Through coolant system is optional. HSK-DST (mm) Designation 0D 0D1 L S Collet Tapping Range F- F+ HSK63A - DST10 - 100 40.4 28 100 11 TER16 M3 M10 0.5 0.5 DST22 - 130 60 49.5 130 18 TER32 M6 M22 0.7 0.7 3 Applicable collet I45 Through coolant system is optional. Tooling System 40
