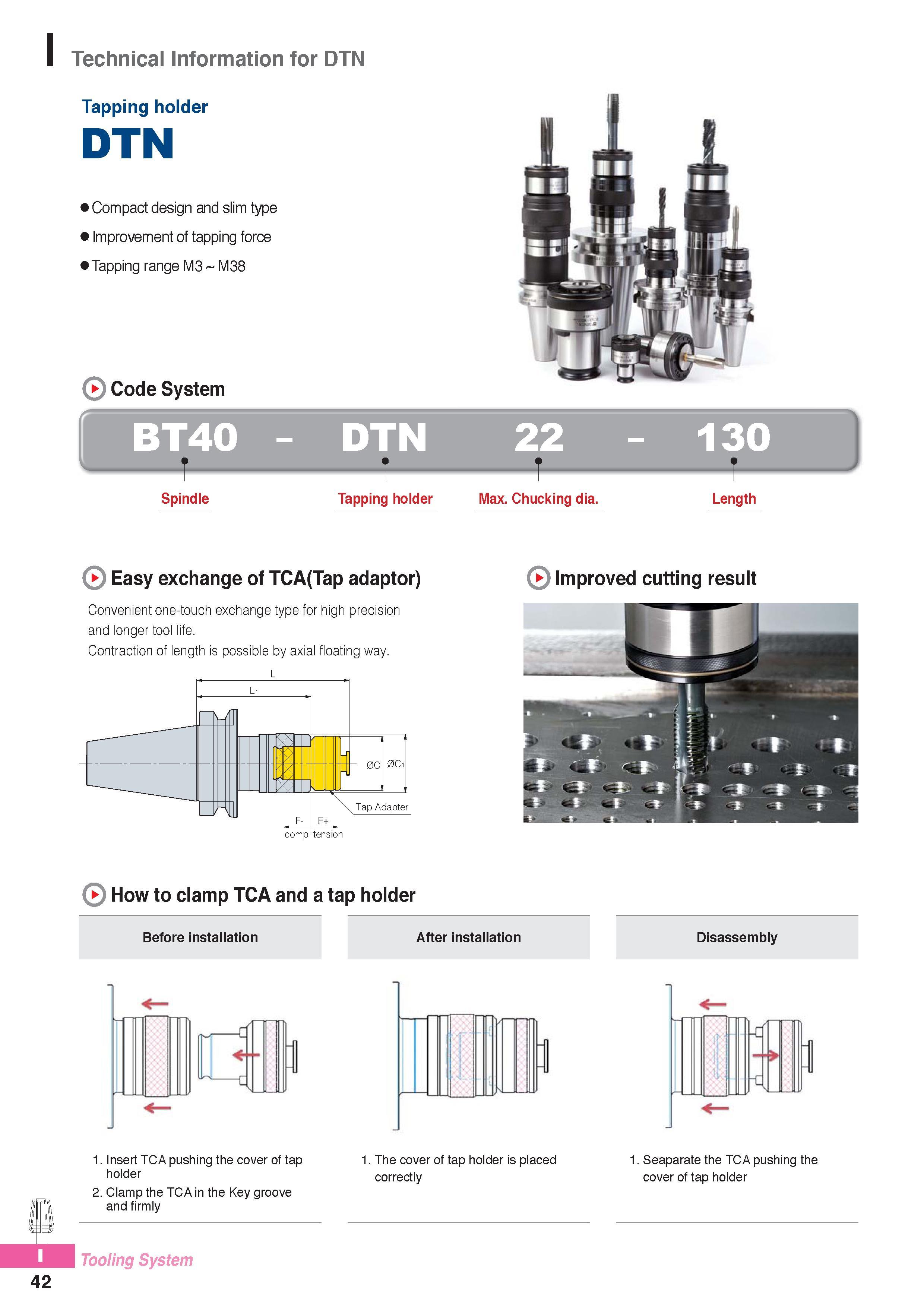

Technical Information for DTN Tapping holder DTN Compact design and slim type Improvement of tapping force Tapping range M3 M38 Code System T, 1 BT40 - DTN 22 - 130 Spindle Tapping holder Max. Chucking dia. Length I Easy exchange of TCA(Tap adaptor) Convenient one-touch exchange type for high precision and longer tool life. Contraction of length is possible by axial floating way. L i F- comp =i 0C 0Ci Tap Adapter F+ tensior Improved cutting result L How to clamp TCA and a tap holder Before installation After installation Disassembly 1. Insert TCA pushing the cover of tap holder 2. Clamp the TCA in the Key groove and firmly Tooling System 1. The cover of tap holder is placed correctly 1. Seaparate the TCA pushing the cover of tap holder 42
