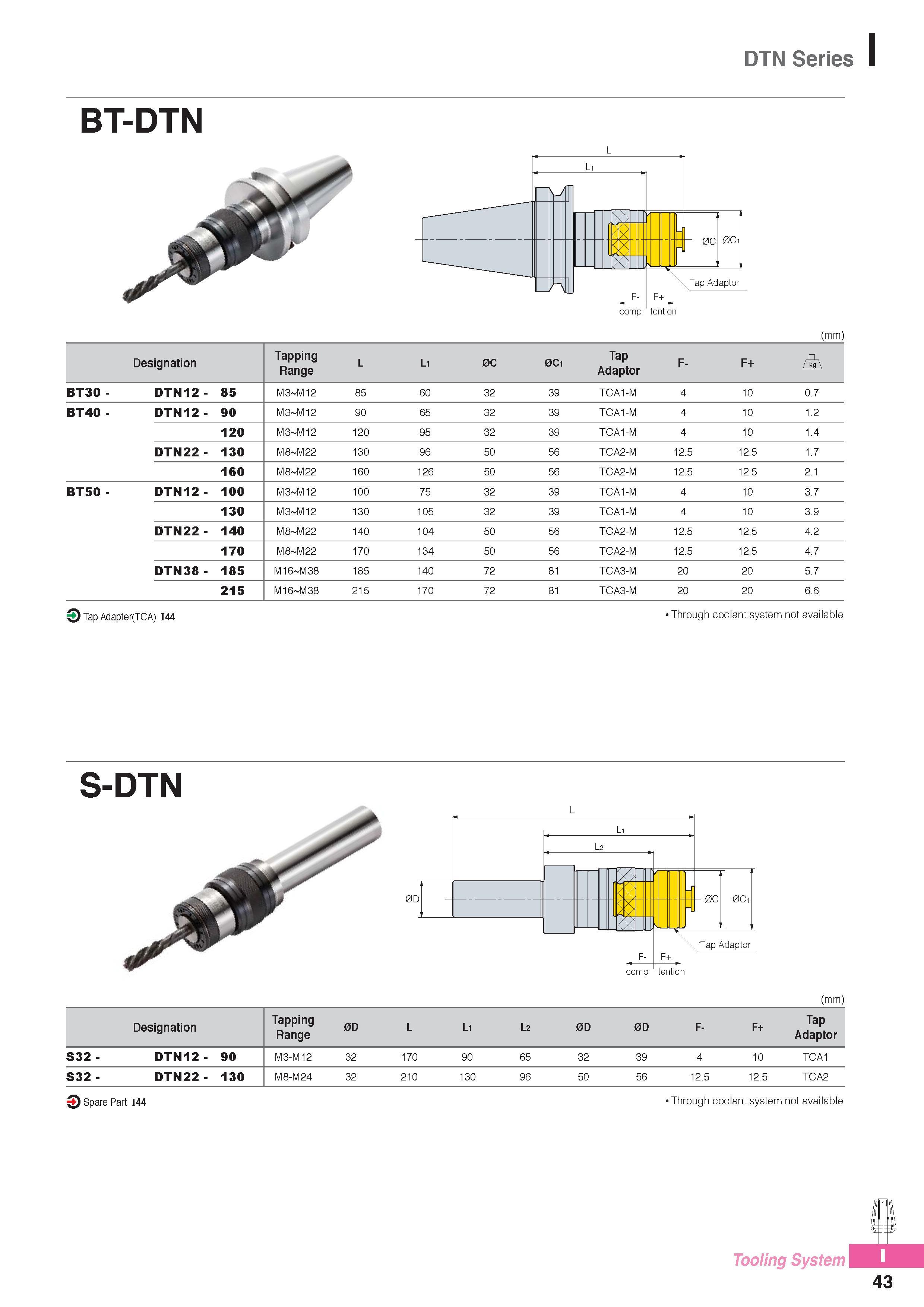

DTN Series BT-DTN (mm) Designation Tapping Range L Li 0C 0C1 Tap Adaptor F- F+ BT30 - DTN12- 85 M3 M12 85 60 32 39 TCA1-M 4 10 0.7 BT40 - DTN12- 90 M3 M12 90 65 32 39 TCA1-M 4 10 1.2 120 M3 M12 120 95 32 39 TCA1-M 4 10 1.4 DTN22- 130 M8 M22 130 96 50 56 TCA2-M 12.5 12.5 1.7 160 M8 M22 160 126 50 56 TCA2-M 12.5 12.5 2.1 BT50 - DTN12- 100 M3 M12 100 75 32 39 TCA1-M 4 10 3.7 130 M3 M12 130 105 32 39 TCA1-M 4 10 3.9 DTN22- 140 M8 M22 140 104 50 56 TCA2-M 12.5 12.5 4.2 170 M8 M22 170 134 50 56 TCA2-M 12.5 12.5 4.7 DTN38- 185 M16 M38 185 140 72 81 TCA3-M 20 20 5.7 215 M16 M38 215 170 72 81 TCA3-M 20 20 6.6 Tap Adapter(TCA) I44 Through coolant system not available L S-DTN 0D a F- comp 0C 0Ci 'Tap Adaptor F+ tention (mm) Designation Tapping Range 0D L Li L2 0D 0D F- F+ Tap Adaptor S32 - DTN12- 90 M3-M12 32 170 90 65 32 39 4 10 TCA1 S32 - DTN22- 130 M8-M24 32 210 130 96 50 56 12.5 12.5 TCA2 3 Spare Part I44 Through coolant system not available L Li Tooling System
