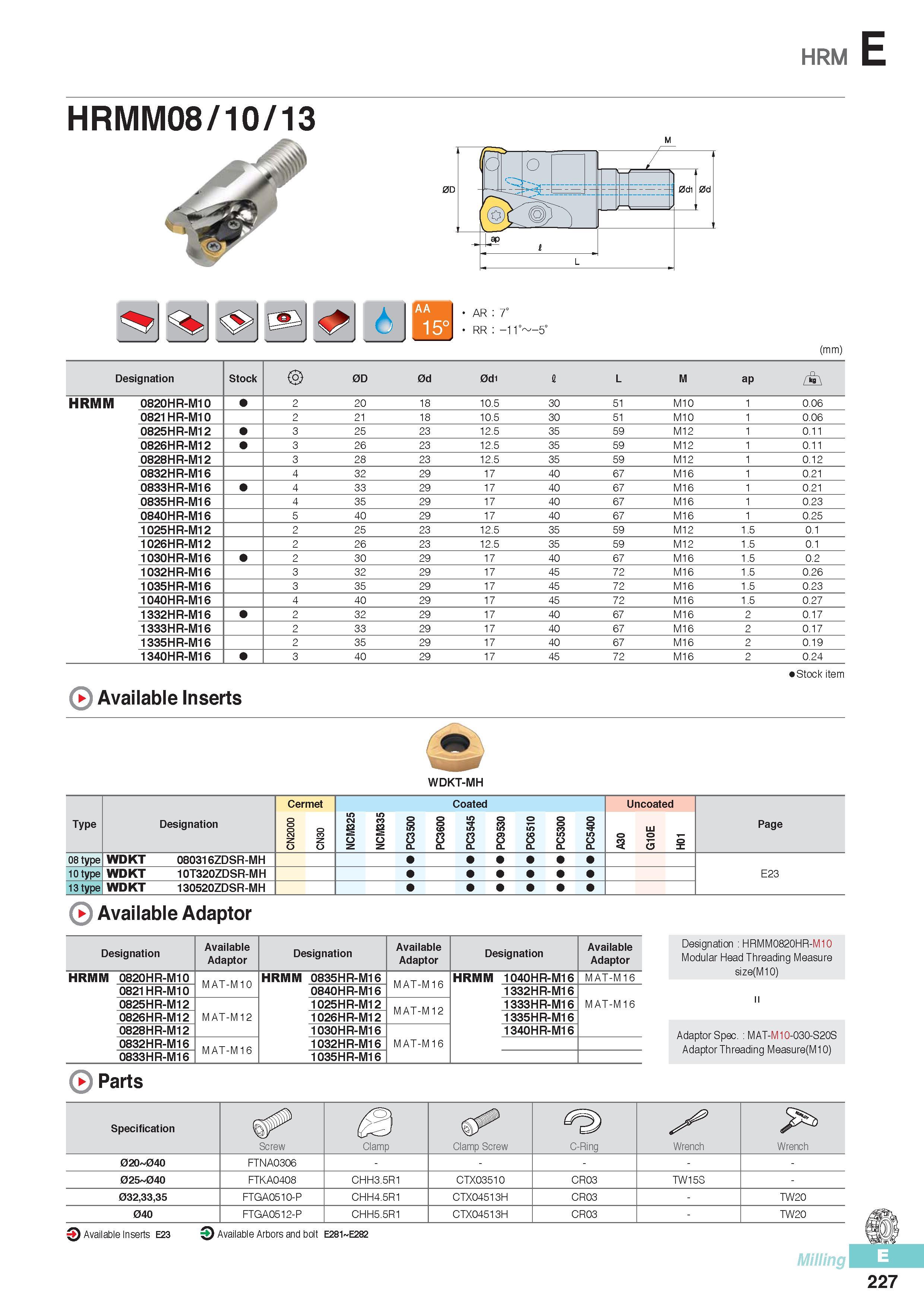

HRM E AR 7 RR -11° -5° (mm) Designation Stock 0D 0d 0di I L M ap A HRMM 0820HR-M10 2 20 18 10.5 30 51 M10 1 0.06 0821HR-M10 2 21 18 10.5 30 51 M10 1 0.06 0825HR-M12 3 25 23 12.5 35 59 M12 1 0.11 0826HR-M12 3 26 23 12.5 35 59 M12 1 0.11 0828HR-M12 3 28 23 12.5 35 59 M12 1 0.12 0832HR-M16 4 32 29 17 40 67 M16 1 0.21 0833HR-M16 4 33 29 17 40 67 M16 1 0.21 0835HR-M16 4 35 29 17 40 67 M16 1 0.23 0840HR-M16 5 40 29 17 40 67 M16 1 0.25 1025HR-M12 2 25 23 12.5 35 59 M12 1.5 0.1 1026HR-M12 2 26 23 12.5 35 59 M12 1.5 0.1 1030HR-M16 2 30 29 17 40 67 M16 1.5 0.2 1032HR-M16 3 32 29 17 45 72 M16 1.5 0.26 1035HR-M16 3 35 29 17 45 72 M16 1.5 0.23 1040HR-M16 4 40 29 17 45 72 M16 1.5 0.27 1332HR-M16 2 32 29 17 40 67 M16 2 0.17 1333HR-M16 2 33 29 17 40 67 M16 2 0.17 1335HR-M16 2 35 29 17 40 67 M16 2 0.19 1340HR-M16 3 40 29 17 45 72 M16 2 0.24 Stock item 0 Available Inserts WDKT-MH Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page 08 type WDKT 080316ZDSR-MH 10 type WDKT 10T320ZDSR-MH E23 13 type WDKT 130520ZDSR-MH ( Available Adaptor Designation Available Adaptor Designation Available Adaptor Designation Available Adaptor HRMM 0820HR-M10 MAT-M10 HRMM 0835HR-M16 MAT-M16 HRMM 1040HR-M16 MAT-M16 0821HR-M10 0840HR-M16 1332HR-M16 MAT-M16 0825HR-M12 MAT-M12 1025HR-M12 MAT-M12 1333HR-M16 0826HR-M12 1026HR-M12 1335HR-M16 0828HR-M12 1030HR-M16 MAT-M16 1340HR-M16 0832HR-M16 MAT-M16 1032HR-M16 0833HR-M16 1035HR-M16 Designation HRMM0820HR-M10 Modular Head Threading Measure size(M10) AdaptorSpec. MAT-M10-030-S20S AdaptorThreading Measure(MIO) ( Parts Specification Screw Clamp Clamp Screw C-Ring Wrench Wrench 020 040 FTNA0306 - 025 040 FTKA0408 CHH3.5R1 CTX03510 CR03 TW15S - 032,33,35 FTGA0510-P CHH4.5R1 CTX04513H CR03 - TW20 040 FTGA0512-P CHH5.5R1 CTX04513H CR03 - TW20 3 Available Inserts E23 O Available Arbors and bolt E281 E282 Milling 227
