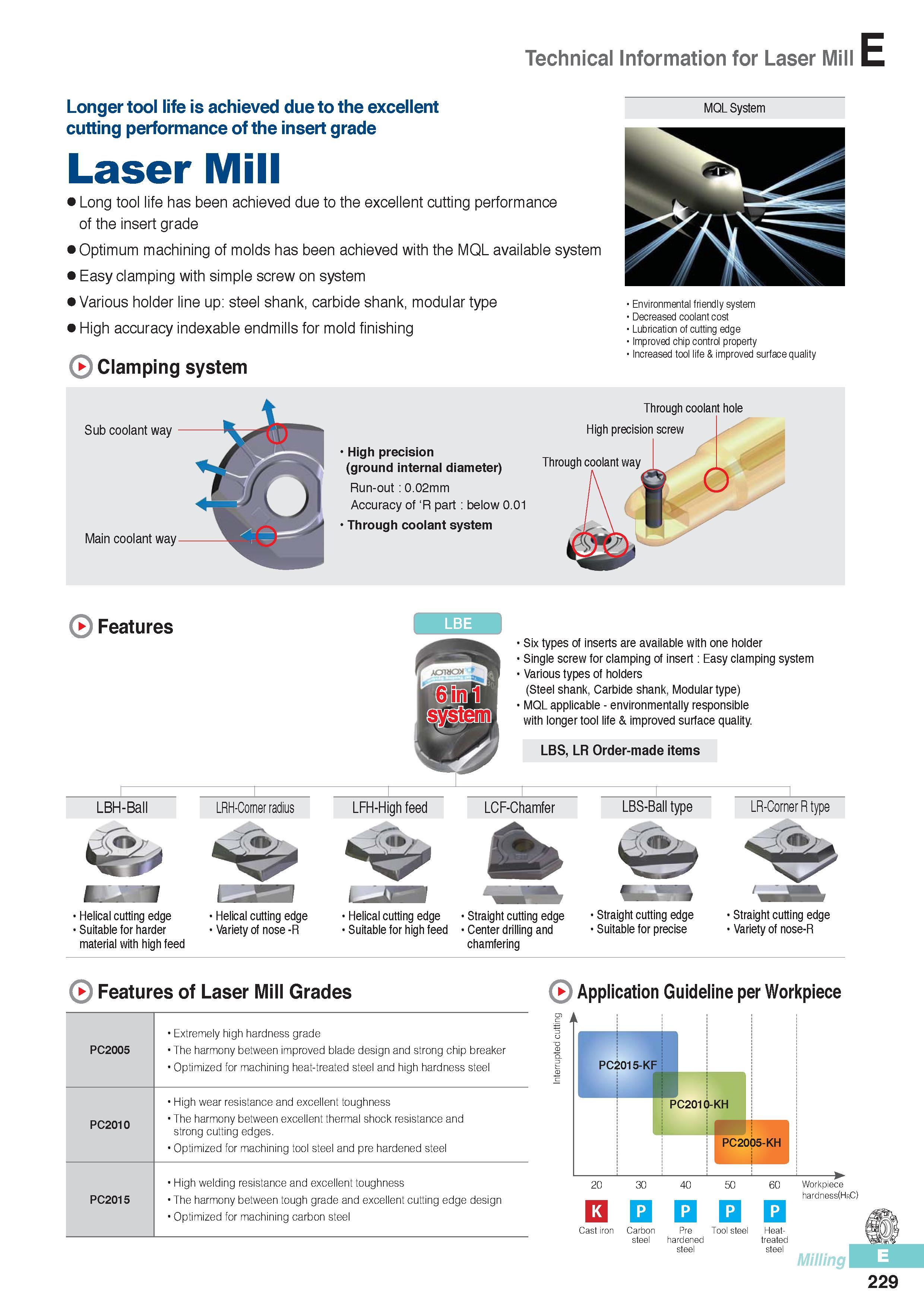

Laser Mill Korloy Long tool life has been achieved due to the excellent cutting performance of the insert grade Optimum machining of molds has been achieved with the MQL available system Easy clamping with simple screw on system Various holder line up: steel shank, carbide shank, modular type High accuracy indexable endmills for mold finishing Clamping system MQL System Environmental friendly system Decreased coolant cost Lubrication of cutting edge Improved chip control property Increased tool life &improved surface quality Features LBH-Ball LRH-Corner radius LFH-High feed LCF-Chamfer LBS-Ball type LR-CornerRtype Helical cutting edge Helical cutting edge Helical cutting edge Straight cutting edge Straight cutting edge Straight cutting edge Suitable for harder Variety of nose -R Suitable for high feed Center drilling and Suitable for precise Variety of nose-R material with high feed chamfering Six types of inserts are available with one holder Single screw for clamping of insert: Easy clamping system Various types of holders (Steel shank, Carbide shank, Modular type) MQL applicable - environmentally responsible with longer tool life & improved surface quality. LBS, LR Order-made items Features of Laser Mill Grades Application Guideline per Workpiece PC2005 Extremely high hardness grade The harmony between improved blade design and strong chip breaker Optimized for machining heat-treated steel and high hardness steel PC2010 High wear resistance and excellent toughness The harmony between excellent thermal shock resistance and strong cutting edges. Optimized for machining tool steel and pre hardened steel PC2015 High welding resistance and excellent toughness The harmony between tough grade and excellent cutting edge design Optimized for machining carbon steel J P 0 0 r Cast iron Carbon Pre Tool steel Heat-steel hardened treatec steel steel hardness(HRC) Milling 229 Technical Information for Laser Mill Longer tool life is achieved due to the excellent cutting performance of the insert grade
