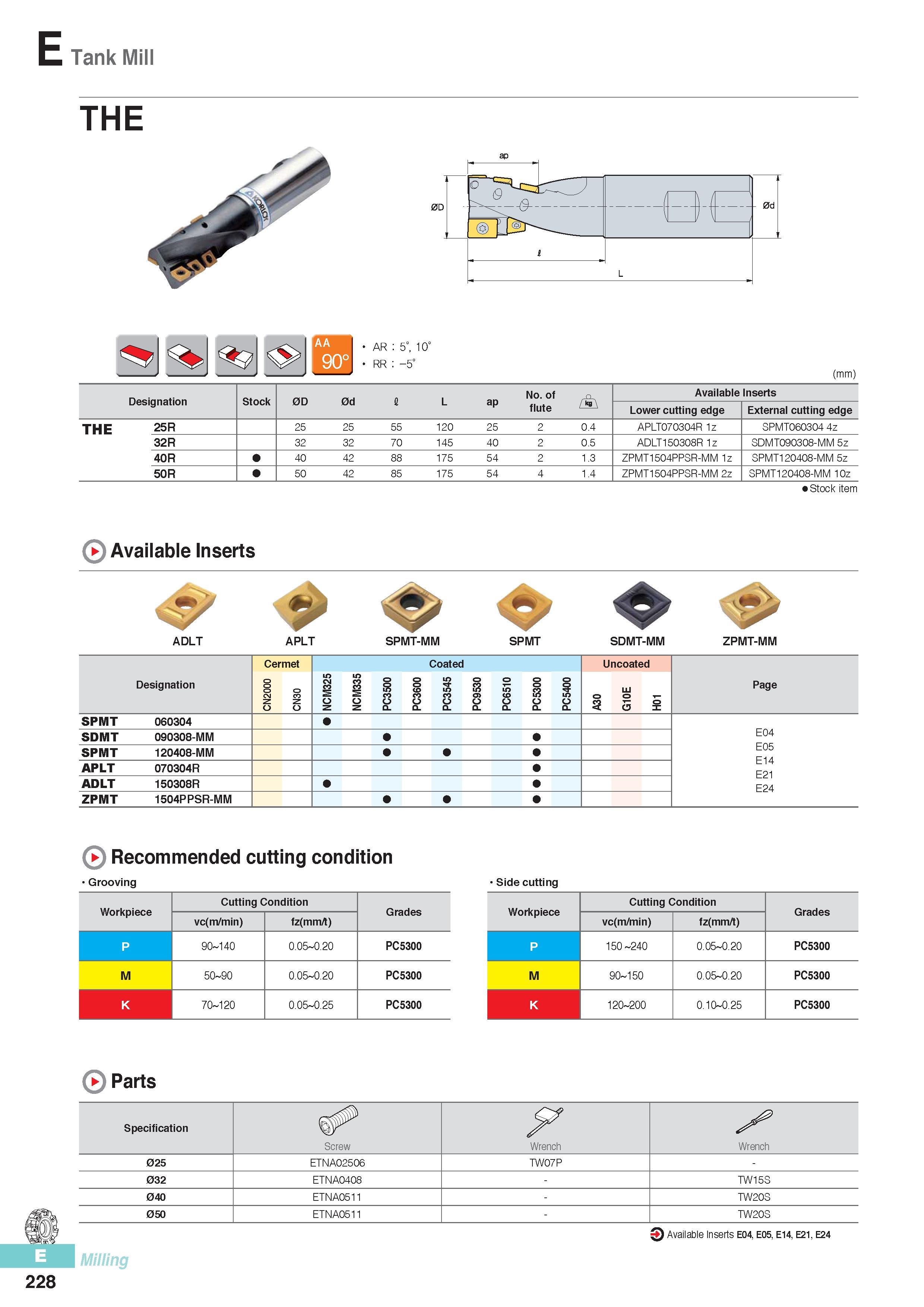

E Tank Mill THE AR 5°, 10' RR -5° (mm) Designation Stock 0D 0d I L ap No. of flute /‘ A Available Inserts Lower cutting edge External cutting edge THE 25R 25 25 55 120 25 2 0.4 APLT070304R 1z SPMT060304 4z 32R 32 32 70 145 40 2 0.5 ADLT150308R 1z SDMT090308-MM 5z 40R 40 42 88 175 54 2 1.3 ZPMT1504PPSR-MM 1z SPMT120408-MM 5z 50R 50 42 85 175 54 4 1.4 ZPMT1504PPSR-MM 2z SPMT120408-MM 10z Stock item ( Available Inserts ADLT APLT SPMT-MM SPMT SDMT-MM ZPMT-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SPMT 060304 E04 E05 E14 E21 E24 SDMT 090308-MM SPMT 120408-MM APLT 070304R ADLT 150308R ZPMT 1504PPSR-MM ( Recommended cutting condition Grooving Side cutting Workpiece Cutting Condition Grades Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) vc(m/min) fz(mm/t) P 90-140 0.05-0.20 PC5300 P 150-240 0.05-0.20 PC5300 M 50-90 0.05-0.20 PC5300 M 90-150 0.05-0.20 PC5300 K 70-120 0.05-0.25 PC5300 K 120-200 0.10-0.25 PC5300 ( Parts Specification Screw y Wrench s Wrench 025 ETNA02506 TW07P - 032 ETNA0408 TW15S 040 ETNA0511 TW20S 050 ETNA0511 TW20S Milling Q Available Inserts E04, E05, E14, E21, E24 228
