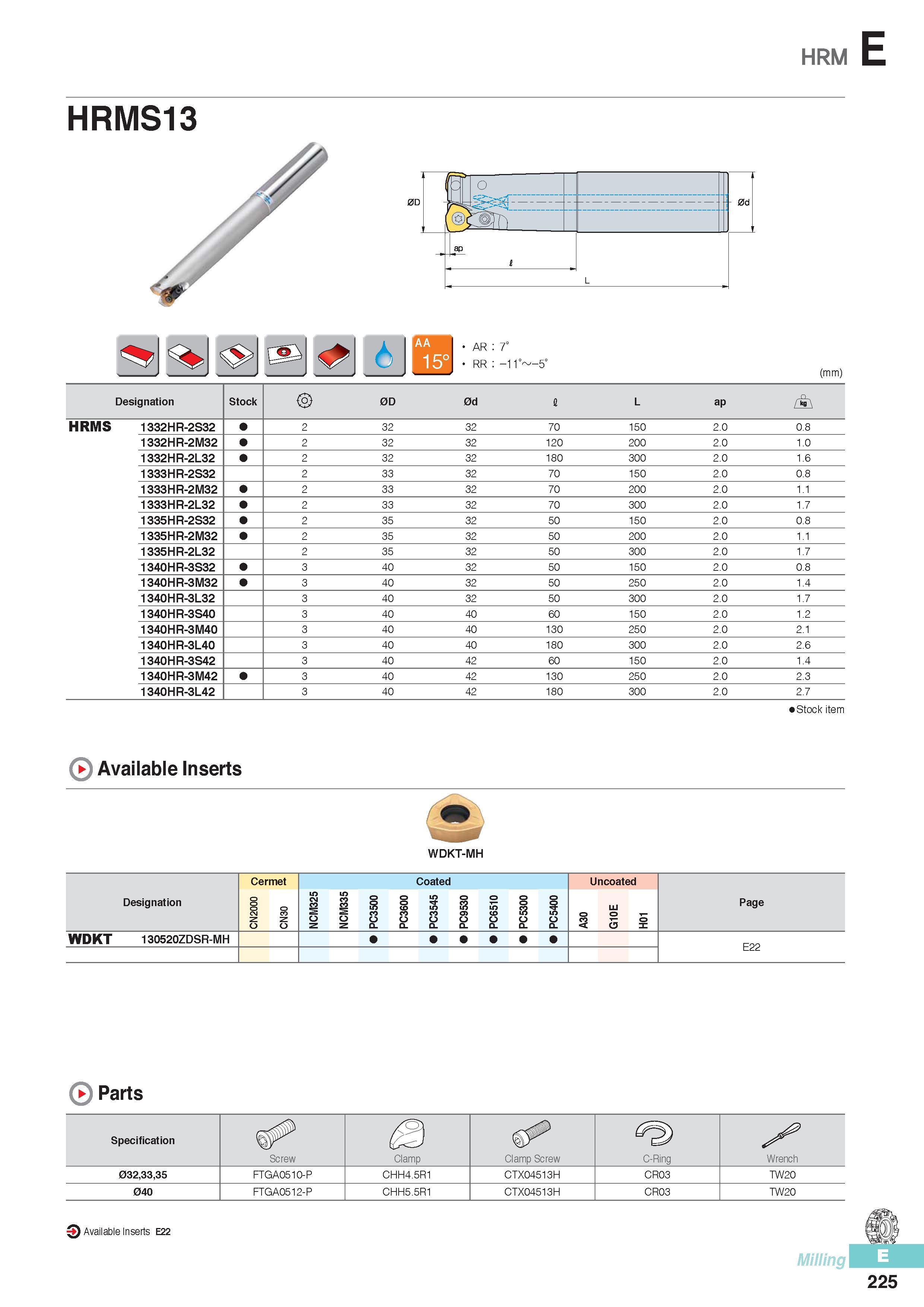

HRM E HRMS13 AR 7° RR -11° -5° (mm) Designation Stock 0D 0d I L ap A HRMS 1332HR-2S32 2 32 32 70 150 2.0 0.8 1332HR-2M32 2 32 32 120 200 2.0 1.0 1332HR-2L32 2 32 32 180 300 2.0 1.6 1333HR-2S32 2 33 32 70 150 2.0 0.8 1333HR-2M32 2 33 32 70 200 2.0 1.1 1333HR-2L32 2 33 32 70 300 2.0 1.7 1335HR-2S32 2 35 32 50 150 2.0 0.8 1335HR-2M32 2 35 32 50 200 2.0 1.1 1335HR-2L32 2 35 32 50 300 2.0 1.7 1340HR-3S32 3 40 32 50 150 2.0 0.8 1340HR-3M32 3 40 32 50 250 2.0 1.4 1340HR-3L32 3 40 32 50 300 2.0 1.7 1340HR-3S40 3 40 40 60 150 2.0 1.2 1340HR-3M40 3 40 40 130 250 2.0 2.1 1340HR-3L40 3 40 40 180 300 2.0 2.6 1340HR-3S42 3 40 42 60 150 2.0 1.4 1340HR-3M42 3 40 42 130 250 2.0 2.3 1340HR-3L42 3 40 42 180 300 2.0 2.7 Stock item 0 Available Inserts WDKT-MH Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WDKT 130520ZDSR-MH E22 0 Parts Specification 3) Screw Clamp Clamp Screw C-Ring Wrench 032,33,35 FTGA0510-P CHH4.5R1 CTX04513H CR03 TW20 040 FTGA0512-P CHH5.5R1 CTX04513H CR03 TW20 3 Available Inserts E22 Milling 225
