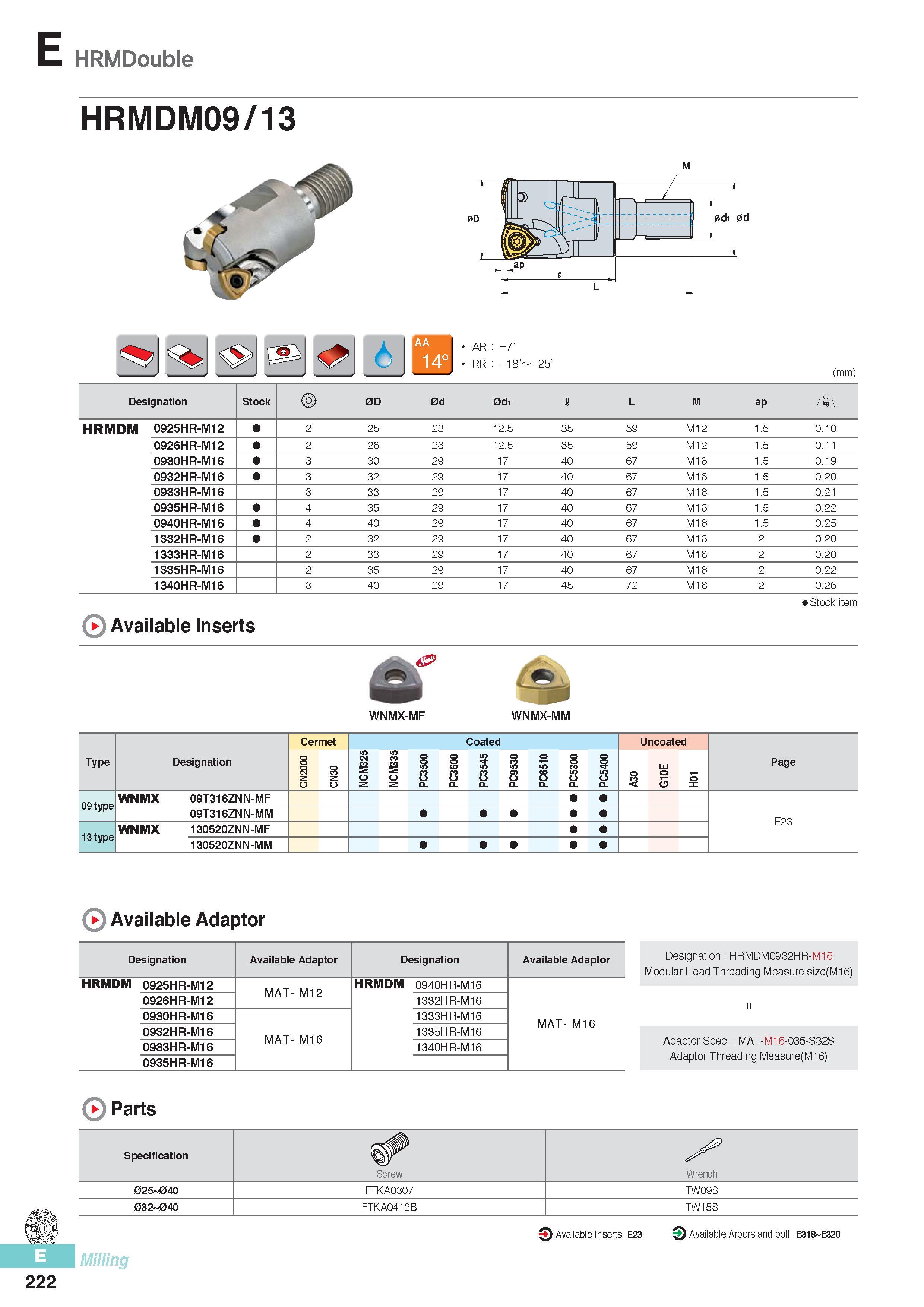

HRMDouble HRMDM09 / 13 AR -7° RR -18° -25° (mm) Designation Stock 0D 0d 0di I L M ap HRMDM 0925HR-M12 2 25 23 12.5 35 59 M12 1.5 0.10 0926HR-M12 2 26 23 12.5 35 59 M12 1.5 0.11 0930HR-M16 3 30 29 17 40 67 M16 1.5 0.19 0932HR-M16 3 32 29 17 40 67 M16 1.5 0.20 0933HR-M16 3 33 29 17 40 67 M16 1.5 0.21 0935HR-M16 4 35 29 17 40 67 M16 1.5 0.22 0940HR-M16 4 40 29 17 40 67 M16 1.5 0.25 1332HR-M16 2 32 29 17 40 67 M16 2 0.20 1333HR-M16 2 33 29 17 40 67 M16 2 0.20 1335HR-M16 2 35 29 17 40 67 M16 2 0.22 1340HR-M16 3 40 29 17 45 72 M16 2 0.26 ( Available Inserts Stock item WNMX-MF WNMX-MM Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page 09 type WNMX 09T316ZNN-MF E23 09T316ZNN-MM 13 type WNMX 130520ZNN-MF 130520ZNN-MM ( Available Adaptor Designation Available Adaptor Designation Available Adaptor HRMDM 0925HR-M12 MAT- M12 HRMDM 0940HR-M16 MAT- M16 0926HR-M12 1332HR-M16 0930HR-M16 MAT- M16 1333HR-M16 0932HR-M16 1335HR-M16 0933HR-M16 1340HR-M16 0935HR-M16 Designation HRMDM0932HR-M16 Modular Head Threading Measure size(M16) Adaptor Spec. MAT-M16-035-S32S Adaptor Threading Measure(M16) ( Parts Specification Screw Wrench 025 040 FTKA0307 TW09S 032 040 FTKA0412B TW15S Available Inserts E23 3 Available Arbors and bolt E318 E320 Milling 222
