606 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.E219

Каталог KORLOY 2016 Инструмент и оснастка Стр. E219 0606 ENG Lab2u

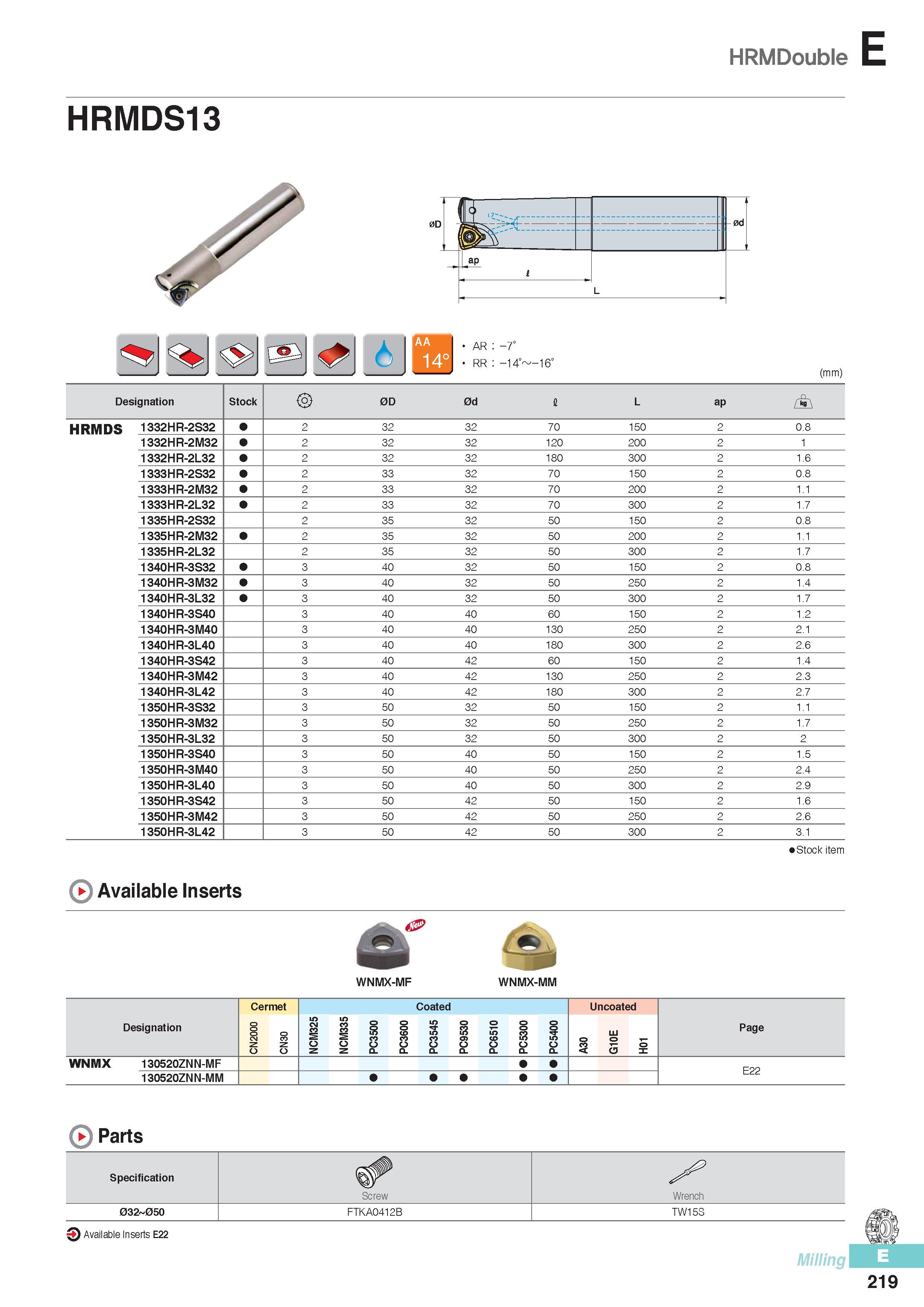

HRMDouble E HRMDS13 AR RR -7° -14° -16° (mm) Designation Stock 0D 0d I L ap A HRMDS 1332HR-2S32 2 32 32 70 150 2 0.8 1332HR-2M32 2 32 32 120 200 2 1 1332HR-2L32 2 32 32 180 300 2 1.6 1333HR-2S32 2 33 32 70 150 2 0.8 1333HR-2M32 2 33 32 70 200 2 1.1 1333HR-2L32 2 33 32 70 300 2 1.7 1335HR-2S32 2 35 32 50 150 2 0.8 1335HR-2M32 2 35 32 50 200 2 1.1 1335HR-2L32 2 35 32 50 300 2 1.7 1340HR-3S32 3 40 32 50 150 2 0.8 1340HR-3M32 3 40 32 50 250 2 1.4 1340HR-3L32 3 40 32 50 300 2 1.7 1340HR-3S40 3 40 40 60 150 2 1.2 1340HR-3M40 3 40 40 130 250 2 2.1 1340HR-3L40 3 40 40 180 300 2 2.6 1340HR-3S42 3 40 42 60 150 2 1.4 1340HR-3M42 3 40 42 130 250 2 2.3 1340HR-3L42 3 40 42 180 300 2 2.7 1350HR-3S32 3 50 32 50 150 2 1.1 1350HR-3M32 3 50 32 50 250 2 1.7 1350HR-3L32 3 50 32 50 300 2 2 1350HR-3S40 3 50 40 50 150 2 1.5 1350HR-3M40 3 50 40 50 250 2 2.4 1350HR-3L40 3 50 40 50 300 2 2.9 1350HR-3S42 3 50 42 50 150 2 1.6 1350HR-3M42 3 50 42 50 250 2 2.6 1350HR-3L42 3 50 42 50 300 2 3.1 Stock item ( Available Inserts WNMX-MF WNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WNMX 130520ZNN-MF E22 130520ZNN-MM ( Parts Specification Screw Wrench 032 050 FTKA0412B TW15S Available Inserts E22 Milling 219
