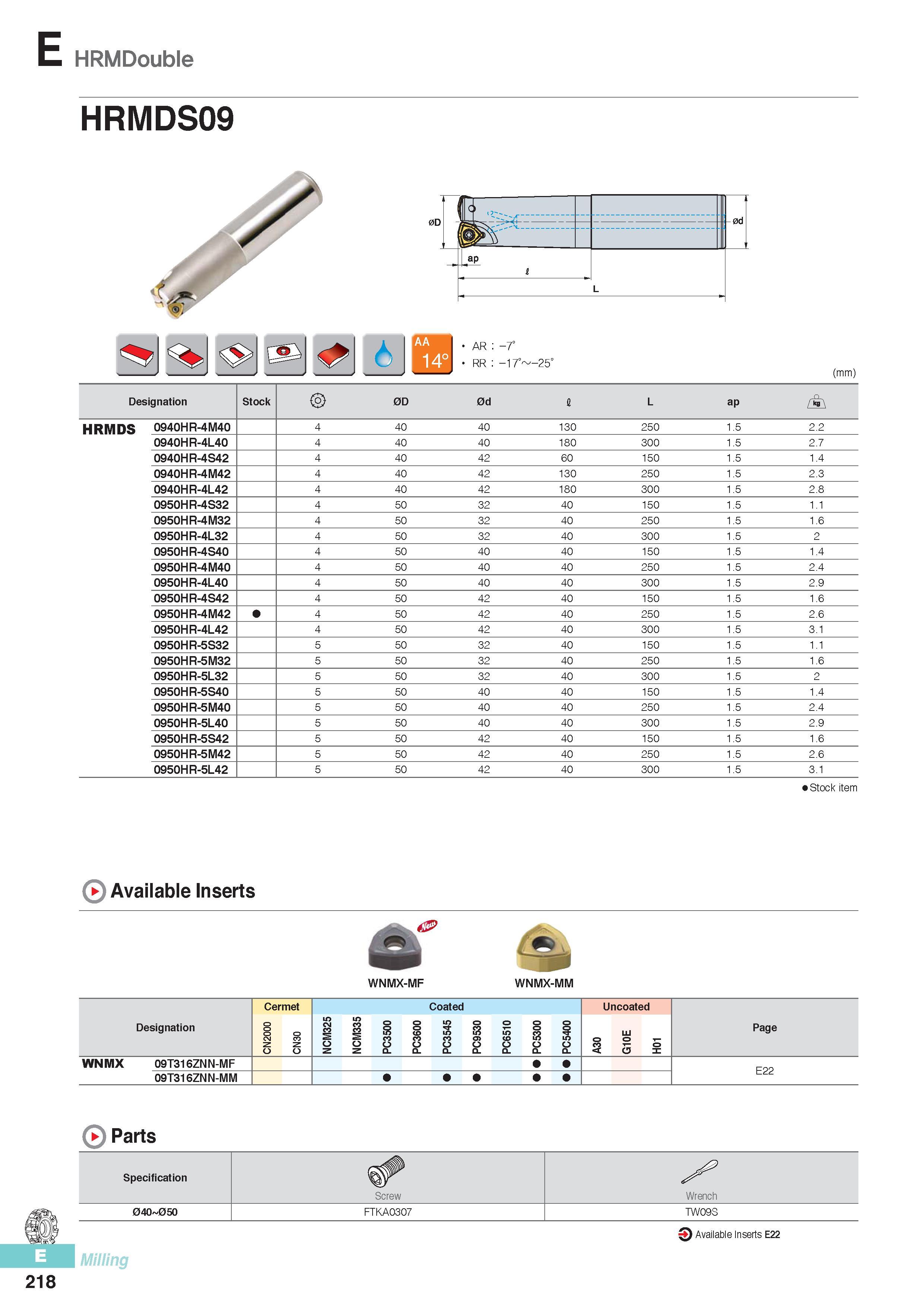

HRMDouble HRMDS09 AR -7° RR -17°' -25° (mm) Designation Stock 0D 0d I L ap HRMDS 0940HR-4M40 4 40 40 130 250 1.5 2.2 0940HR-4L40 4 40 40 180 300 1.5 2.7 0940HR-4S42 4 40 42 60 150 1.5 1.4 0940HR-4M42 4 40 42 130 250 1.5 2.3 0940HR-4L42 4 40 42 180 300 1.5 2.8 0950HR-4S32 4 50 32 40 150 1.5 1.1 0950HR-4M32 4 50 32 40 250 1.5 1.6 0950HR-4L32 4 50 32 40 300 1.5 2 0950HR-4S40 4 50 40 40 150 1.5 1.4 0950HR-4M40 4 50 40 40 250 1.5 2.4 0950HR-4L40 4 50 40 40 300 1.5 2.9 0950HR-4S42 4 50 42 40 150 1.5 1.6 0950HR-4M42 4 50 42 40 250 1.5 2.6 0950HR-4L42 4 50 42 40 300 1.5 3.1 0950HR-5S32 5 50 32 40 150 1.5 1.1 0950HR-5M32 5 50 32 40 250 1.5 1.6 0950HR-5L32 5 50 32 40 300 1.5 2 0950HR-5S40 5 50 40 40 150 1.5 1.4 0950HR-5M40 5 50 40 40 250 1.5 2.4 0950HR-5L40 5 50 40 40 300 1.5 2.9 0950HR-5S42 5 50 42 40 150 1.5 1.6 0950HR-5M42 5 50 42 40 250 1.5 2.6 0950HR-5L42 5 50 42 40 300 1.5 3.1 Stock item 0 Available Inserts WNMX-MF WNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WNMX 09T316ZNN-MF E22 09T316ZNN-MM 0 Parts Specification Screw Wrench 040 050 FTKA0307 TW09S Available Inserts E22 Milling 218
