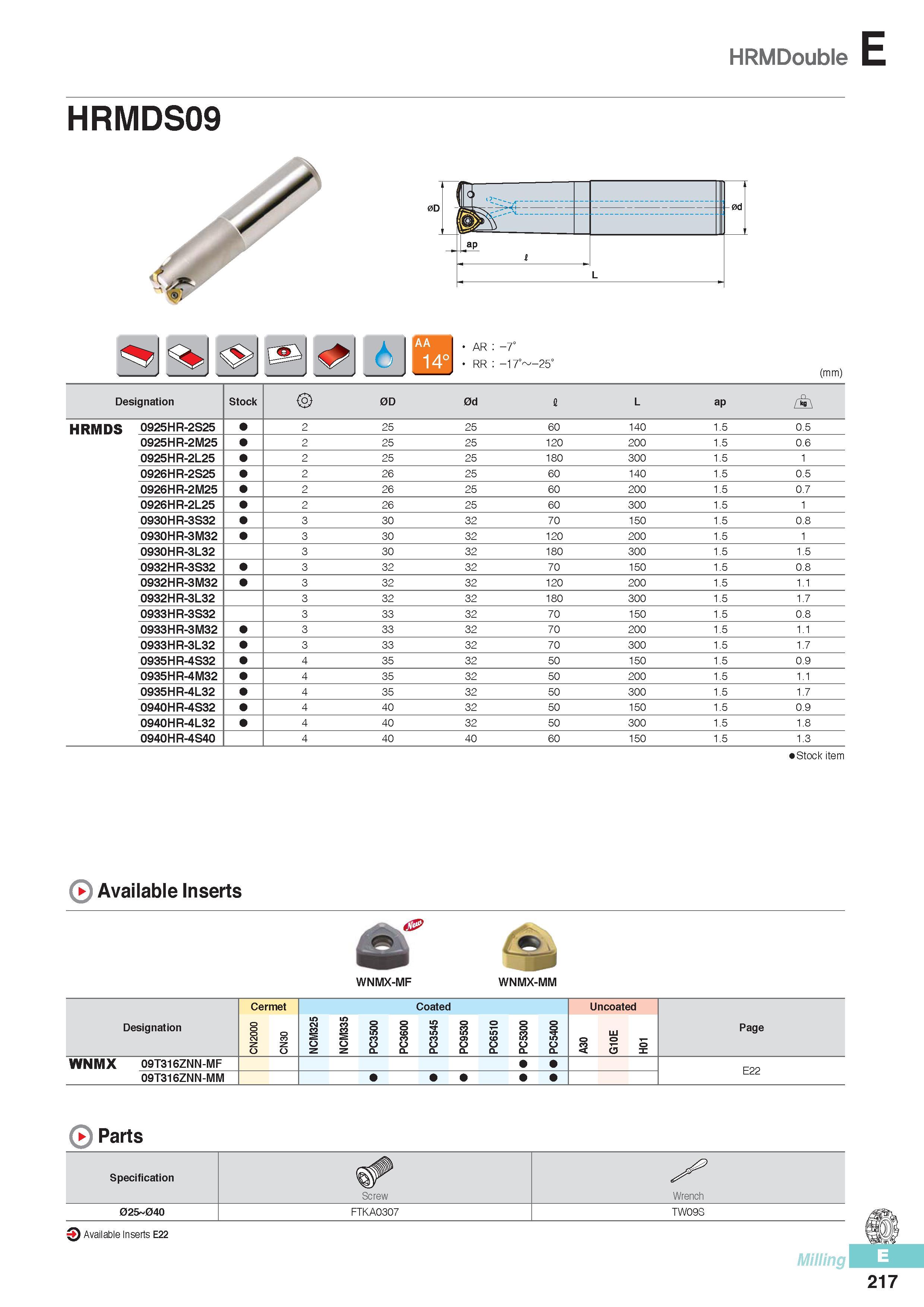

HRMDouble E HRMDS09 AR -7° RR -17° -25° (mm) Designation Stock 0D 0d I L ap A HRMDS 0925HR-2S25 2 25 25 60 140 1.5 0.5 0925HR-2M25 2 25 25 120 200 1.5 0.6 0925HR-2L25 2 25 25 180 300 1.5 1 0926HR-2S25 2 26 25 60 140 1.5 0.5 0926HR-2M25 2 26 25 60 200 1.5 0.7 0926HR-2L25 2 26 25 60 300 1.5 1 0930HR-3S32 3 30 32 70 150 1.5 0.8 0930HR-3M32 3 30 32 120 200 1.5 1 0930HR-3L32 3 30 32 180 300 1.5 1.5 0932HR-3S32 3 32 32 70 150 1.5 0.8 0932HR-3M32 3 32 32 120 200 1.5 1.1 0932HR-3L32 3 32 32 180 300 1.5 1.7 0933HR-3S32 3 33 32 70 150 1.5 0.8 0933HR-3M32 3 33 32 70 200 1.5 1.1 0933HR-3L32 3 33 32 70 300 1.5 1.7 0935HR-4S32 4 35 32 50 150 1.5 0.9 0935HR-4M32 4 35 32 50 200 1.5 1.1 0935HR-4L32 4 35 32 50 300 1.5 1.7 0940HR-4S32 4 40 32 50 150 1.5 0.9 0940HR-4L32 4 40 32 50 300 1.5 1.8 0940HR-4S40 4 40 40 60 150 1.5 1.3 Stock item 0 Available Inserts WNMX-MF WNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WNMX 09T316ZNN-MF E22 09T316ZNN-MM ( Parts Specification Screw A Wrench 025 040 FTKA0307 TW09S 3 Available Inserts E22 Milling 217
