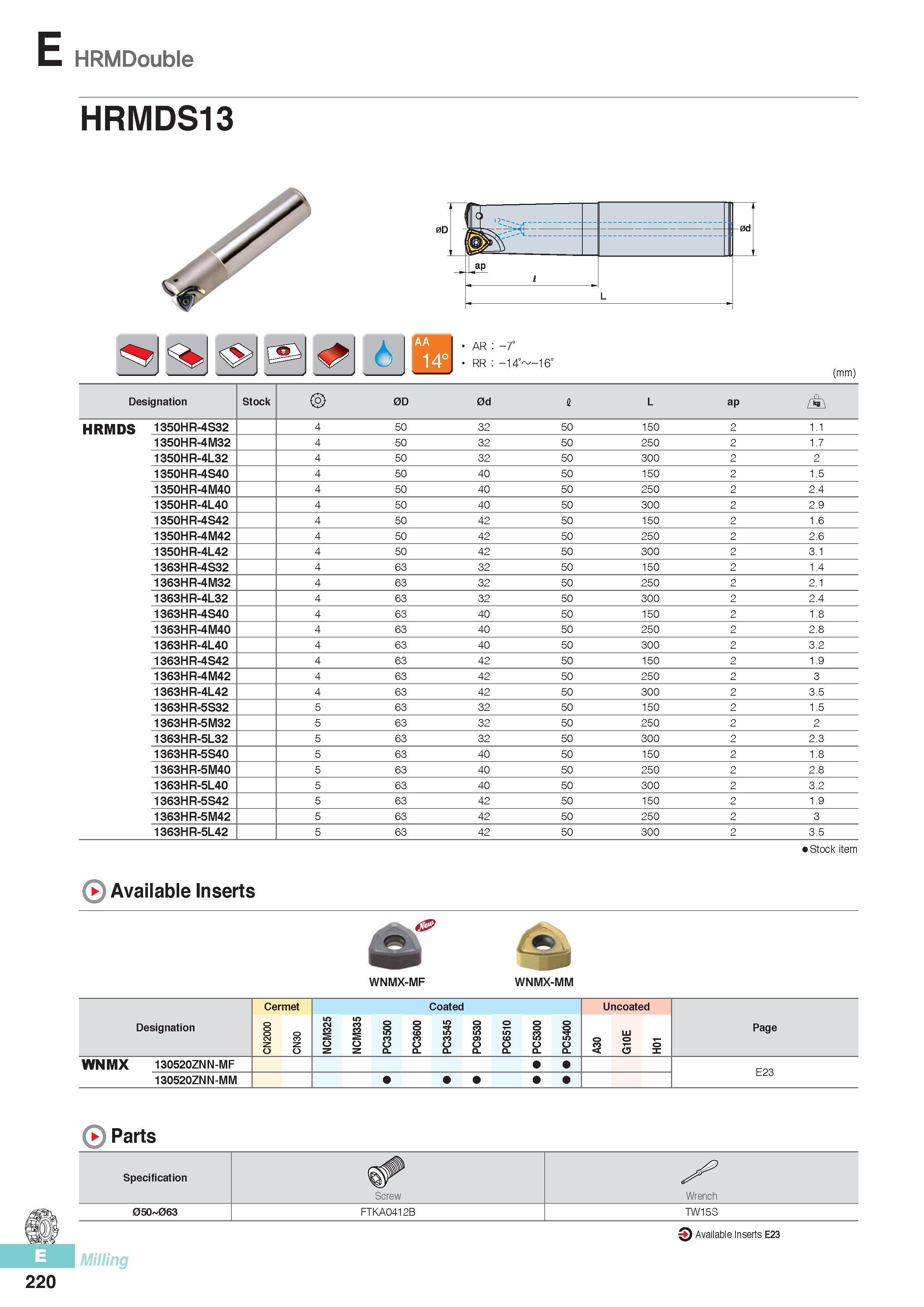

HRMDouble HRMDS13 AR -7° RR -14° -16° (mm) Designation Stock 0D 0d I L ap HRMDS 1350HR-4S32 4 50 32 50 150 2 1.1 1350HR-4M32 4 50 32 50 250 2 1.7 1350HR-4L32 4 50 32 50 300 2 2 1350HR-4S40 4 50 40 50 150 2 1.5 1350HR-4M40 4 50 40 50 250 2 2.4 1350HR-4L40 4 50 40 50 300 2 2.9 1350HR-4S42 4 50 42 50 150 2 1.6 1350HR-4M42 4 50 42 50 250 2 2.6 1350HR-4L42 4 50 42 50 300 2 3.1 1363HR-4S32 4 63 32 50 150 2 1.4 1363HR-4M32 4 63 32 50 250 2 2.1 1363HR-4L32 4 63 32 50 300 2 2.4 1363HR-4S40 4 63 40 50 150 2 1.8 1363HR-4M40 4 63 40 50 250 2 2.8 1363HR-4L40 4 63 40 50 300 2 3.2 1363HR-4S42 4 63 42 50 150 2 1.9 1363HR-4M42 4 63 42 50 250 2 3 1363HR-4L42 4 63 42 50 300 2 3.5 1363HR-5S32 5 63 32 50 150 2 1.5 1363HR-5M32 5 63 32 50 250 2 2 1363HR-5L32 5 63 32 50 300 2 2.3 1363HR-5S40 5 63 40 50 150 2 1.8 1363HR-5M40 5 63 40 50 250 2 2.8 1363HR-5L40 5 63 40 50 300 2 3.2 1363HR-5S42 5 63 42 50 150 2 1.9 1363HR-5M42 5 63 42 50 250 2 3 1363HR-5L42 5 63 42 50 300 2 3.5 Stock item ( Available Inserts WNMX-MF WNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WNMX 130520ZNN-MF E23 130520ZNN-MM ( Parts Specification Screw Wrench 050 063 FTKA0412B TW15S 3 Available Inserts E23 Milling 220
