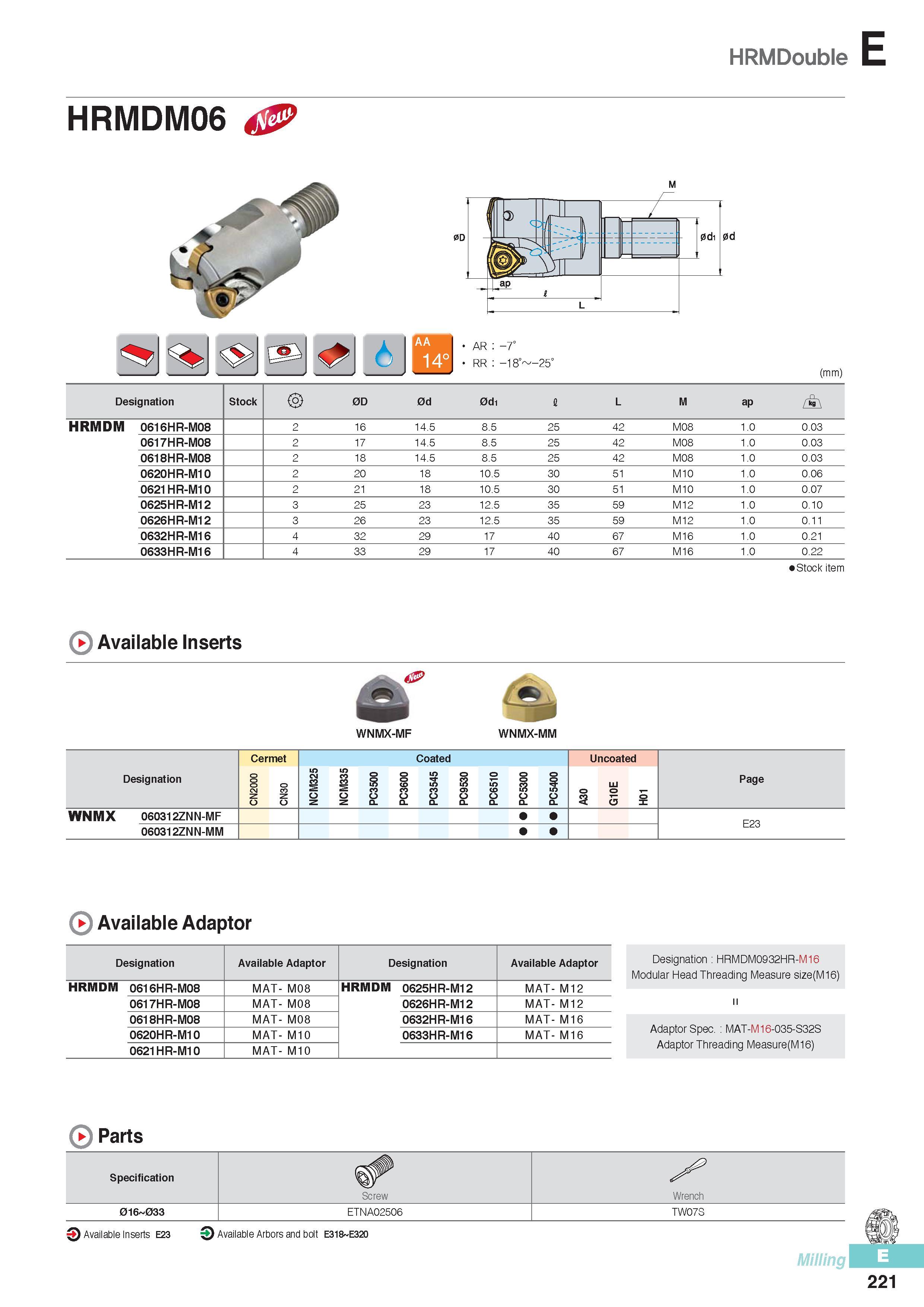

HRMDouble E HRMDM06 & AR -7° RR -18° -25° (mm) Designation Stock 0D 0d 0d1 I L M ap A HRMDM 0616HR-M08 2 16 14.5 8.5 25 42 M08 1.0 0.03 0617HR-M08 2 17 14.5 8.5 25 42 M08 1.0 0.03 0618HR-M08 2 18 14.5 8.5 25 42 M08 1.0 0.03 0620HR-M10 2 20 18 10.5 30 51 M10 1.0 0.06 0621HR-M10 2 21 18 10.5 30 51 M10 1.0 0.07 0625HR-M12 3 25 23 12.5 35 59 M12 1.0 0.10 0626HR-M12 3 26 23 12.5 35 59 M12 1.0 0.11 0632HR-M16 4 32 29 17 40 67 M16 1.0 0.21 0633HR-M16 4 33 29 17 40 67 M16 1.0 0.22 Stock item 0 Available Inserts WNMX-MF WNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WNMX 060312ZNN-MF E23 060312ZNN-MM ( Available Adaptor Designation Available Adaptor Designation Available Adaptor HRMDM 0616HR-M08 MAT- M08 HRMDM 0625HR-M12 MAT- M12 0617HR-M08 MAT- M08 0626HR-M12 MAT- M12 0618HR-M08 MAT- M08 0632HR-M16 MAT- M16 0620HR-M10 MAT- M10 0633HR-M16 MAT- M16 0621HR-M10 MAT- M10 Designation HRMDM0932HR-M16 Modular Head Threading Measure size(M16) AdaptorSpec. MAT-M16-035-S32S AdaptorThreading Measure(M16) ( Parts Specification Screw Wrench 016 033 ETNA02506 TW07S Available Inserts E23 O Available Arbors and bolt E318 E320 Milling 221
