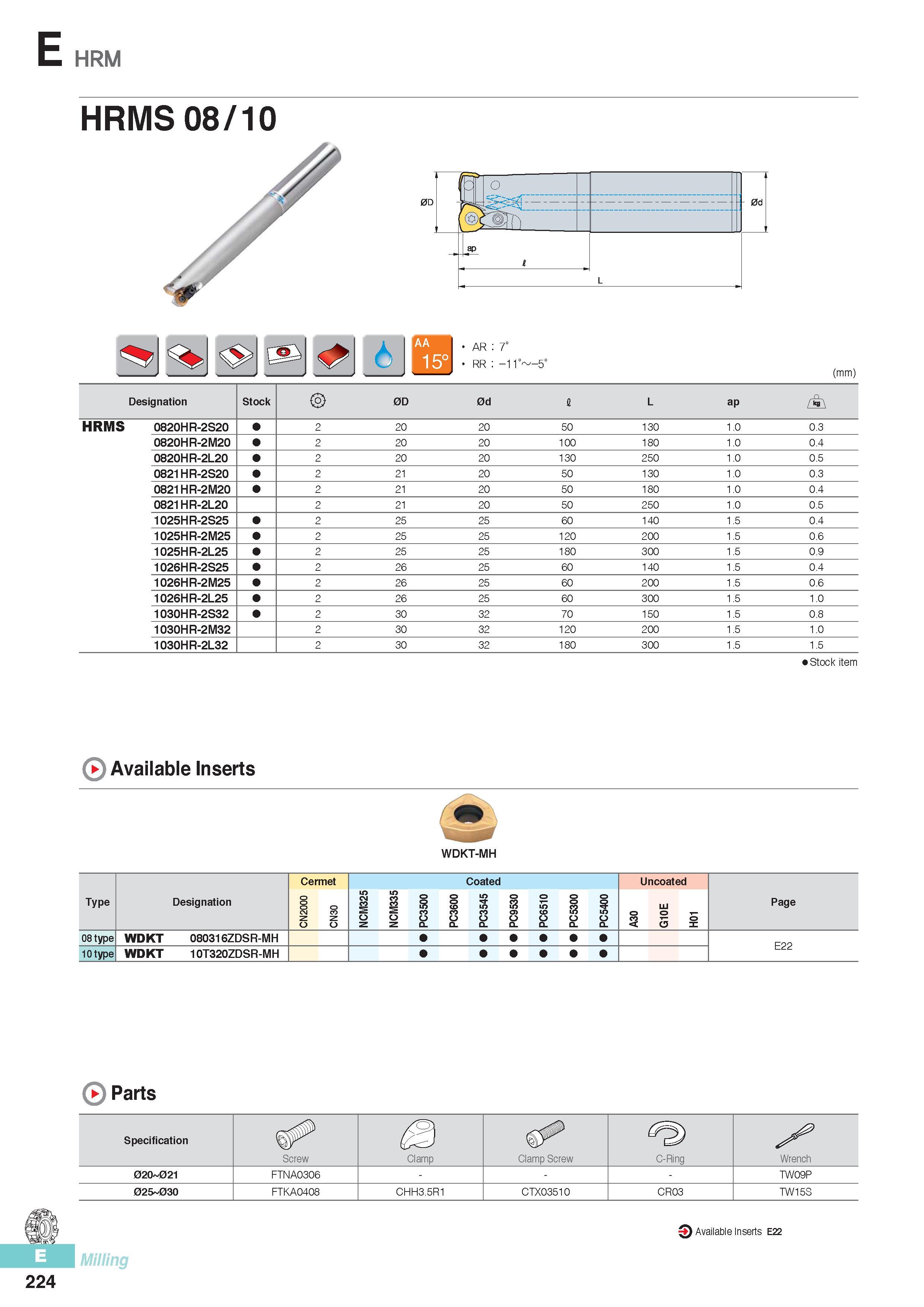

E HRM HRMS 08 / 10 AR 7° RR -11° -5° (mm) Designation Stock 0D 0d I L ap HRMS 0820HR-2S20 2 20 20 50 130 1.0 0.3 0820HR-2M20 2 20 20 100 180 1.0 0.4 0820HR-2L20 2 20 20 130 250 1.0 0.5 0821HR-2S20 2 21 20 50 130 1.0 0.3 0821HR-2M20 2 21 20 50 180 1.0 0.4 0821HR-2L20 2 21 20 50 250 1.0 0.5 1025HR-2S25 2 25 25 60 140 1.5 0.4 1025HR-2M25 2 25 25 120 200 1.5 0.6 1025HR-2L25 2 25 25 180 300 1.5 0.9 1026HR-2S25 2 26 25 60 140 1.5 0.4 1026HR-2M25 2 26 25 60 200 1.5 0.6 1026HR-2L25 2 26 25 60 300 1.5 1.0 1030HR-2S32 2 30 32 70 150 1.5 0.8 1030HR-2M32 2 30 32 120 200 1.5 1.0 1030HR-2L32 2 30 32 180 300 1.5 1.5 Stock item 0 Available Inserts WDKT-MH Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page 08 type WDKT 080316ZDSR-MH E22 10 type WDKT 10T320ZDSR-MH 0 Parts Specification Screw Clamp Clamp Screw C-Ring Wrench 020 021 FTNA0306 - TW09P 025 030 FTKA0408 CHH3.5R1 CTX03510 CR03 TW15S Milling 224 Available Inserts E22
