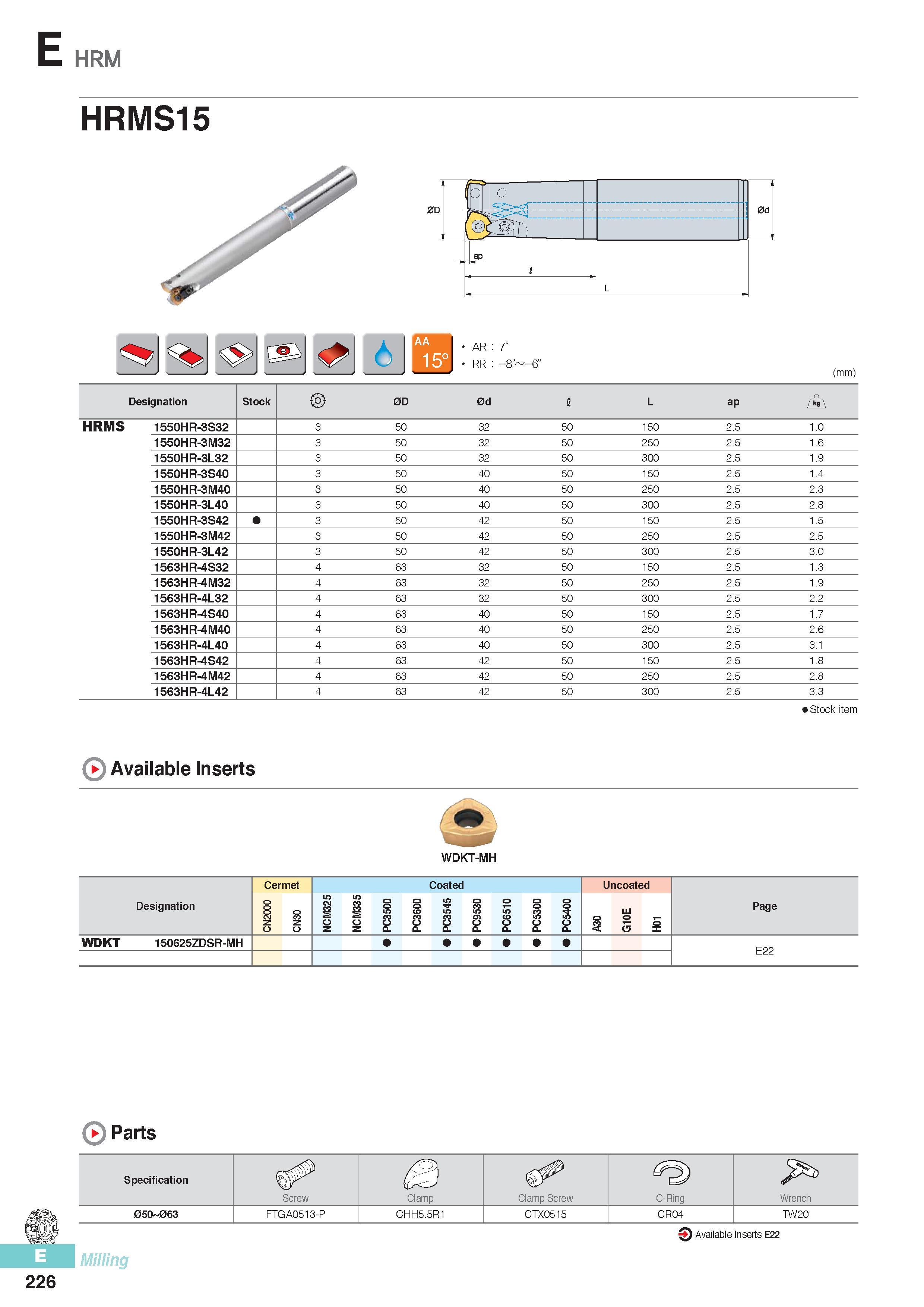

E HRM HRMS15 AR 7° RR -8° -6° (mm) Designation Stock 0D 0d I L ap HRMS 1550HR-3S32 3 50 32 50 150 2.5 1.0 1550HR-3M32 3 50 32 50 250 2.5 1.6 1550HR-3L32 3 50 32 50 300 2.5 1.9 1550HR-3S40 3 50 40 50 150 2.5 1.4 1550HR-3M40 3 50 40 50 250 2.5 2.3 1550HR-3L40 3 50 40 50 300 2.5 2.8 1550HR-3S42 3 50 42 50 150 2.5 1.5 1550HR-3M42 3 50 42 50 250 2.5 2.5 1550HR-3L42 3 50 42 50 300 2.5 3.0 1563HR-4S32 4 63 32 50 150 2.5 1.3 1563HR-4M32 4 63 32 50 250 2.5 1.9 1563HR-4L32 4 63 32 50 300 2.5 2.2 1563HR-4S40 4 63 40 50 150 2.5 1.7 1563HR-4M40 4 63 40 50 250 2.5 2.6 1563HR-4L40 4 63 40 50 300 2.5 3.1 1563HR-4S42 4 63 42 50 150 2.5 1.8 1563HR-4M42 4 63 42 50 250 2.5 2.8 1563HR-4L42 4 63 42 50 300 2.5 3.3 Stock item 0 Available Inserts WDKT-MH Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WDKT 150625ZDSR-MH E22 0 Parts Specification <3 Screw Clamp Clamp Screw C-Ring Wrench 050 063 FTGA0513-P CHH5.5R1 CTX0515 CR04 TW20 Available Inserts E22 Milling 226
