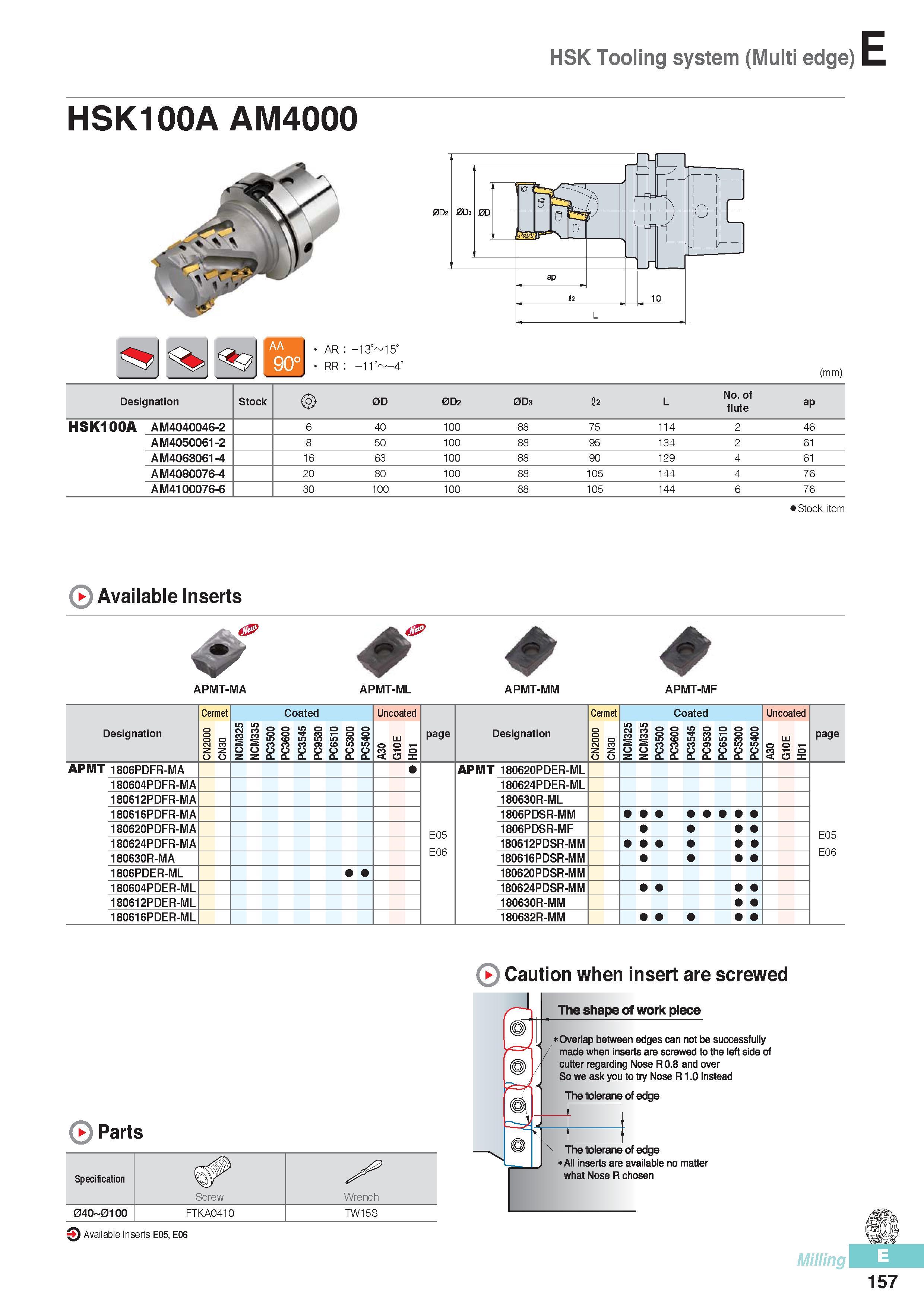

544 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.E157

Каталог KORLOY 2016 Инструмент и оснастка Стр. E157 0544 ENG Lab2u

HSK Tooling system (Multi edge) E HSK100A AM4000 AR -13° 15° RR -11° -4‘ (mm) Designation Stock 0D 0D2 0D3 12 L No. of flute ap HSK100A AM4040046-2 6 40 100 88 75 114 2 46 AM4050061-2 8 50 100 88 95 134 2 61 AM4063061-4 16 63 100 88 90 129 4 61 AM4080076-4 20 80 100 88 105 144 4 76 AM4100076-6 30 100 100 88 105 144 6 76 Stock item ( Available Inserts APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 0 5 C P 3 1 0
