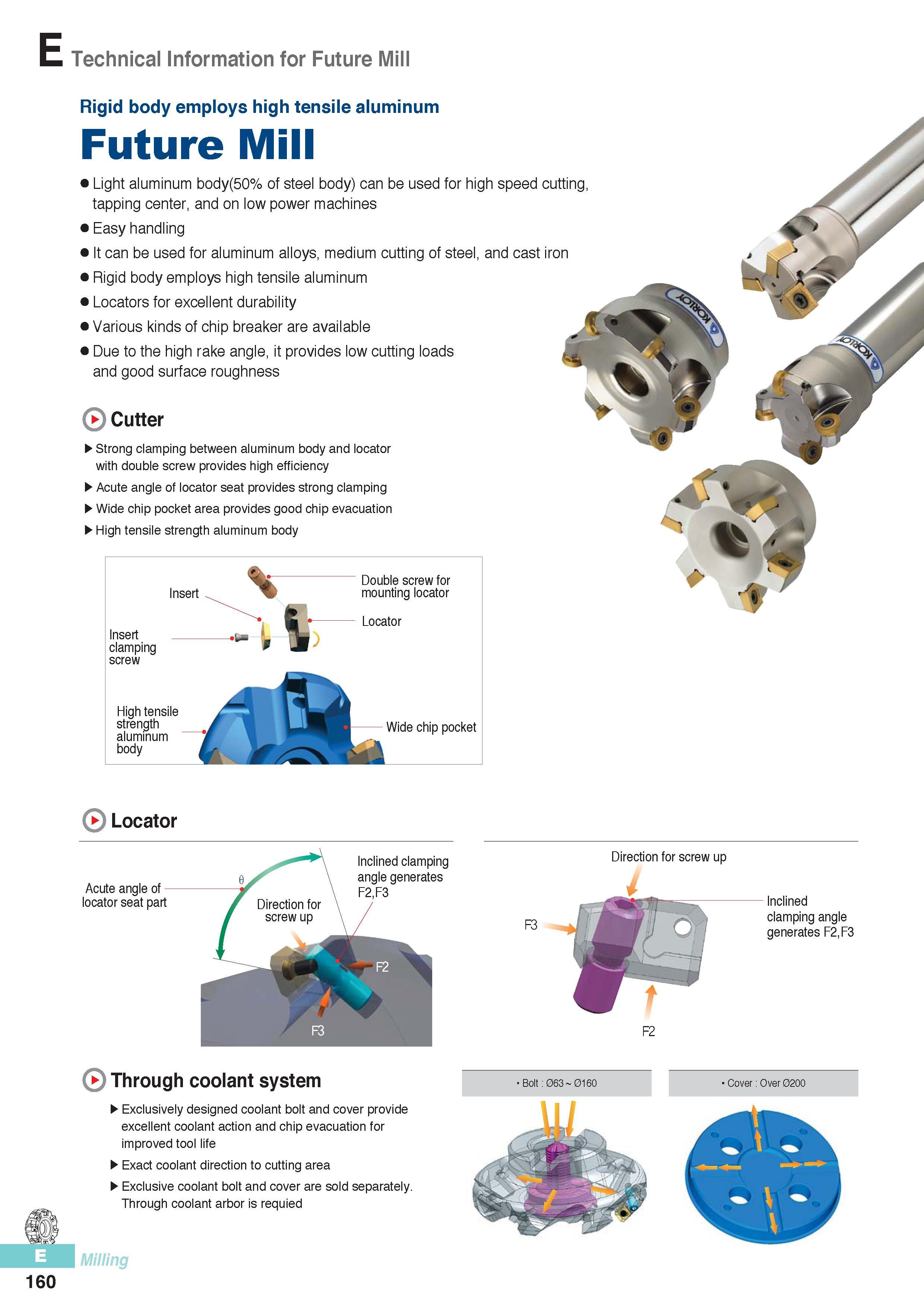

E Technical Information for Future Mill Rigid body employs high tensile aluminum Future Mill Light aluminum body(50% of steel body) can be used for high speed cutting, tapping center, and on low power machines Easy handling It can be used for aluminum alloys, medium cutting of steel, and cast iron Rigid body employs high tensile aluminum Locators for excellent durability Various kinds of chip breaker are available Due to the high rake angle, it provides low cutting loads and good surface roughness Cutter Strong clamping between aluminum body and locator with double screw provides high efficiency Acute angle of locator seat provides strong clamping Wide chip pocket area provides good chip evacuation High tensile strength aluminum body Insert Insert clamping screw High tensile strength aluminum body Double screw for mounting locator Locator Wide chip pocket Locator Acute angle of locator seat part Direction for screw up lnclined clamping angle generates F2,F3 1 F2 A F3 F3 Direction for screw up I t F2 lnclined clamping angle generates F2,F3 160 Through coolant system Exclusively designed coolant bolt and cover provide excellent coolant action and chip evacuation for improved tool life Exact coolant direction to cutting area Exclusive coolant bolt and cover are sold separately. Through coolant arbor is requied Milling Bolt:063 016O Cover: Over 0200 6
