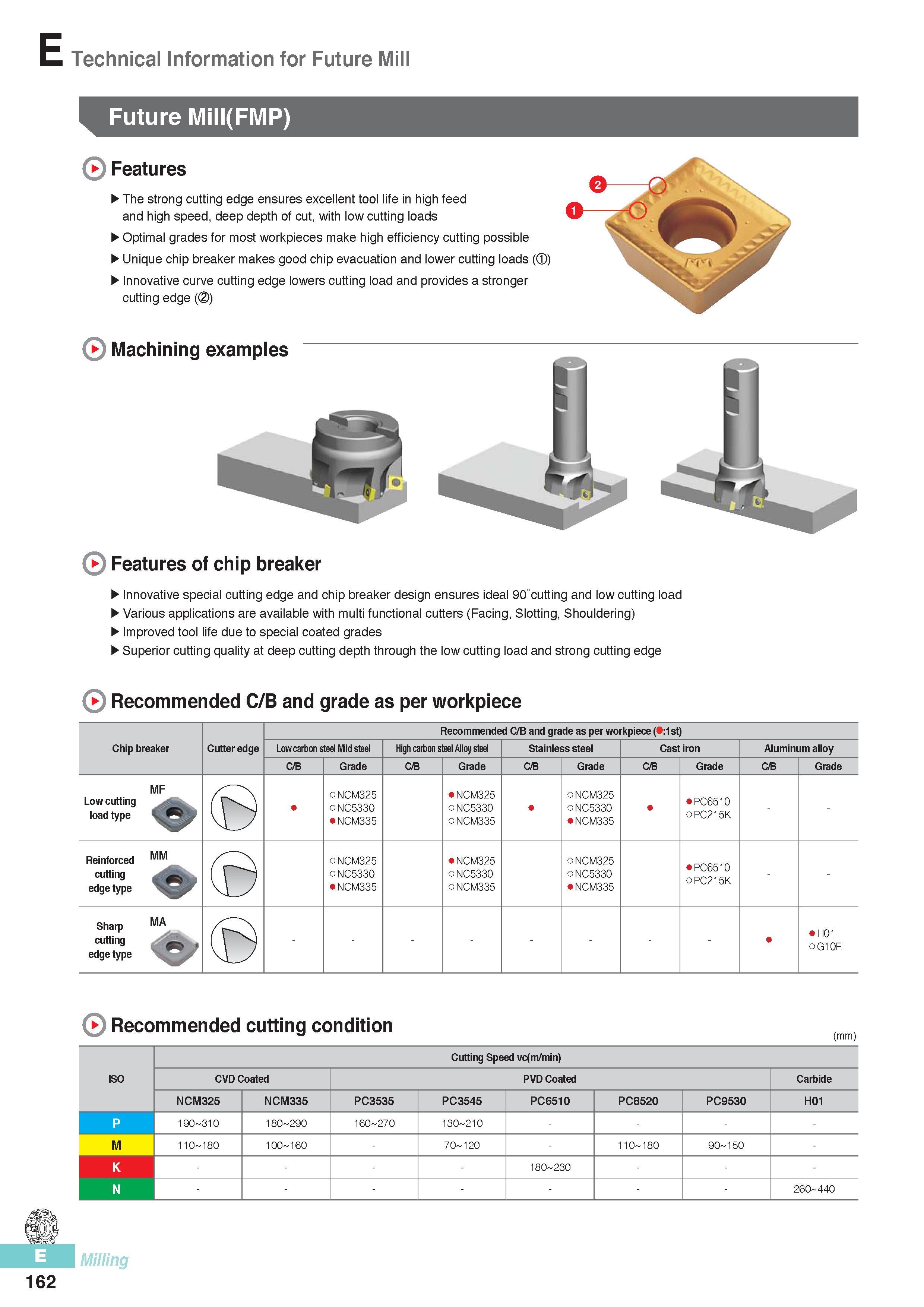

Future Mill Korloy (FMP) Features The strong cutting edge ensures excellent tool life in high feed and high speed, deep depth of cut, with low cutting loads Optimal grades for most workpieces make high efficiency cutting possible Unique chip breaker makes good chip evacuation and lower cutting loads ( ) Innovative curve cutting edge lowers cutting load and provides a stronger cutting edge ( ) Machining examples Features of chip breaker Innovative special cutting edge and chip breaker design ensures ideal 90°cutting and low cutting load Various applications are available with multi functional cutters (Facing, Slotting, Shouldering) Improved tool life due to special coated grades Superior cutting quality at deep cutting depth through the low cutting load and strong cutting edge Recommended C/B and grade as per workpiece Recommended C/B and grade as per workpiece ( :1st) Chip breaker Cutter edge Low carbon steel Mild steel High carbon steel Alloy steel Stainless steel Cast iron Aluminum alloy C/B Grade C/B Grade C/B Grade C/B Grade C/B Grade MF Low cutting load type ONCM325 ONC5330 NCM335 NCM325 ONC5330 ONCM335 ONCM325 ONC5330 NCM335 PC6510 OPC215K Reinforced MM cutting edge type ONCM325 ONC5330 NCM335 NCM325 ONC5330 ONCM335 ONCM325 ONC5330 NCM335 PC6510 OPC215K Sharp MA cutting edge type H01 OG10E Recommended cutting condition Cutting Speed vc(m/min) ISO CVD Coated PVD Coated Carbide NCM325 NCM335 PC3535 PC3545 PC6510 PC8520 PC9530 H01 P 190 310 180 290 160 270 130 210 M 110 180 100 160 - 70 120 - 110 180 90 150 - K 180 230 - N - 260 440 162 Technical Information for Future Mill
