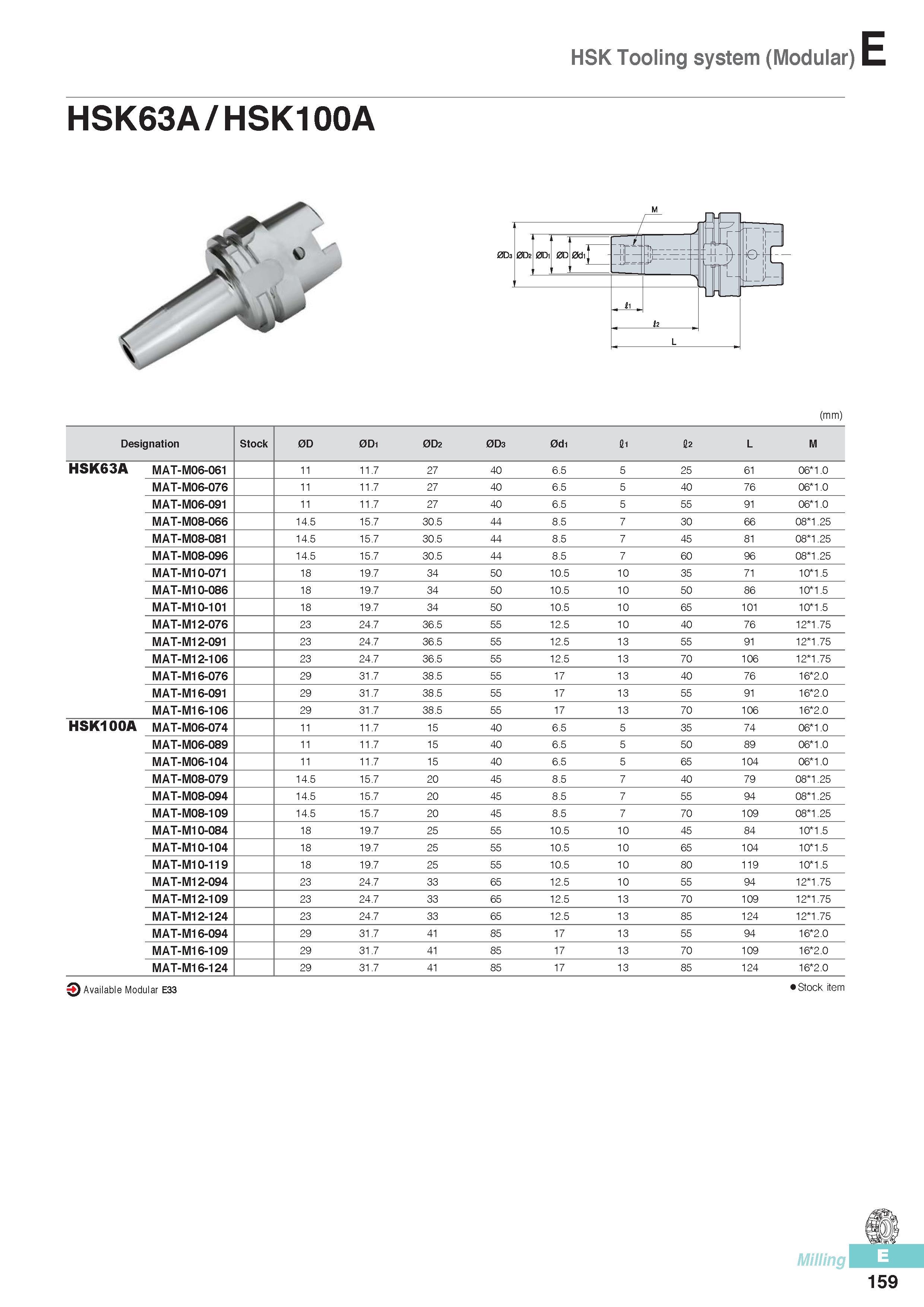

HSK Tooling system (Modular) HSK63A / HSK100A (mm) Designation Stock 0D 0D1 0D2 0D3 0d1 I fi2 L M HSK63A MAT-M06-061 11 11.7 27 40 6.5 5 25 61 06 1.0 MAT-M06-076 11 11.7 27 40 6.5 5 40 76 06 1.0 MAT-M06-091 11 11.7 27 40 6.5 5 55 91 06 1.0 MAT-M08-066 14.5 15.7 30.5 44 8.5 7 30 66 08 1.25 MAT-M08-081 14.5 15.7 30.5 44 8.5 7 45 81 08 1.25 MAT-M08-096 14.5 15.7 30.5 44 8.5 7 60 96 08 1.25 MAT-M10-071 18 19.7 34 50 10.5 10 35 71 10 1.5 MAT-M10-086 18 19.7 34 50 10.5 10 50 86 10 1.5 MAT-M10-101 18 19.7 34 50 10.5 10 65 101 10 1.5 MAT-M12-076 23 24.7 36.5 55 12.5 10 40 76 12 1.75 MAT-M12-091 23 24.7 36.5 55 12.5 13 55 91 12 1.75 MAT-M12-106 23 24.7 36.5 55 12.5 13 70 106 12 1.75 MAT-M16-076 29 31.7 38.5 55 17 13 40 76 16 2.0 MAT-M16-091 29 31.7 38.5 55 17 13 55 91 16 2.0 MAT-M16-106 29 31.7 38.5 55 17 13 70 106 16 2.0 HSK100A MAT-M06-074 11 11.7 15 40 6.5 5 35 74 06 1.0 MAT-M06-089 11 11.7 15 40 6.5 5 50 89 06 1.0 MAT-M06-104 11 11.7 15 40 6.5 5 65 104 06 1.0 MAT-M08-079 14.5 15.7 20 45 8.5 7 40 79 08 1.25 MAT-M08-094 14.5 15.7 20 45 8.5 7 55 94 08 1.25 MAT-M08-109 14.5 15.7 20 45 8.5 7 70 109 08 1.25 MAT-M10-084 18 19.7 25 55 10.5 10 45 84 10 1.5 MAT-M10-104 18 19.7 25 55 10.5 10 65 104 10 1.5 MAT-M10-119 18 19.7 25 55 10.5 10 80 119 10 1.5 MAT-M12-094 23 24.7 33 65 12.5 10 55 94 12 1.75 MAT-M12-109 23 24.7 33 65 12.5 13 70 109 12 1.75 MAT-M12-124 23 24.7 33 65 12.5 13 85 124 12 1.75 MAT-M16-094 29 31.7 41 85 17 13 55 94 16 2.0 MAT-M16-109 29 31.7 41 85 17 13 70 109 16 2.0 MAT-M16-124 29 31.7 41 85 17 13 85 124 16 2.0 Available Modular E33 ock. item 159
