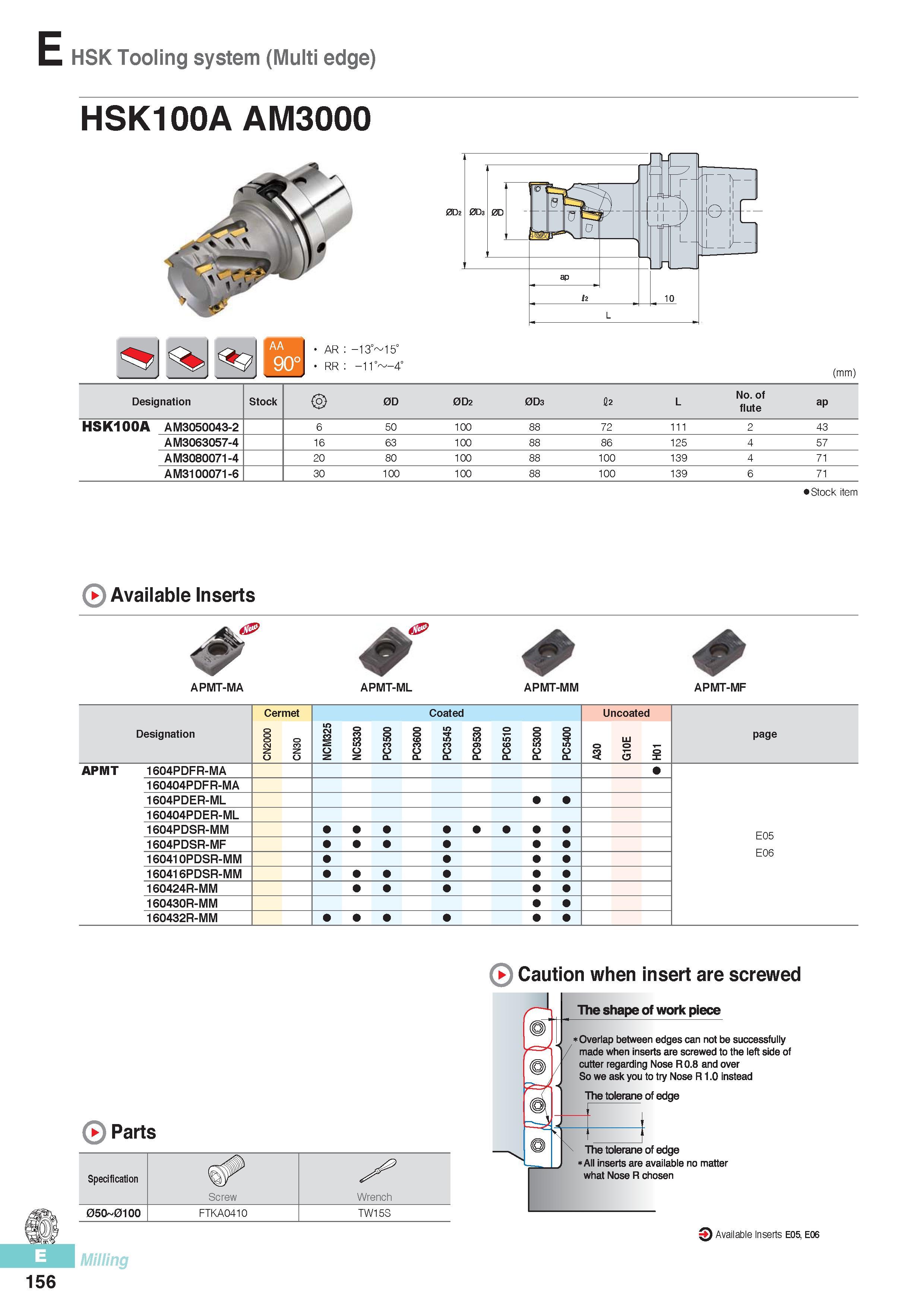

HSK Tooling system (Multi edge) HSK100A AM3000 AR -13° 15° RR -11° -4‘ (mm) Designation Stock 0D 0D2 0D3 12 L No. of flute ap HSK100A AM3050043-2 6 50 100 88 72 111 2 43 AM3063057-4 16 63 100 88 86 125 4 57 AM3080071-4 20 80 100 88 100 139 4 71 AM3100071-6 30 100 100 88 100 139 6 71 Stock item 0 Available Inserts 4T - t APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 page APMT 1604PDFR-MA E05 E06 160404PDFR-MA 1604PDER-ML 160404PDER-ML 1604PDSR-MM 1604PDSR-MF 160410PDSR-MM 160416PDSR-MM 160424R-MM 160430R-MM 160432R-MM APMT-MA >) Parts Milling 0 Caution when insert are screwed A Specification Screw Wrench 050 0100 FTKA0410 TW15S The shape of work piece Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R0.8 and over So we ask you to try Nose R1.0 Instead The tolerane of edge The tolerane of edge All inserts are available no matter what Nose R chosen 3 Available Inserts E05, E06 156
