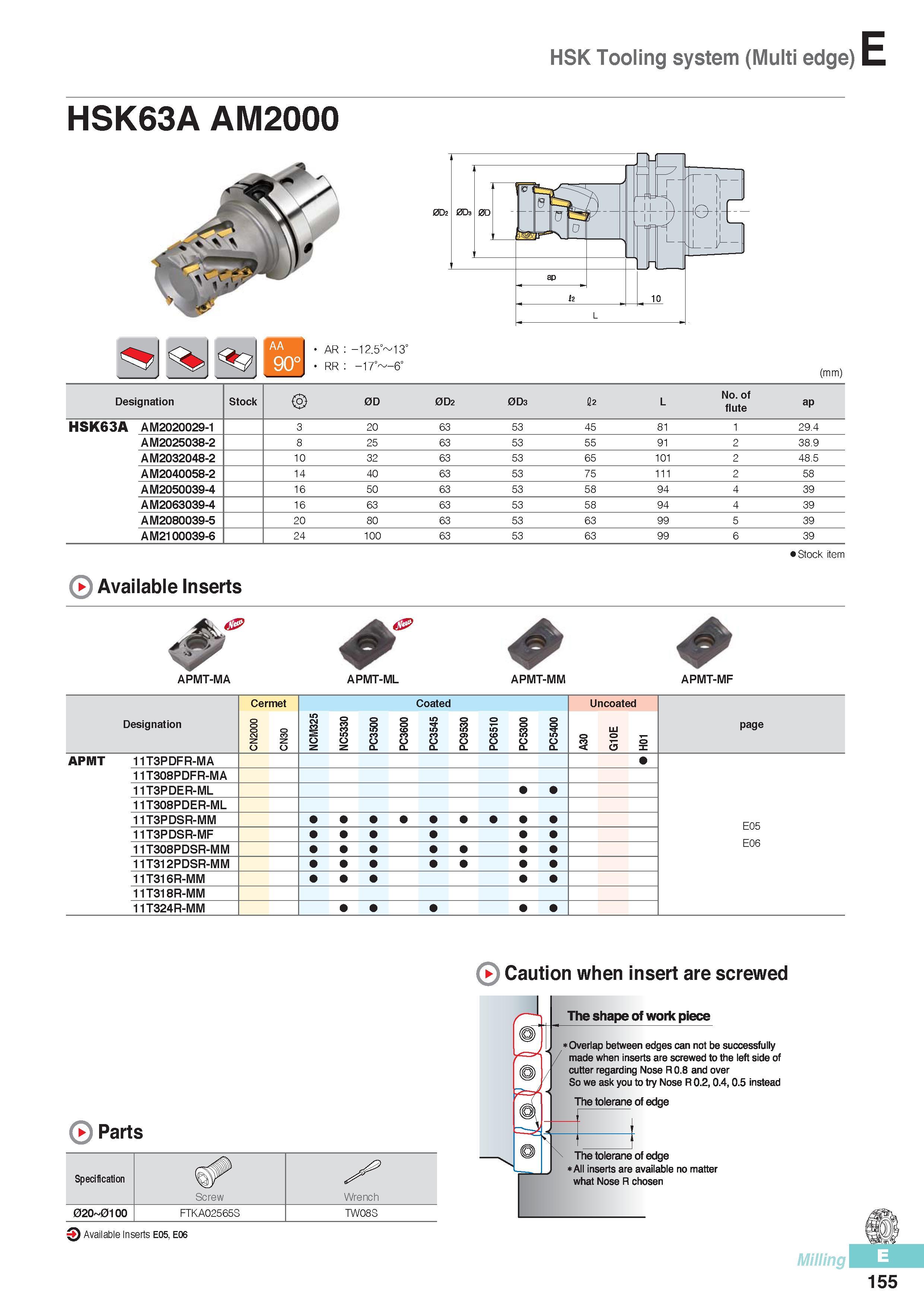

HSK Tooling system (Multi edge) HSK63A AM2000 AR -12.5° 13° RR -17° -6° (mm) Designation Stock 0D 0D2 0D3 12 L No. of flute ap HSK63A AM2020029-1 3 20 63 53 45 81 1 29.4 AM2025038-2 8 25 63 53 55 91 2 38.9 AM2032048-2 10 32 63 53 65 101 2 48.5 AM2040058-2 14 40 63 53 75 111 2 58 AM2050039-4 16 50 63 53 58 94 4 39 AM2063039-4 16 63 63 53 58 94 4 39 AM2080039-5 20 80 63 53 63 99 5 39 AM2100039-6 24 100 63 53 63 99 6 39 Stock item Available Inserts 4>' + APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X page APMT 11T3PDFR-MA E05 E06 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM Parts Specification Screw Wrench 020 0100 FTKA02565S TW08S Available Inserts E05, E06 Caution when insert are screwed The shape of work piece Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R 0.8 and over So we ask you to try Nose R 0.2,0.4,0.5 instead The tolerane of edge The tolerane of edge All inserts are available no matter what Nose R chosen Milling 155
