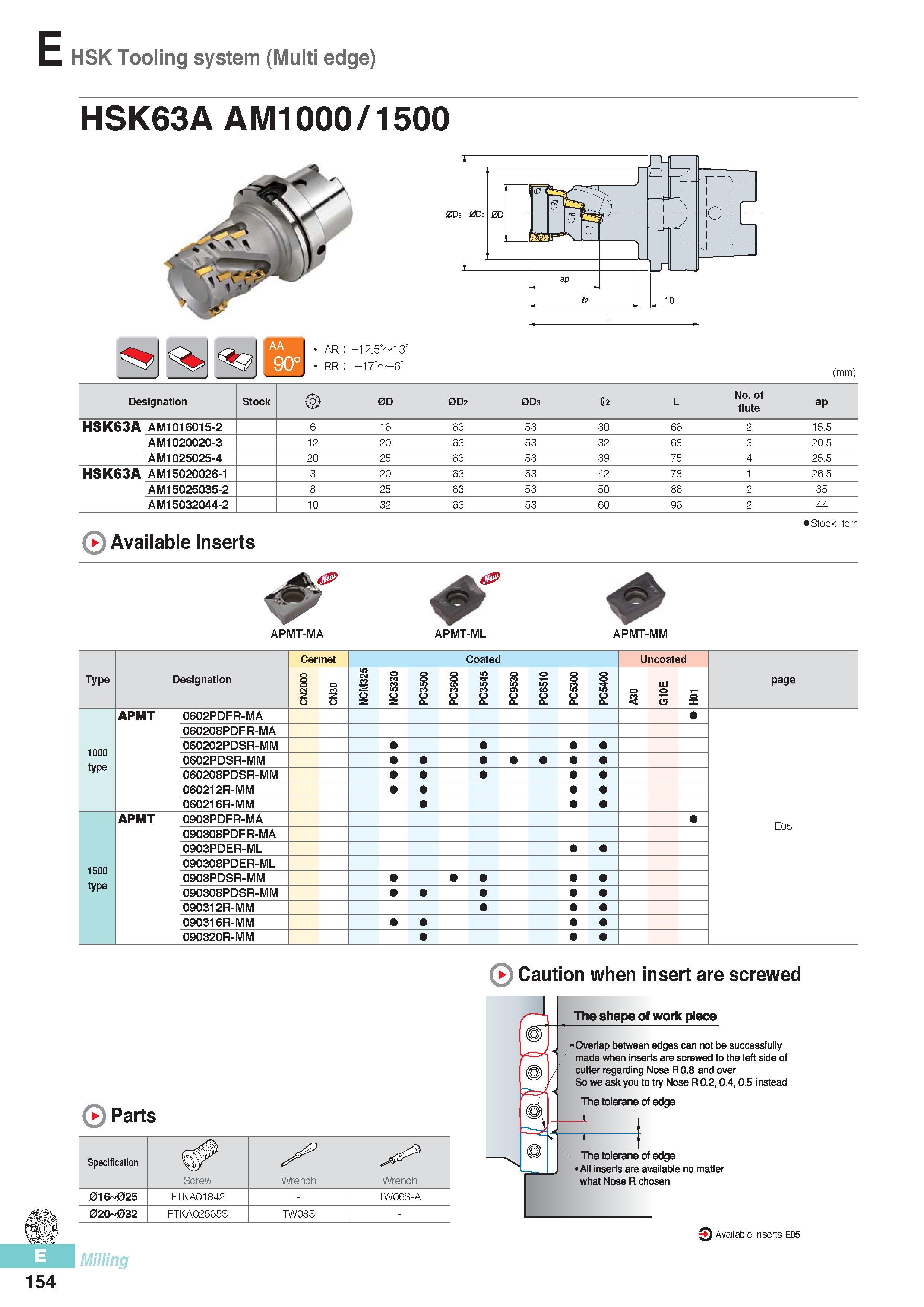

HSK Tooling system (Multi edge) HSK63A AM1000 / 1500 (mm) Designation Stock 0D 0D2 0D3 12 L No. of flute ap HSK63A AM1016015-2 6 16 63 53 30 66 2 15.5 AM1020020-3 12 20 63 53 32 68 3 20.5 AM1025025-4 20 25 63 53 39 75 4 25.5 HSK63A AM15020026-1 3 20 63 53 42 78 1 26.5 AM15025035-2 8 25 63 53 50 86 2 35 AM15032044-2 10 32 63 53 60 96 2 44 Stock item 0 Available Inserts fr APMT-ML APMT-MM Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 0 500 3 C Q. PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E 01 X page APMT 0602PDFR-MA 060208PDFR-MA 1000 type 060202PDSR-MM 0602PDSR-MM 060208PDSR-MM 060212R-MM 060216R-MM APMT 0903PDFR-MA E05 090308PDFR-MA 0903PDER-ML 1500 type 090308PDER-ML 0903PDSR-MM 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM APMT-MA 0 Parts Specification Screw Wrench Wrench 016 025 FTKA01842 - TW06S-A 020 032 FTKA02565S TW08S - Milling ( Caution when insert are screwed A The shape of work piece ‘Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R0.8 and over So we ask you to try Nose R 0.2,0.4,0.5 Instead The tolerane of edge The tolerane of edge All inserts are available no matter what Nose R chosen 3 Available Inserts E05 154
