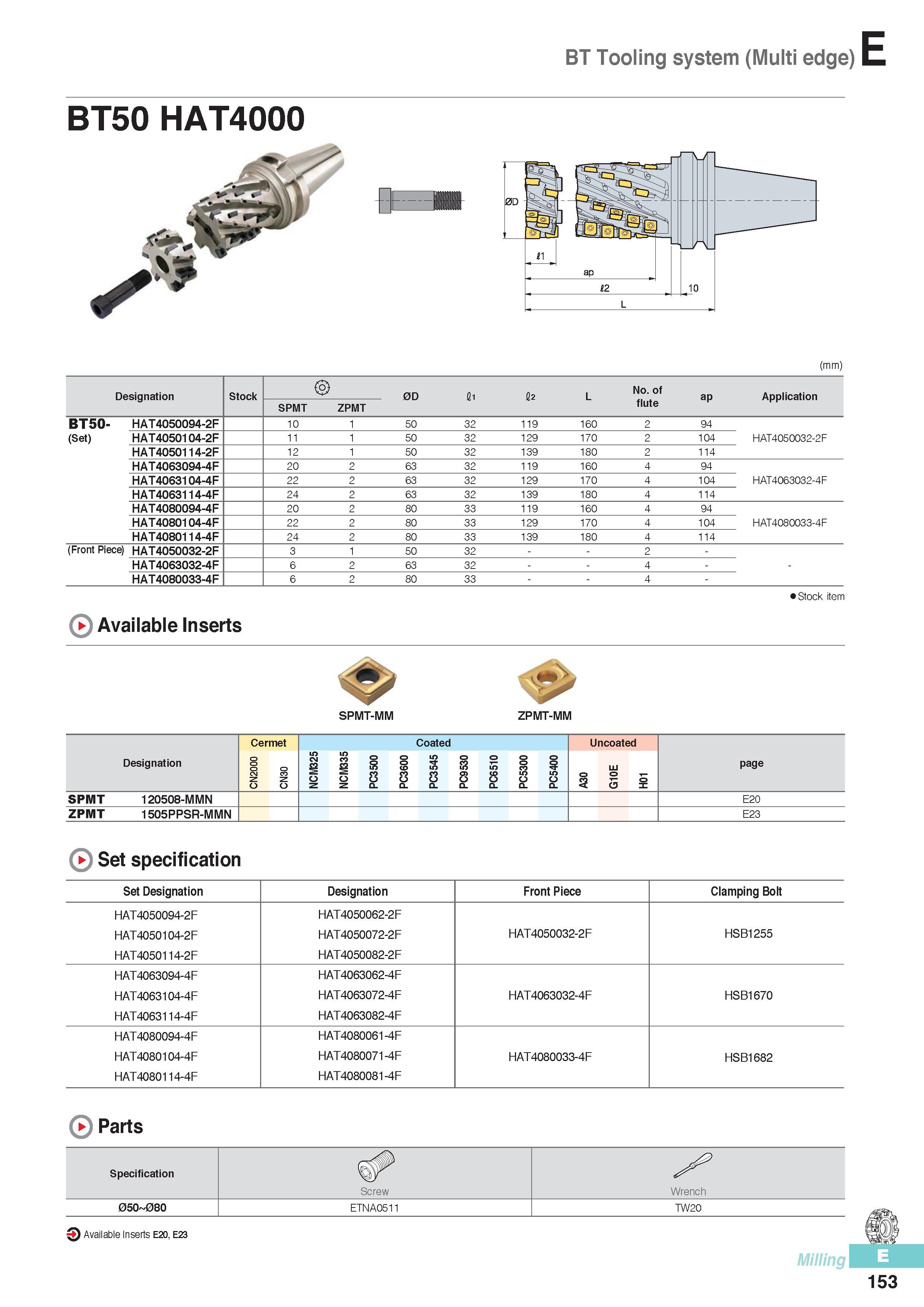

540 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.E153

Каталог KORLOY 2016 Инструмент и оснастка Стр. E153 0540 ENG Lab2u

BT Tooling system (Multi edge) BT50 HAT4000 e (mm) Designation Stock 0D fl1 12 L No. of flute ap Application SPMT ZPMT BT50- HAT4050094-2F 10 1 50 32 119 160 2 94 (Set) HAT4050104-2F 11 1 50 32 129 170 2 104 HAT4050032-2F HAT4050114-2F 12 1 50 32 139 180 2 114 HAT4063094-4F 20 2 63 32 119 160 4 94 HAT4063104-4F 22 2 63 32 129 170 4 104 HAT4063032-4F HAT4063114-4F 24 2 63 32 139 180 4 114 HAT4080094-4F 20 2 80 33 119 160 4 94 HAT4080104-4F 22 2 80 33 129 170 4 104 HAT4080033-4F HAT4080114-4F 24 2 80 33 139 180 4 114 (Front Piece) HAT4050032-2F 3 1 50 32 2 HAT4063032-4F 6 2 63 32 4 - HAT4080033-4F 6 2 80 33 4 Available Inserts Stock item SPMT-MM ZPMT-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 page SPMT 120508-MMN E20 ZPMT 1505PPSR-MMN E23 Set specification Set Designation Designation Front Piece Clamping Bolt HAT4050094-2F HAT4050104-2F HAT4050114-2F HAT4050062-2F HAT4050072-2F HAT4050082-2F HAT4050032-2F HSB1255 HAT4063094-4F HAT4063104-4F HAT4063114-4F HAT4063062-4F HAT4063072-4F HAT4063082-4F HAT4063032-4F HSB1670 HAT4080094-4F HAT4080104-4F HAT4080114-4F HAT4080061-4F HAT4080071-4F HAT4080081-4F HAT4080033-4F HSB1682 Specification Screw Wrench 050 080 ETNA0511 TW20 Available Inserts E20, E23 Milling 153
