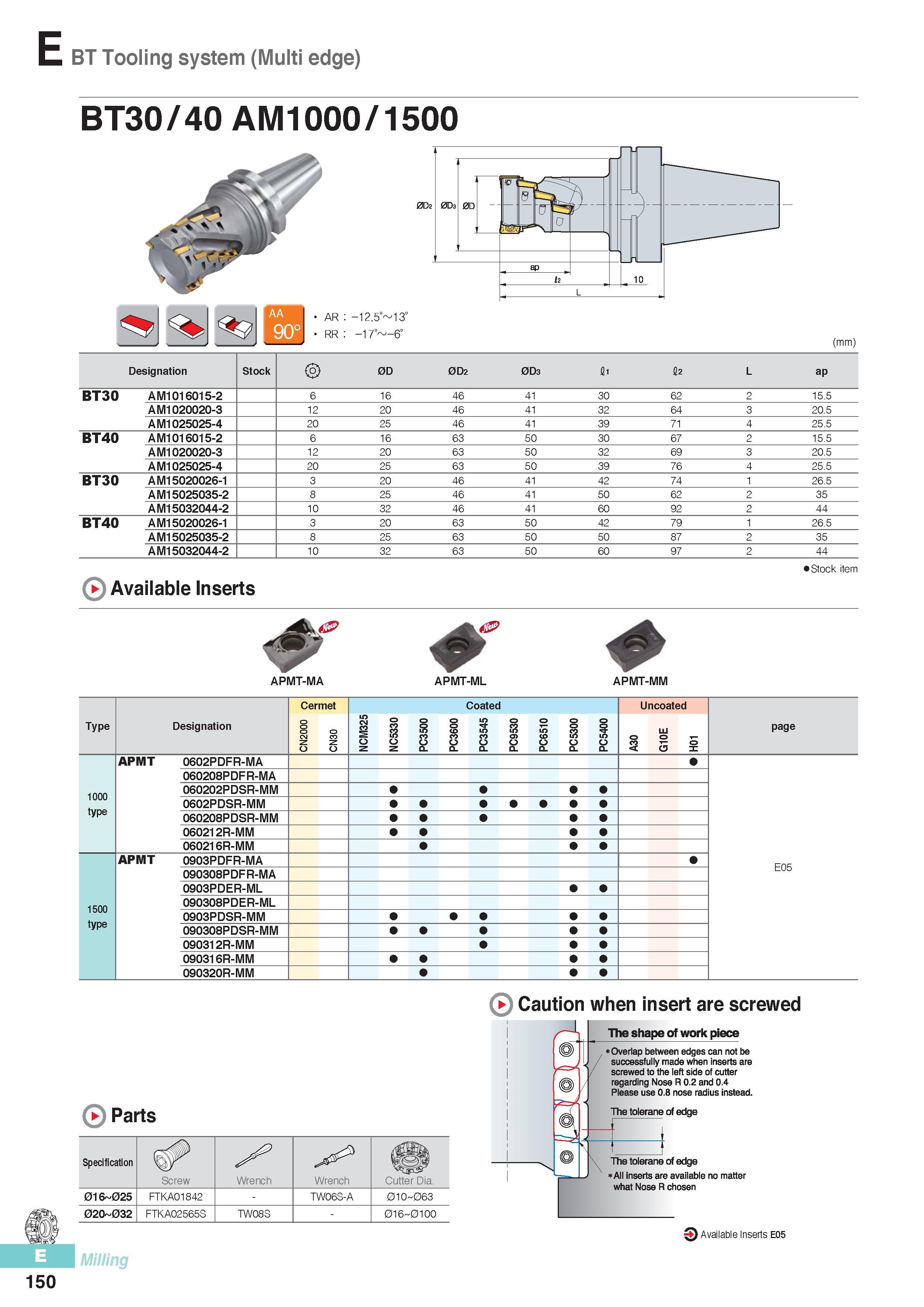

BT Tooling system (Multi edge) BT30 /40 AM1000 / 1500 AR -12.5° 13° RR -17° -6° (mm) Designation Stock 0D 0D2 0D3 fli 12 L ap BT30 AM1016015-2 6 16 46 41 30 62 2 15.5 AM1020020-3 12 20 46 41 32 64 3 20.5 AM1025025-4 20 25 46 41 39 71 4 25.5 BT40 AM1016015-2 6 16 63 50 30 67 2 15.5 AM1020020-3 12 20 63 50 32 69 3 20.5 AM1025025-4 20 25 63 50 39 76 4 25.5 BT30 AM15020026-1 3 20 46 41 42 74 1 26.5 AM15025035-2 8 25 46 41 50 62 2 35 AM15032044-2 10 32 46 41 60 92 2 44 BT40 AM15020026-1 3 20 63 50 42 79 1 26.5 AM15025035-2 8 25 63 50 50 87 2 35 AM15032044-2 10 32 63 50 60 97 2 44 Available Inserts Stock item w APMT-MA APMT-ML APMT-MM Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 0 500 3 C Q. PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E 01 X page APMT 0602PDFR-MA 060208PDFR-MA 1000 type 060202PDSR-MM 0602PDSR-MM 060208PDSR-MM 060212R-MM 060216R-MM APMT 0903PDFR-MA E05 090308PDFR-MA 0903PDER-ML 1500 type 090308PDER-ML 0903PDSR-MM 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM 0 Caution when insert are screwed r\ The shape of wo k piece Parts Specification Screw Wrench Wrench Cutter Dia. 016 025 FTKA01842 - TW06S-A 010 063 020 032 FTKA02565S TW08S - 016 0100 Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R 0.2 and 0.4 Please use 0.8 nose radius instead. The tolerane of edge The tolerane of edge = All inserts are available no matter what Nose R chosen Available Inserts E05 Milling 150
