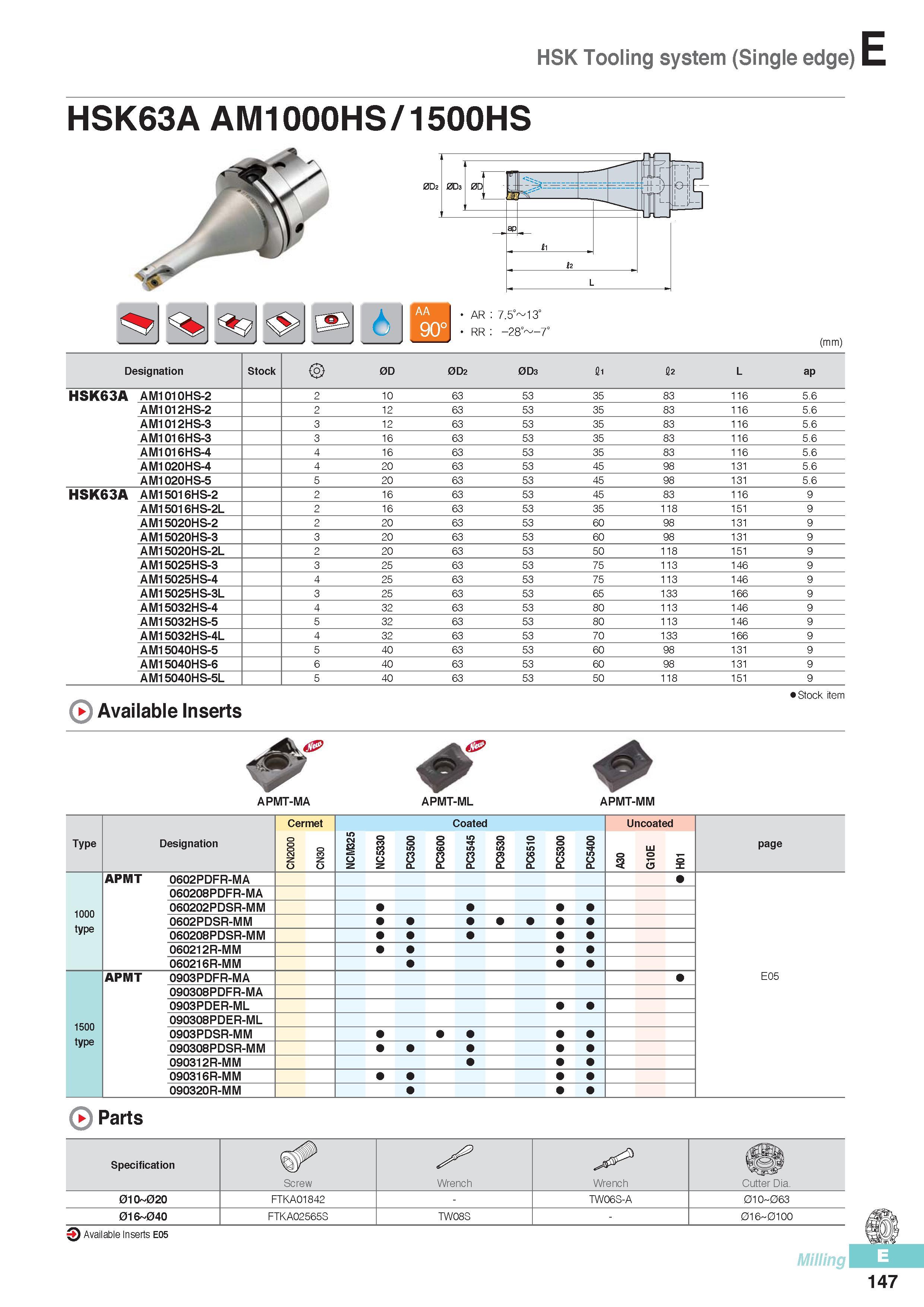

HSK Tooling system (Single edge) HSK63A AM1000HS/1500HS AR 7.5° 13‘ RR -28° -7° (mm) Designation Stock 0D 0D2 0D3 fl1 fi2 L ap HSK63A AM1010HS-2 2 10 63 53 35 83 116 5.6 AM1012HS-2 2 12 63 53 35 83 116 5.6 AM1012HS-3 3 12 63 53 35 83 116 5.6 AM1016HS-3 3 16 63 53 35 83 116 5.6 AM1016HS-4 4 16 63 53 35 83 116 5.6 AM1020HS-4 4 20 63 53 45 98 131 5.6 AM1020HS-5 5 20 63 53 45 98 131 5.6 HSK63A AM15016HS-2 2 16 63 53 45 83 116 9 AM15016HS-2L 2 16 63 53 35 118 151 9 AM15020HS-2 2 20 63 53 60 98 131 9 AM15020HS-3 3 20 63 53 60 98 131 9 AM15020HS-2L 2 20 63 53 50 118 151 9 AM15025HS-3 3 25 63 53 75 113 146 9 AM15025HS-4 4 25 63 53 75 113 146 9 AM15025HS-3L 3 25 63 53 65 133 166 9 AM15032HS-4 4 32 63 53 80 113 146 9 AM15032HS-5 5 32 63 53 80 113 146 9 AM15032HS-4L 4 32 63 53 70 133 166 9 AM15040HS-5 5 40 63 53 60 98 131 9 AM15040HS-6 6 40 63 53 60 98 131 9 AM15040HS-5L 5 40 63 53 50 118 151 9 ( Available Inserts Stock item APMT-MA APMT-ML APMT-MM Type Designation Cermet Coated 31 m w o n 33565553 CM C53 C35 C36 C35 C95 C65 C53 Uncoated page APMT 0602PDFR-MA 060208PDFR-MA 1000 type 060202PDSR-MM 0602PDSR-MM 060208PDSR-MM 060212R-MM 060216R-MM APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 1500 type 090308PDER-ML 0903PDSR-MM 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM E05 ( Parts Specification ff l Screw Wrench Wrench Cutter Dia. 010 020 FTKA01842 - TW06S-A 010 063 016 040 FTKA02565S TW08S - 016 0100 Available Inserts E05 Milling 147
