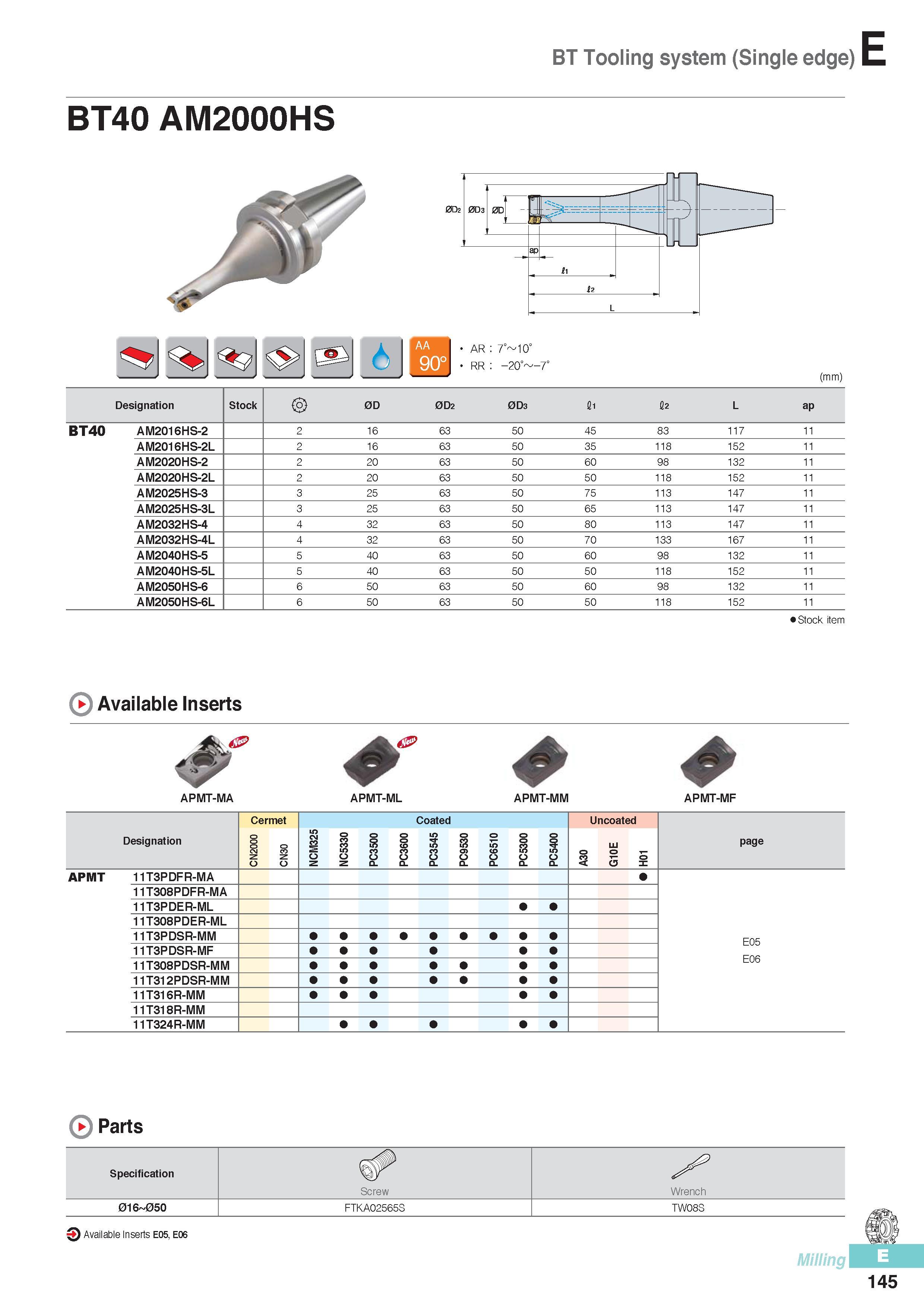

BT Tooling system (Single edge) BT40 AM2000HS AR 7° 10‘ RR -20° (mm) Designation Stock 0D 0D2 0D3 fli fi2 L ap BT40 AM2016HS-2 2 16 63 50 45 83 117 11 AM2016HS-2L 2 16 63 50 35 118 152 11 AM2020HS-2 2 20 63 50 60 98 132 11 AM2020HS-2L 2 20 63 50 50 118 152 11 AM2025HS-3 3 25 63 50 75 113 147 11 AM2025HS-3L 3 25 63 50 65 113 147 11 AM2032HS-4 4 32 63 50 80 113 147 11 AM2032HS-4L 4 32 63 50 70 133 167 11 AM2040HS-5 5 40 63 50 60 98 132 11 AM2040HS-5L 5 40 63 50 50 118 152 11 AM2050HS-6 6 50 63 50 60 98 132 11 AM2050HS-6L 6 50 63 50 50 118 152 11 Stock item Available Inserts & APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X page APMT 11T3PDFR-MA E05 E06 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM > Parts Specification Screw Wrench 016 050 FTKA02565S TW08S Available Inserts E05, E06 Milling 145
