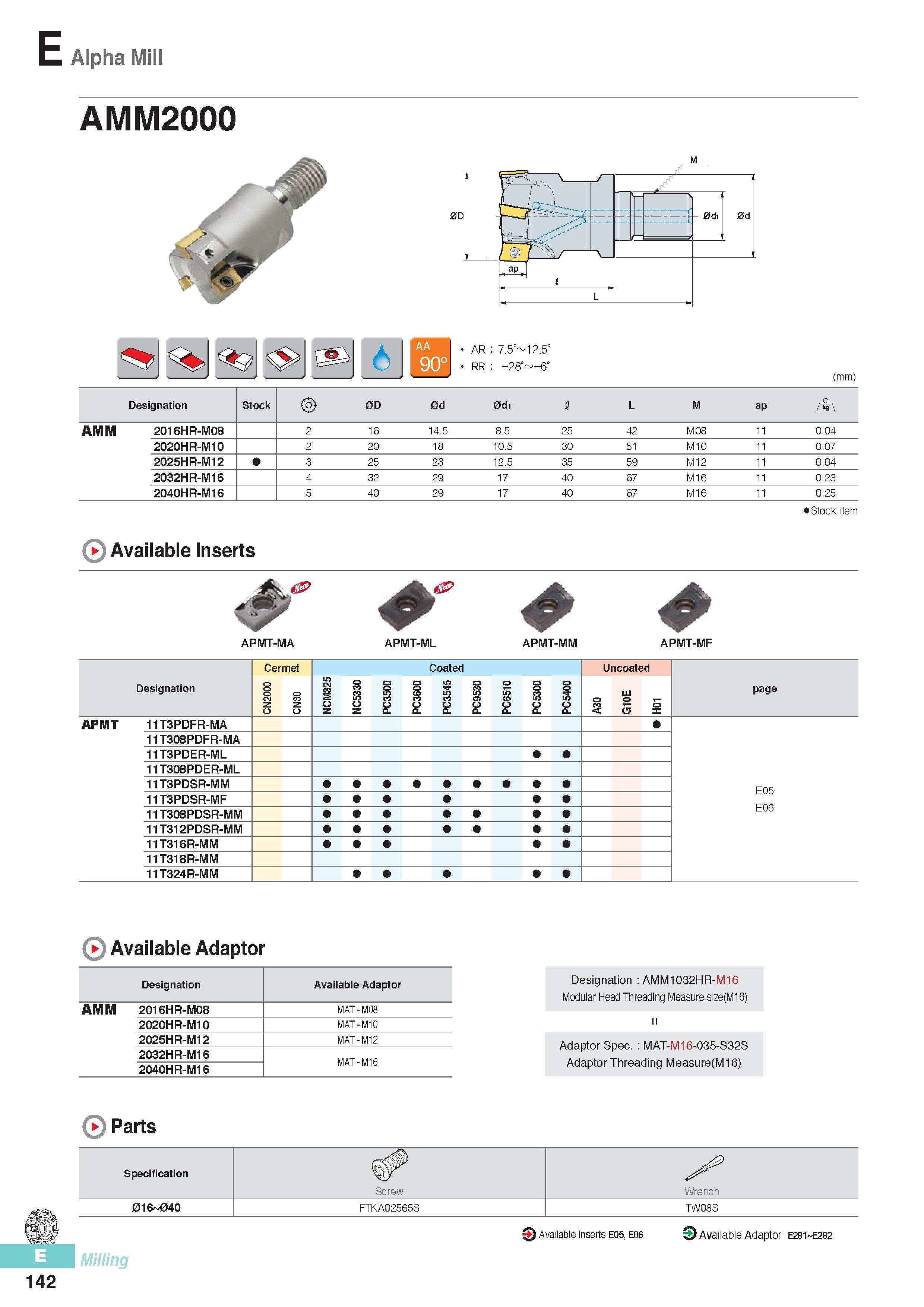

E Alpha Mill AMM2000 AR 7.5° 12.5‘ RR -28° -6° (mm) Designation Stock 0D 0d 0di I L M ap AMM 2016HR-M08 2 16 14.5 8.5 25 42 M08 11 0.04 2020HR-M10 2 20 18 10.5 30 51 M10 11 0.07 2025HR-M12 3 25 23 12.5 35 59 M12 11 0.04 2032HR-M16 4 32 29 17 40 67 M16 11 0.23 2040HR-M16 5 40 29 17 40 67 M16 11 0.25 Stock item Available Inserts APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X page APMT 11T3PDFR-MA E05 E06 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM Available Adaptor Designation Available Adaptor AMM 2016HR-M08 MAT - M08 2020HR-M10 MAT - M10 2025HR-M12 MAT - M12 2032HR-M16 MAT - M16 2040HR-M16 Designation AMM1032HR-M16 Modular Head Threading Measure size(M16) Adaptor Spec. MAT-M16-035-S32S Adaptor Threading Measure(M16) Parts Specification Screw Wrench 016 040 FTKA02565S TW08S Q Available Inserts E05, E06 Q Available Adaptor E281 E282 Milling 142
