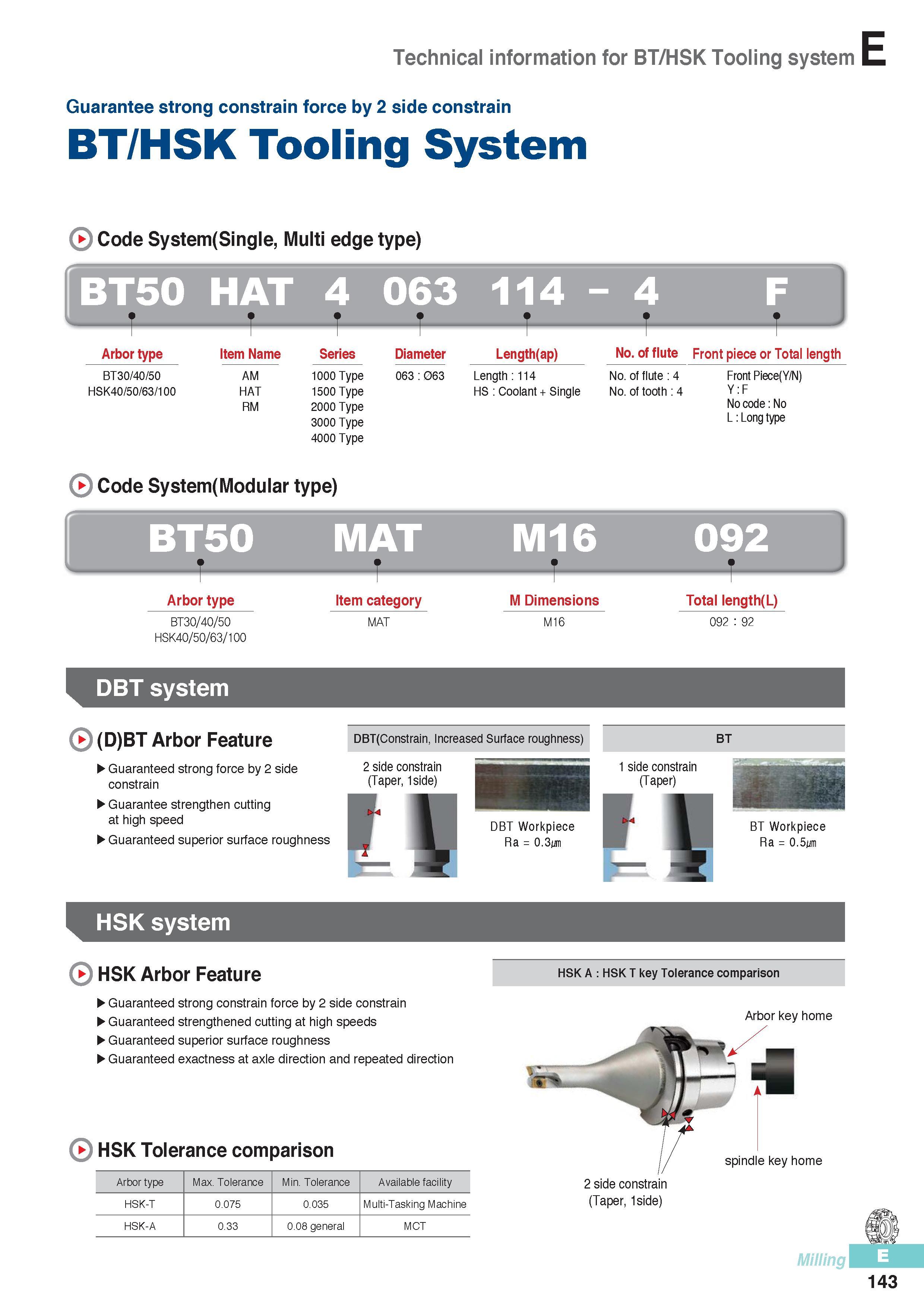

Technical information for BT/HSK Tooling system Guarantee strong constrain force by 2 side constrain BT/HSK Tooling System E Code System(Single, Multi edge type) BT50 HAT 4 063 114 - 4 F Arbor type Item Name Series Diameter Length(ap) No. of flute Front piece or Total length BT30/40/50 AM 1000 Type 063 063 Length 114 No. of flute 4 Front Piece(Y/N) HSK40/50/63/100 HAT 1500 Type RM 2000 Type 3000 Type 4000 Type Code System(Modular type) HS Coolant + Single No. of tooth 4 Y F No code: No L:Long type BT50 L MAT M16 092 Arbor type Item category M Dimensions Total length(L) BT30/40/50 HSK40/50/63/100 MAT M16 092 92 DBT system (D)BT Arbor Feature Guaranteed strong force by 2 side constrain Guarantee strengthen cutting at high speed Guaranteed superior surface roughness HSK system DBT(Constrain, Increased Surface roughness) BT 2 side constrain (Taper, 1side) u DBT Workpiece Ra = 0.3jjih 1 side constrain (Taper) BT Workpiece Ra = 0.5jjm HSK Arbor Feature Guaranteed strong constrain force by 2 side constrain Guaranteed strengthened cutting at high speeds Guaranteed superior surface roughness Guaranteed exactness at axle direction and repeated direction HSK Tolerance comparison HSK A HSK T key Tolerance comparison Arbor key home Arbor type Max. Tolerance Min. Tolerance Available facility HSK-T 0.075 0.035 Multi-Tasking Machine HSK-A 0.33 0.08 general MCT spindle key home 2 side constrain (Taper, 1side) Milling 143
